BLANCO 521474 Basket Flexon II 60/4
Product range code
455272
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
BLANCO FLEXON II 60/4
Technical parameters:
A cabinet with a drawer is required.

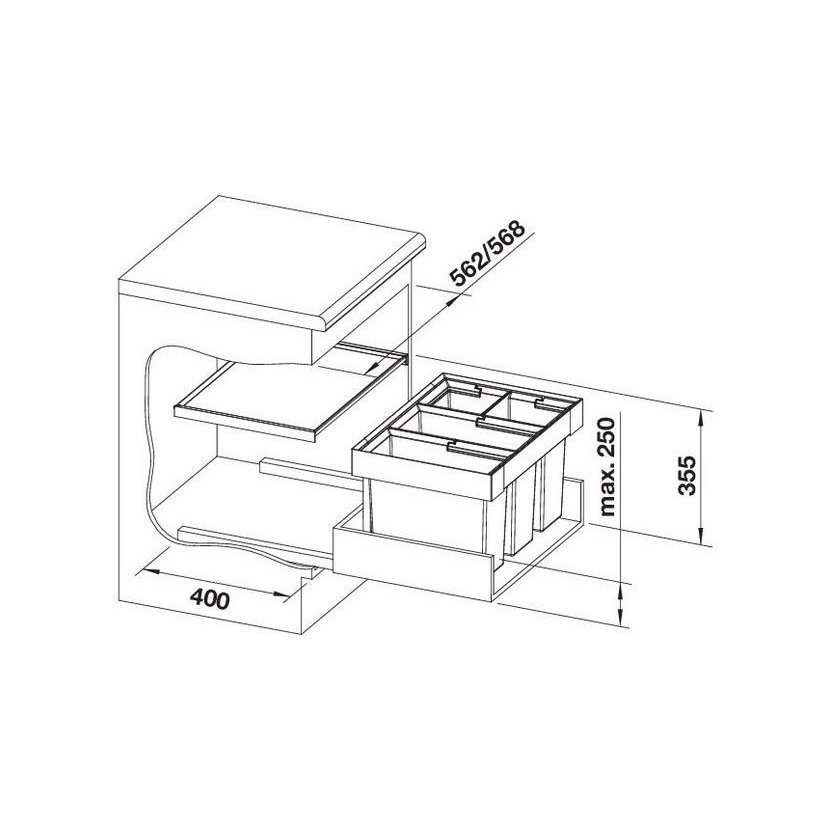

- built-in height 355 mm from the bottom of the drawer, built-in depth 400 mm
- maximum height of the frame 250 mm from the bottom of the drawer
- also suitable for cabinets with cassette doors with a frame width of 90 mm or more
- when planning, it is necessary to take into account how high the built-in waste is, the height of the bottom of the drawer, the depth of the installation of the sink with the drain fitting and the resulting minimum dimension for the lower cabinet
- the minimum recommended height of the plinth for the installation of Movex: 100 mm
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Cabinet width (mm) | 600 |
| Number of baskets | 4 |
