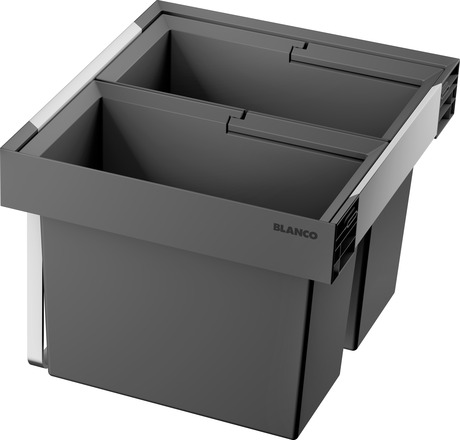

BLANCO 526641 Basket FLEXON II LOW 60/2
Product range code
477516
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
BLANCO 526641 FLEXON II LOW 60/2
lowered version under the worktop

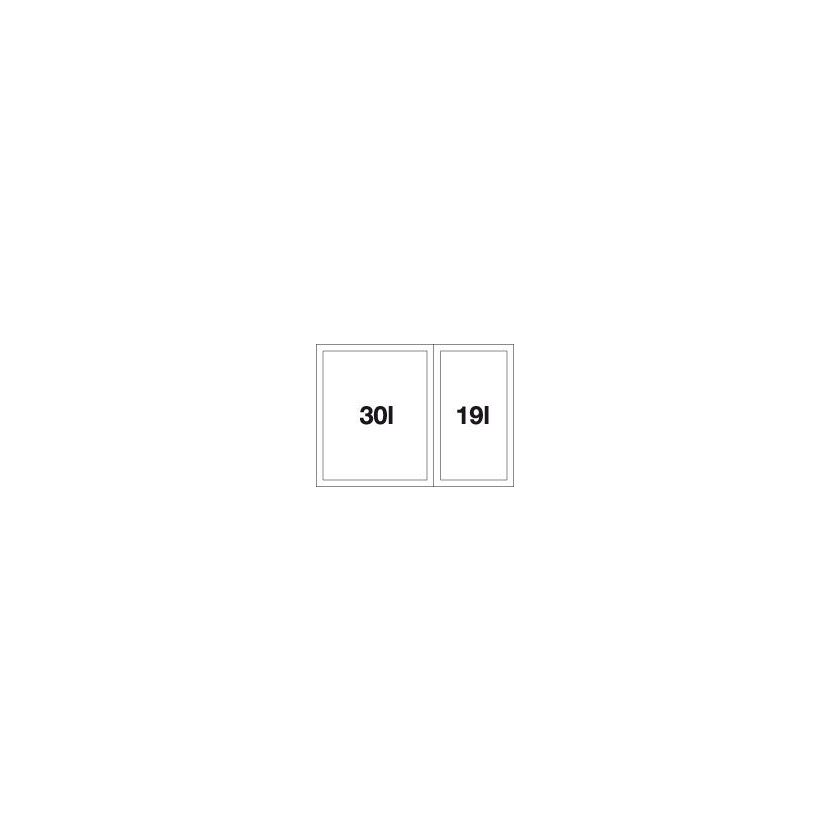

container volume 1x30 l, 1x19 l
Technical parameters:
A cabinet with a drawer is required.

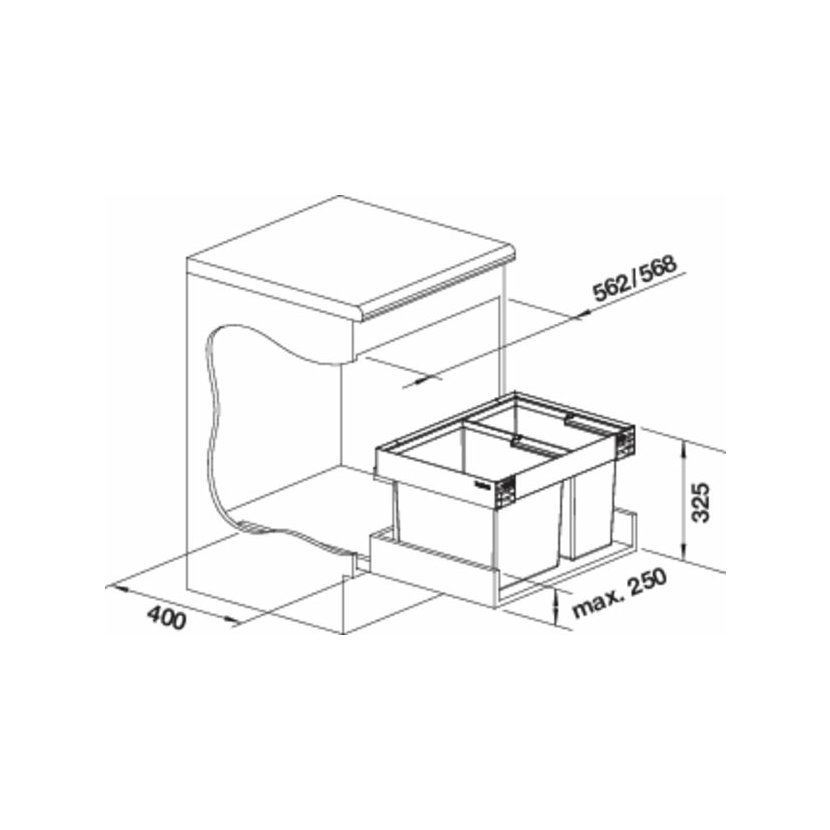

- height for installation 330mm (height of baskets 325mm), installation depth 400mm.
- Maximum height of the side of the drawer 250mm.
- Possibility of installation in lower cabinets with cassettes door from the length of the frame 90mm.
- When planning the height of the built-in waste, take into account the height of the base of the drawer cabinet, the built-in depth of the sink with the drain set and the resulting lowest dimension of the lower cabinet.
- The lowest recommended plinth height for installing the Movex: 100mm.
Parameters
| Parameter | Value |
|---|---|
| Cabinet width (mm) | 600 |
| Number of baskets | 2 |
