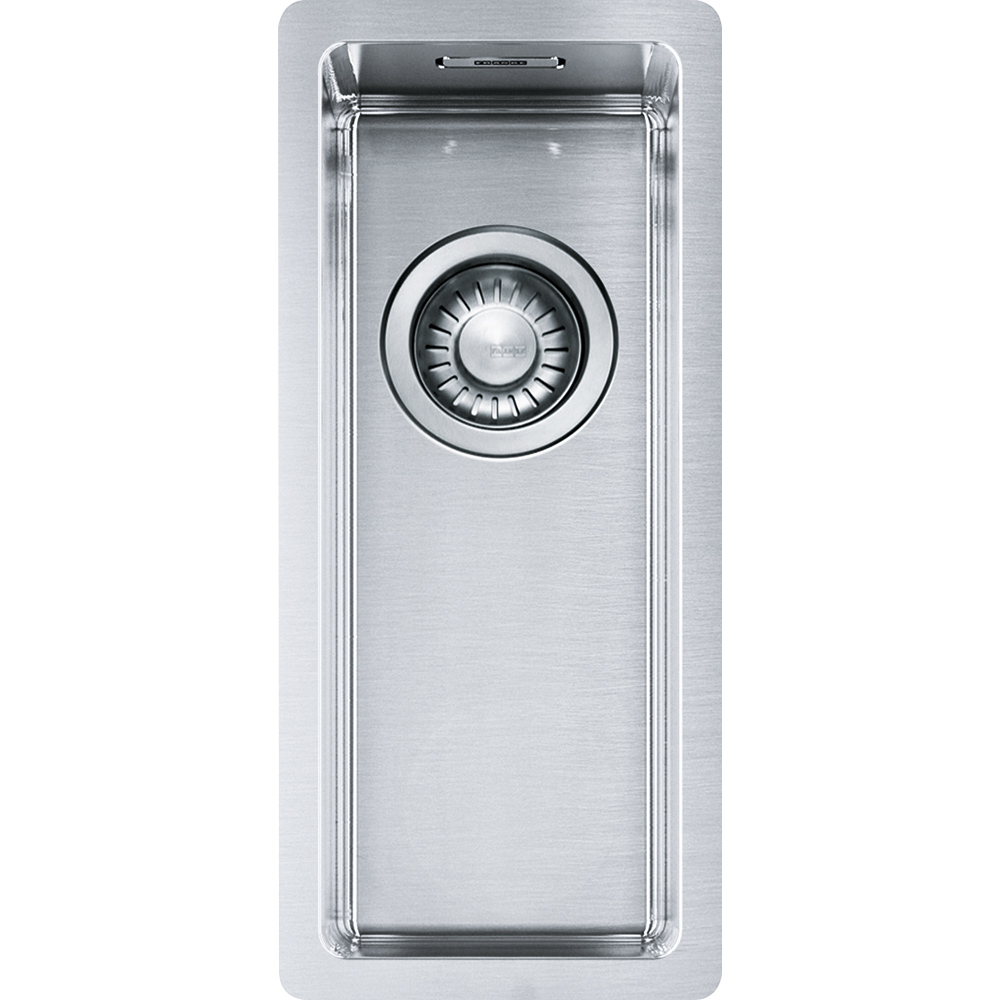

FRANKE Sink BXX 210/110-16 200 x 450mm stainless steel
Product range code
462968
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Franke Box BXX 210/110-16 Stainless
Lower cabinet from 300 mm

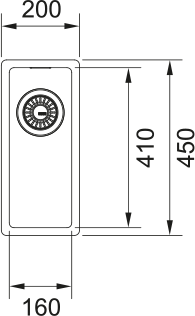

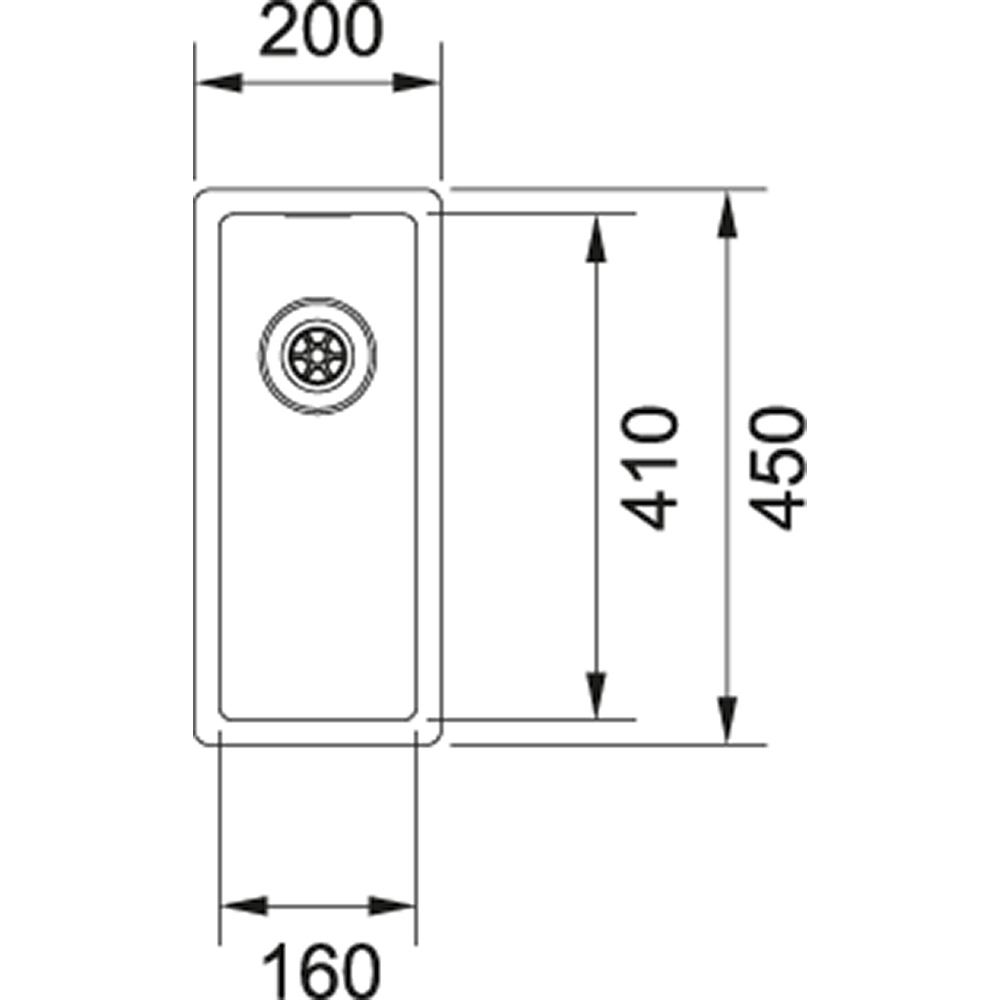

Dimensions: 200 × 450 mm
Flat edge - Cutout: 170 × 420 mm (Radius 10 mm)
Flush mounting - Cutout: 170 × 420 mm (Radius 10 mm) 1.3 mm deep groove milling around the cut-out (202 × 452 mm, R 14 mm)
Bottom mounting - Cut-out : 160 × 410 mm (Radius 12 mm)
Sink: 160 × 410 × 140 mm
Radius 12 mm
Price includes:
Strainer valve 3 1/2" with overflow
The sink is without a siphon
Fast-Fix mounting
Concealed overflow
127.0371.512
Parameters
| Parameter | Value |
|---|---|
| Battery set | No |
| Cabinet width (mm) | 300 |
| Colour | Stainless steel |
| Draining board | Without draining board |
| Side bowl | No |
| Sink installation | Levelled assembly; Lower assembly |
| Sink shape | Angular |
