FRANKE Sink BXX 260/160-34-16/7 560 x 450 stainless steel drain left
Product range code
462969
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Franke Box BXX 260/160-34-16/7 Stainless
Bottom cabinet from 600 mm

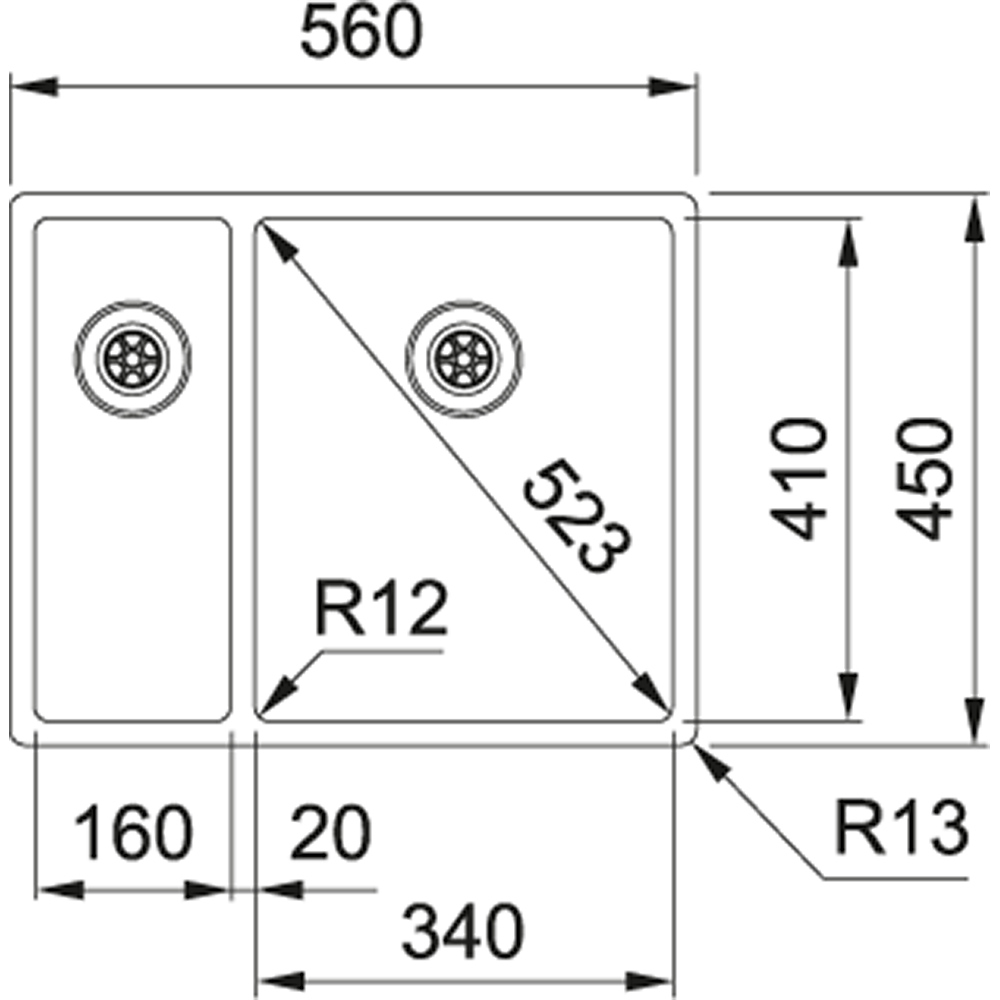

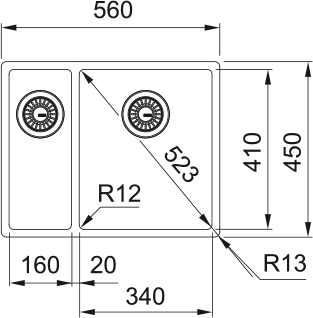

Dimensions: 560 × 450 mm
Flat edge - Cutout: 530 × 420 mm (Radius 10 mm)
Flush mounting - Cutout: 530 × 420 mm (Radius 10 mm) Milling a groove around the entire circumference of the cut-out with a depth of 1.3 mm (562 × 452 mm, R 14 mm)
Bottom Mount - Cutout: 520 x 410 mm (Radius 12 mm)
Sinks: 160 x 410 x 140 mm
340 x 410 x 200 mm
Radius 12 mm
Price includes:< br> 2 × Strainer valve 3 1/2" with overflow
Space-saving siphon 6/4" with branch for dishwasher
Only model with drip tray on the left
Mounting with Fast-Fix clips
Hidden ambush
127.0369.916
Parameters
| Parameter | Value |
|---|---|
| Battery set | No |
| Cabinet width (mm) | 600 |
| Colour | Stainless steel |
| Draining board | Without draining board |
| Side bowl | Yes |
| Sink installation | Levelled assembly; Lower assembly |
| Sink shape | Angular |
