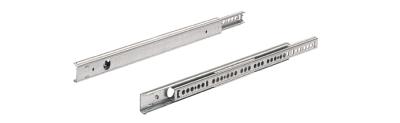

HETTICH 25156 KA 270/350-550 ball slide
Product range code
104906
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Partial ball extension for wooden drawers, groove 27/10 mm, load capacity 12 kg. With a stopper and a safety device against falling out. For drawers with a slotted, half-slotted or butt bottom. Guide rails and ball cage form a complete indivisible unit. Galvanized steel.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 550 |
| Load capacity (kg) | 12 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Partial extension |
