HETTICH 41374 KA 5740 for sliding door 450mm/14kg
A set of fittings with a catch, allowing the inserted doors to be inserted into the body along the side after opening. The maximum weight of the door leaf is 14kg, thickness 16-32mm, height 600-1800mm, width 300-700mm (maximum 450mm for this variant).

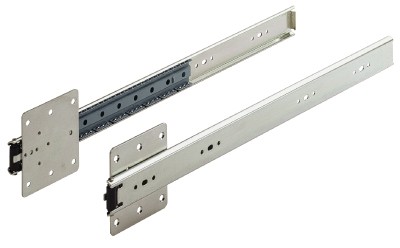

This is a set for one door leaf, which includes 2 ball slides. Door hinges with a large thickness and washers D=0 must be ordered separately.
For the "false" sliding side (for installing hinges) with a thickness of 12 mm, loaded hinges Intermat 9936 (assortment code 104529) or damped Sensys 8631i ( assortment code 264196). These hinges have a 35mm cup bore.
For a "false" sliding 18mm (16-21mm) thick sidewall it is necessary to use loaded hinges Intermat 9935 (assortment code 300804). These hinges have a 40mm cup bore.
Link to the manufacturer's website.
Parameters
| Parameter | Value |
|---|---|
| Fill (mm) | Wood |
| Load capacity (kg) | 14 |
| Maximum leaf width (mm) | 450 |
