HETTICH 41393 KA 4620 450 mm EB19 90 kg
Product range code
104102
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

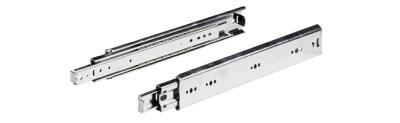

Full ball extension with overhang for wooden drawers, mounting width 19 mm, load capacity 90 kg. With a stop and a safety device against unwanted ejection. Using the lever, the drawer can be divided and the drawer can be easily removed from the body.
Related documents

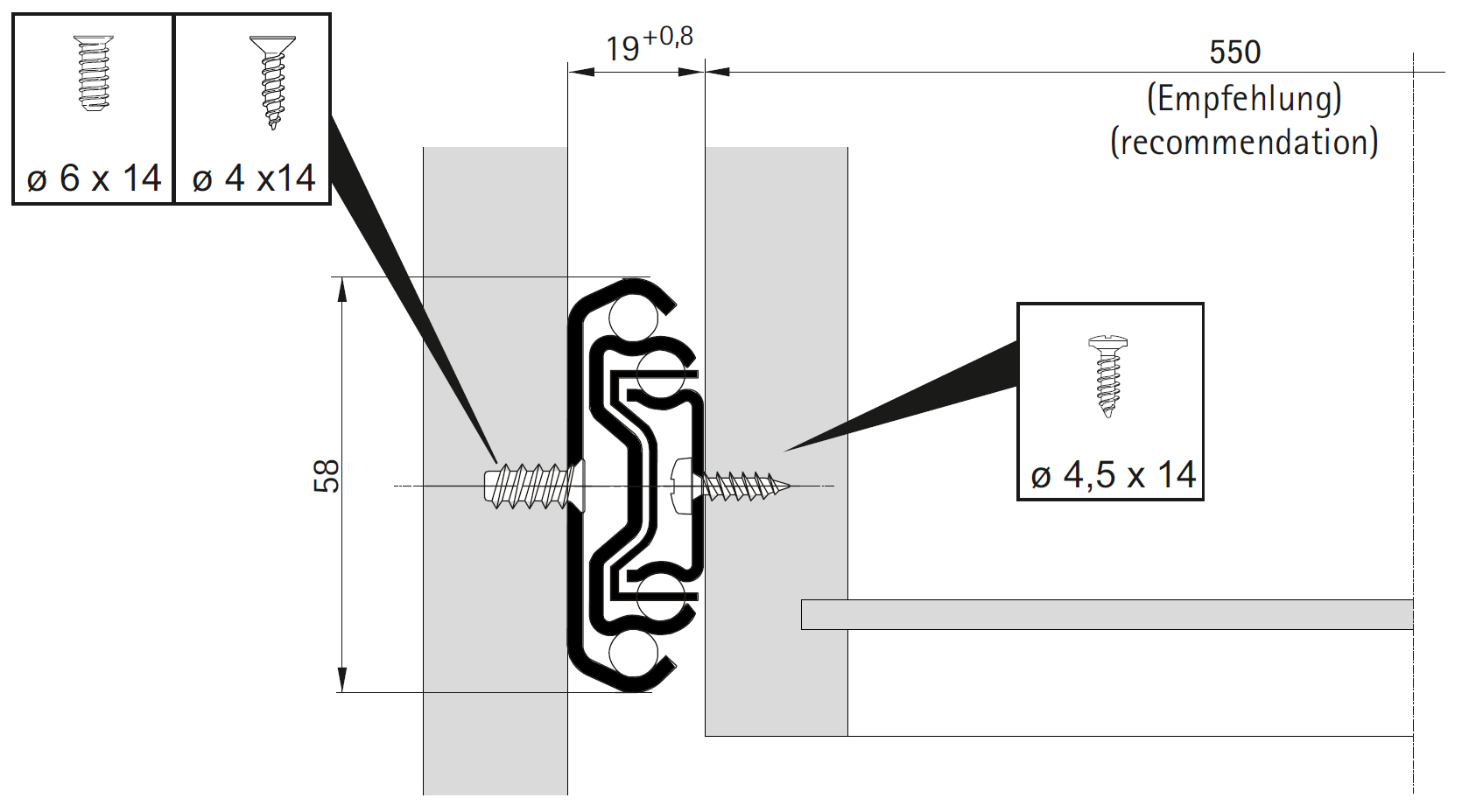

Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Length (mm) | 450 |
| Load capacity (kg) | 90 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Full extension slide |
