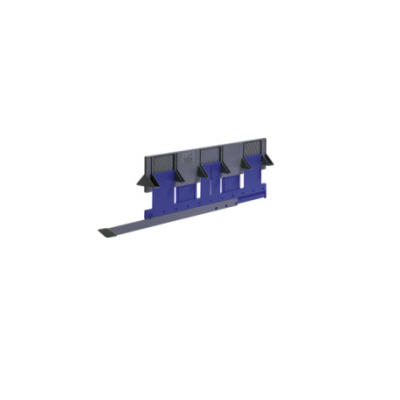

HETTICH 48771 Bluejig template for handles
Product range code
104215
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Rotatable marking template, adjustment in two directions. For marking the position of holes in System 32 for handles (spacing 32 - 320 mm) and for button handles. Adjustment range: distance from the side edge of the forehead 10 - 334 mm, distance from the bottom edge of the forehead 20 - 65 mm.
