    HETTICH 69600 Perfekt 5204 slide-on inserted 45° on drilled glass

    Product range code 107582
    HETTICH 69600 Perfekt 5204 slide-on inserted 45° on drilled glass
    Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
    HETTICH 69600 Perfekt 5204 slide-on inserted 45° on drilled glass
    HETTICH 69600 Perfekt 5204 slide-on inserted 45° on drilled glass
    Base price per pcs
    7,62 EUR 9,22 EUR incl. VAT
    On demand
    Buy
    Brand
    Hettich
    Group code
    10100103
    Unit (piece)
    pcs
    Divisibility
    1 pcs
    Packaging
    10 pcs
    Description and parameters
    Description and parameters

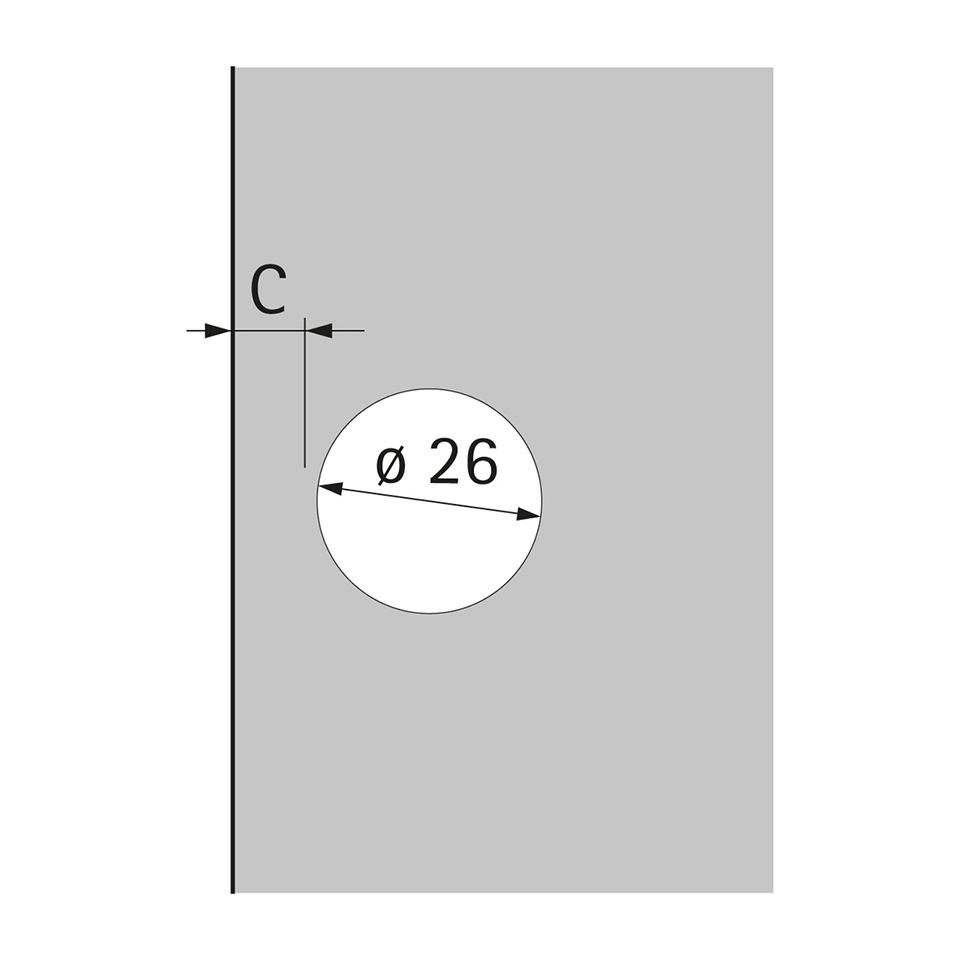

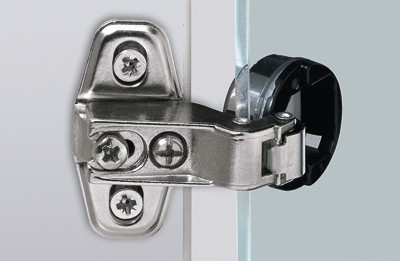

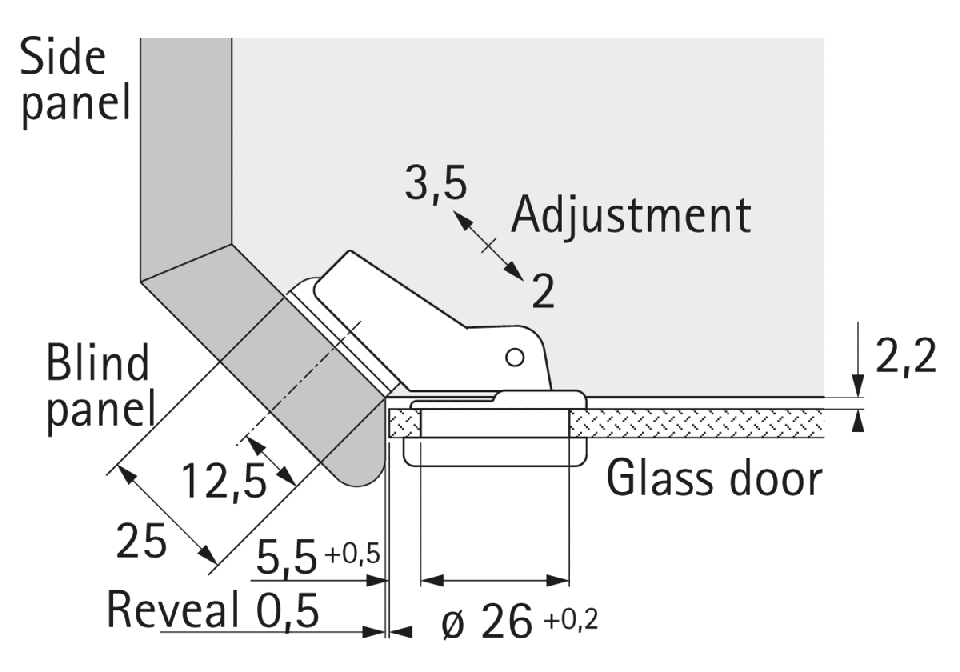

    Slide-on hinge Perfekt 5204 45° inserted with spring for glass doors 4.0-6.5 mm (drilling diameter 26 mm). Can be used for cabinets with a protruding frame, angle of 45° between the side and the frame. Including mounting pad. Fastening of the mounting pad using screws with countersunk head 3.5x16mm. Height adjustment with mounting pad +/- 1.5mm. Nickel-plated steel. Black plastic hinge bowl.

    Parameters

    Parameter Value
    Angle of opening 95
    Angular variants 45
    Mounting into material Screw
    Mounting on washer To jam
