HETTICH 73277 KA 5632 ball extension 300 EB12.7 45 kg
Product range code
106229
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

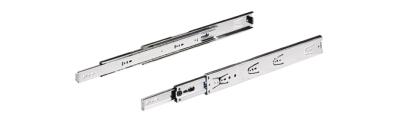

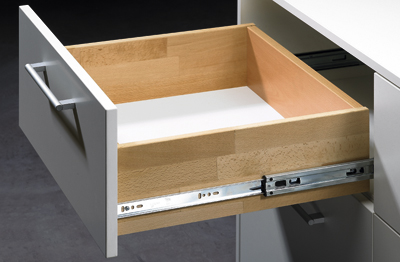

Full extension for ball-shaped wooden drawers, mounting width 12.7 mm, load capacity 45 kg. With a stop and a safety device against unwanted ejection. Using the lever, the drawer can be divided and the drawer can be easily removed from the body. For drawers with a slotted, half-slotted or butt bottom. Steel.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 300 |
| Load capacity (kg) | 45 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Full extension slide |
