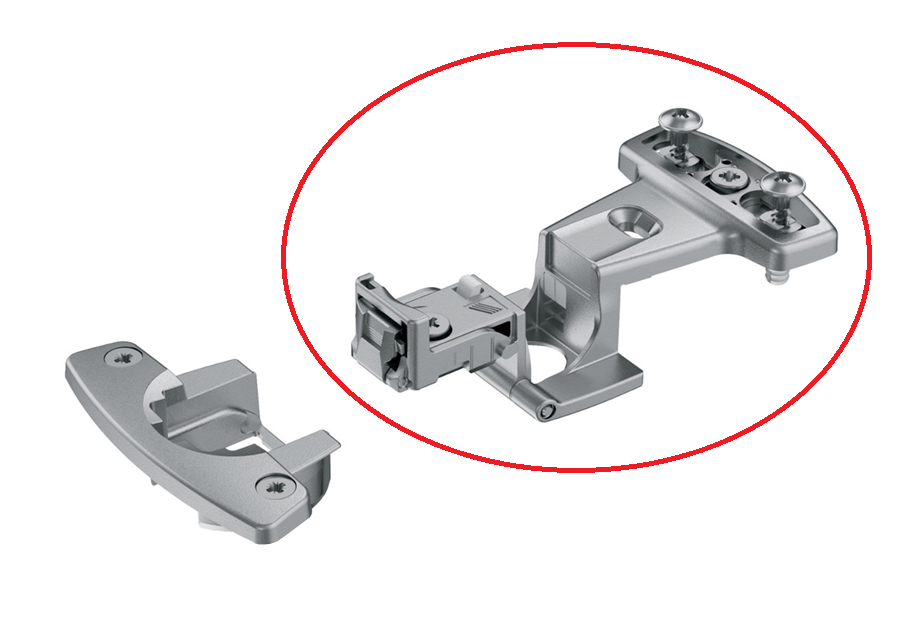

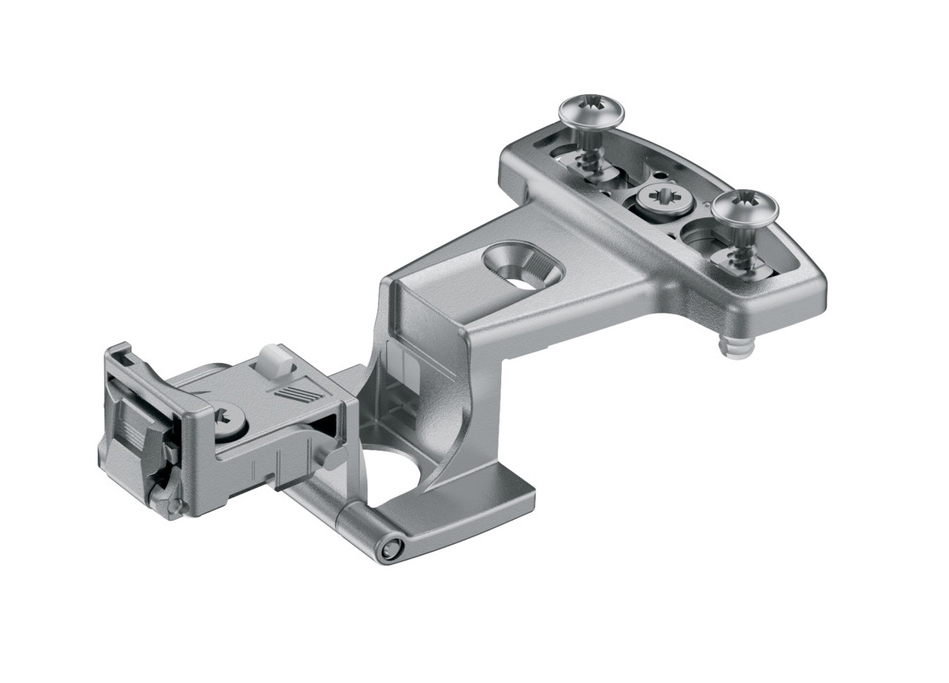

HETTICH 9022312 Selekta PRO 2000 Basic hinge with expanding sockets
Product range code
300824
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

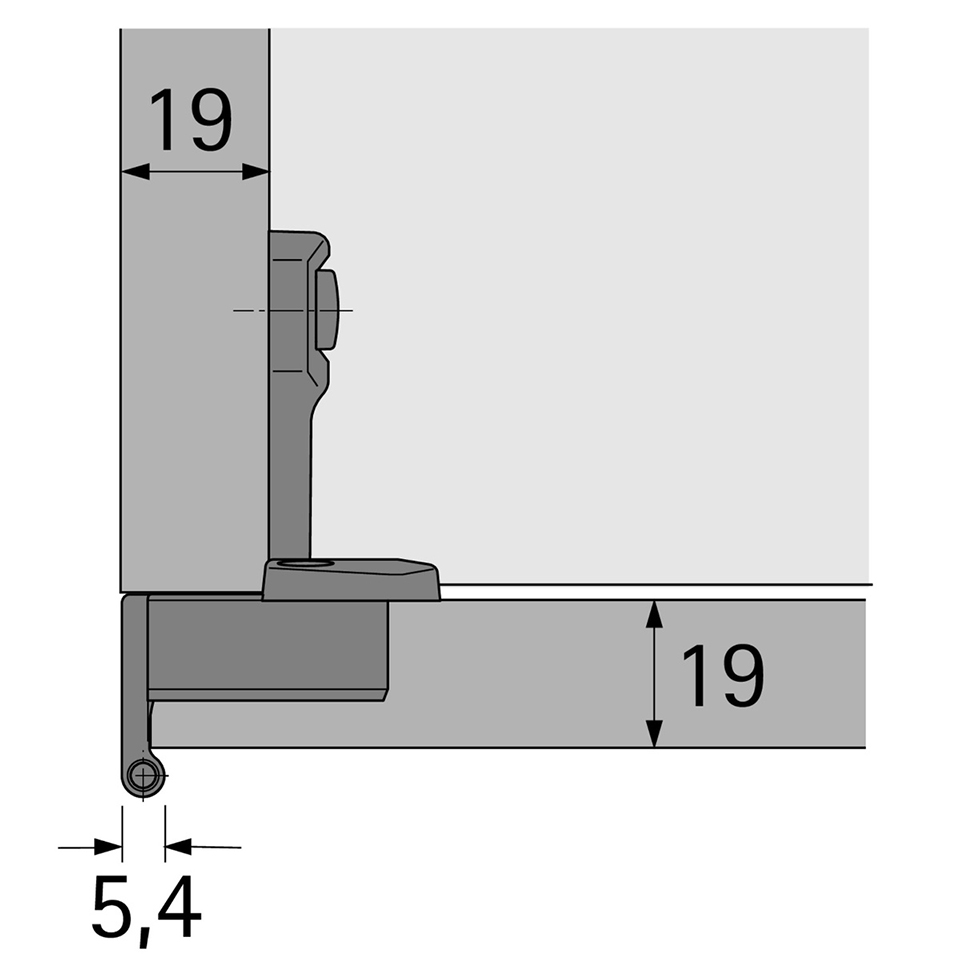

Basic hinge Selekta Pro 2000, cabinet and door wing 19 mm, overlay 16 mm, visible roller of diameter 5.4 mm, opening 270°, with zero protrusion when open at 132°, with expanding sockets (drilling D5x11 mm) in distance 32 mm, stay closed function, nickel plated.

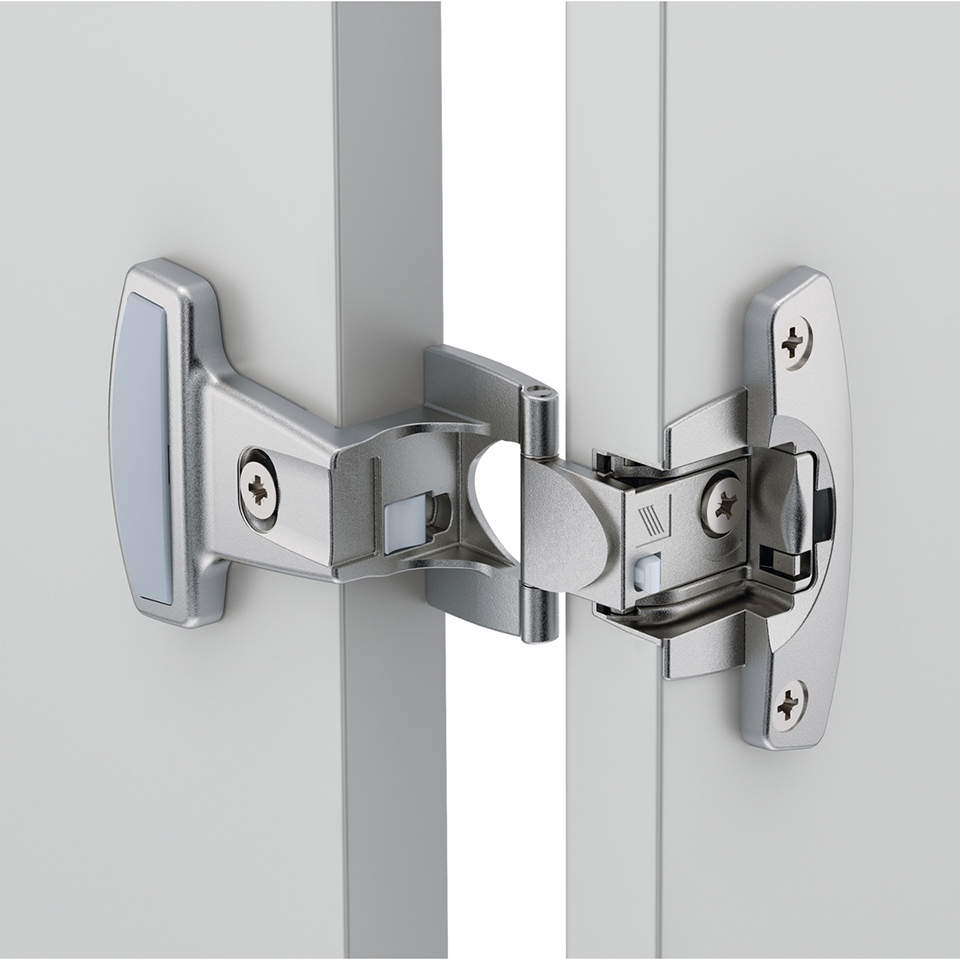

For office, organisational and contract furniture. Cup and basic hinge are mounted separately. Fast clip on installation. Cup diameter 35 mm, Cup depth 13 mm. Integrated eccentric cam overlay adjustment +0mm/-2 mm, Integrated eccentric cam height adjustment +2 mm/–2 mm. Nickel plated die-cast zinc
Parameters
| Parameter | Value |
|---|---|
| Mounting into material | Dowel |
| Mounting on washer | To slip on |
