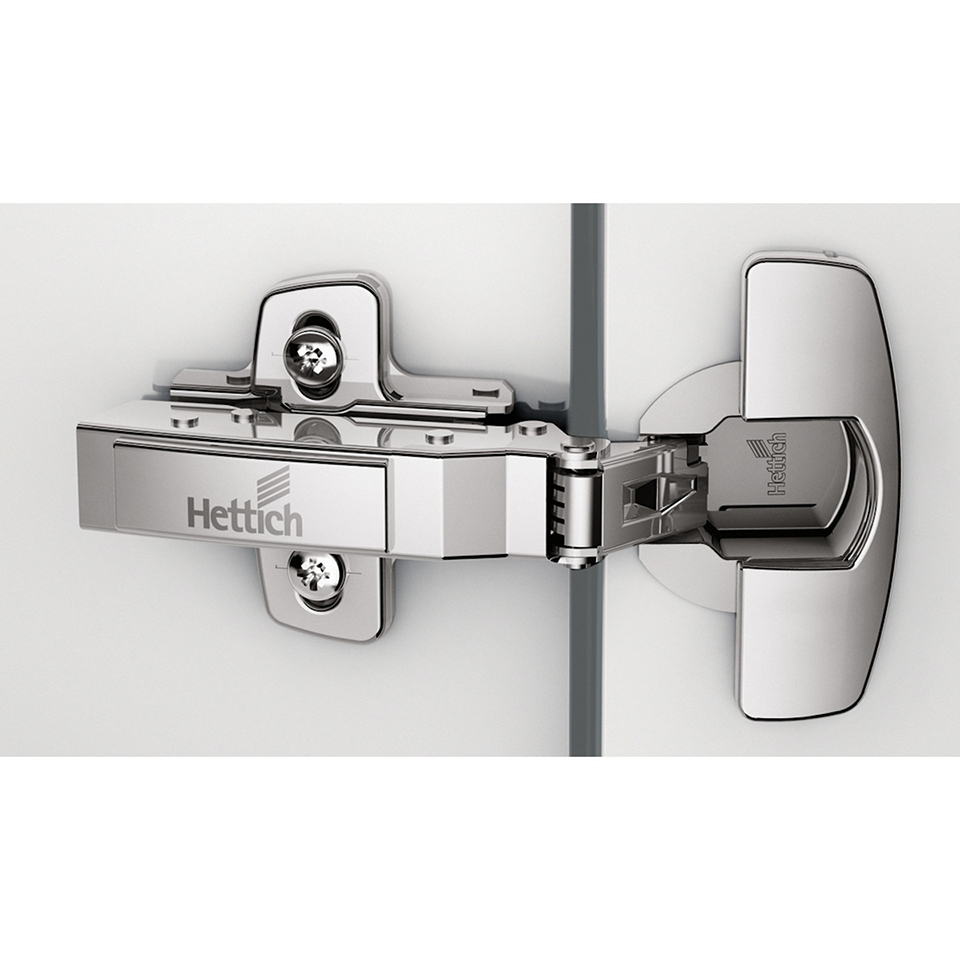

HETTICH 9073665/9071316 Sensys 8675 Loaded 110° PTO TH Press
Product range code
245726
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

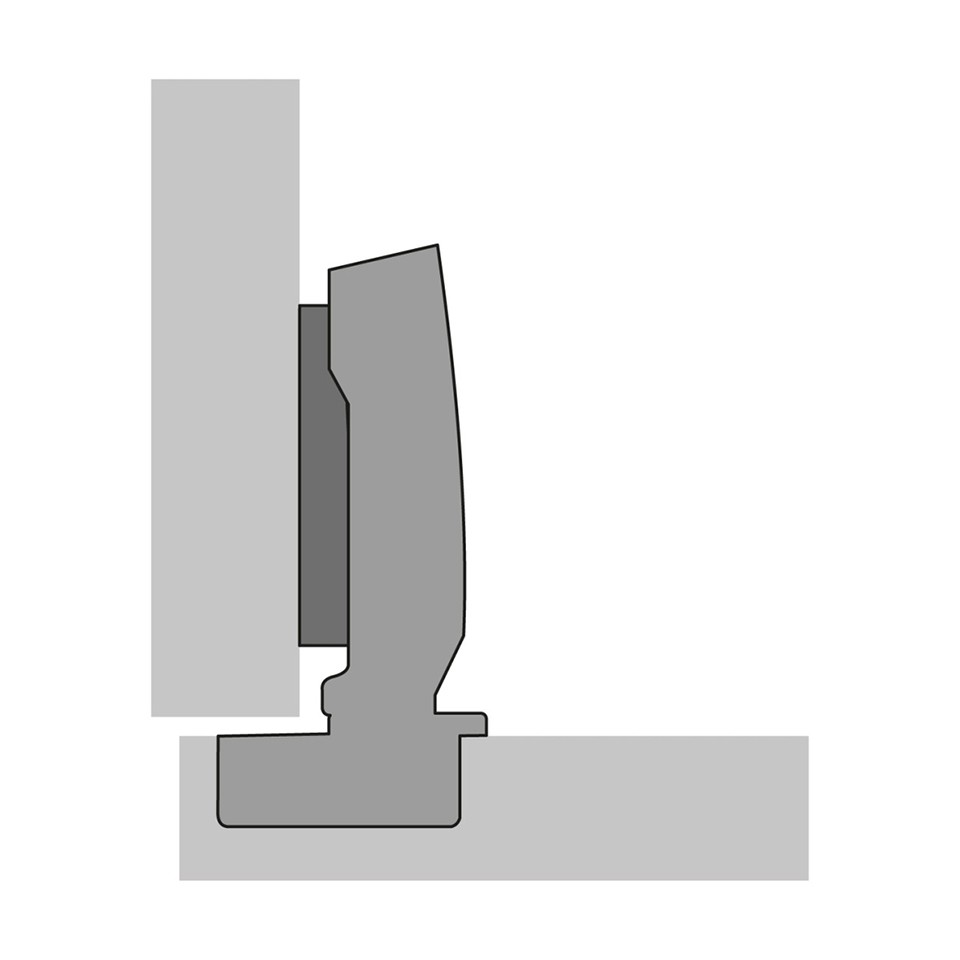

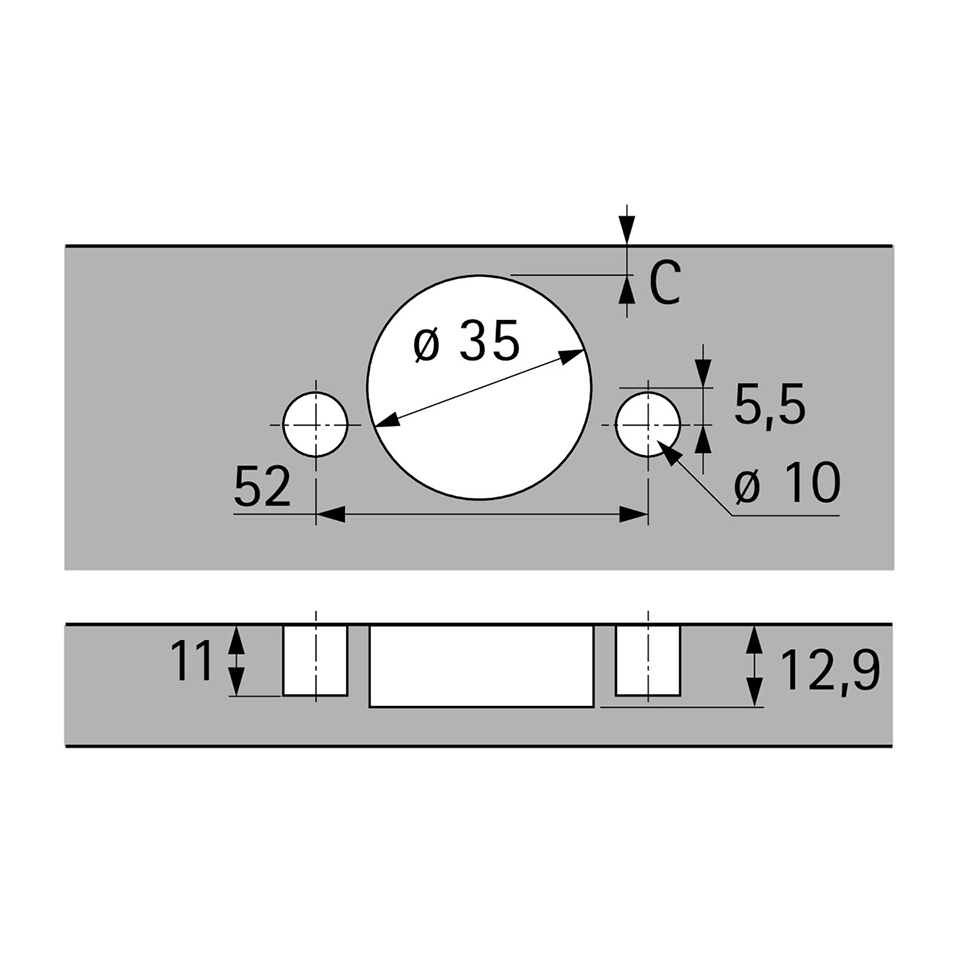

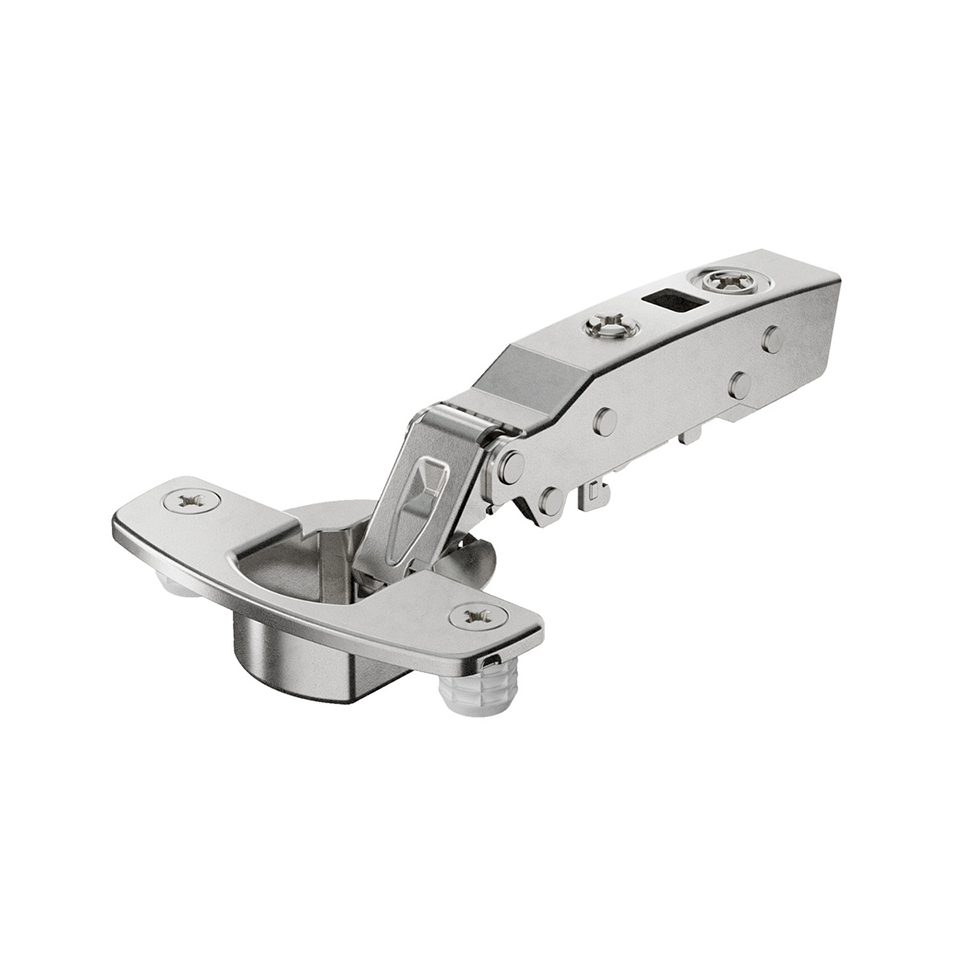

Clip-on bowl hinge loaded for furniture doors without damping and without spring, on screw. For door thicknesses of 15-22 mm. Bowl diameter 35 mm. No spring. Load adjustment +- 2 mm, depth adjustment +3 mm / -2 mm, height adjustment using a mounting pad. Bowl and arm: nickel-plated steel. Recommended washers: D 1.5 for screw 106403 D 1.5 for euro 119240 Bowl cover no. 105408 and hanger cover no. 105425 are ordered separately.
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 110 |

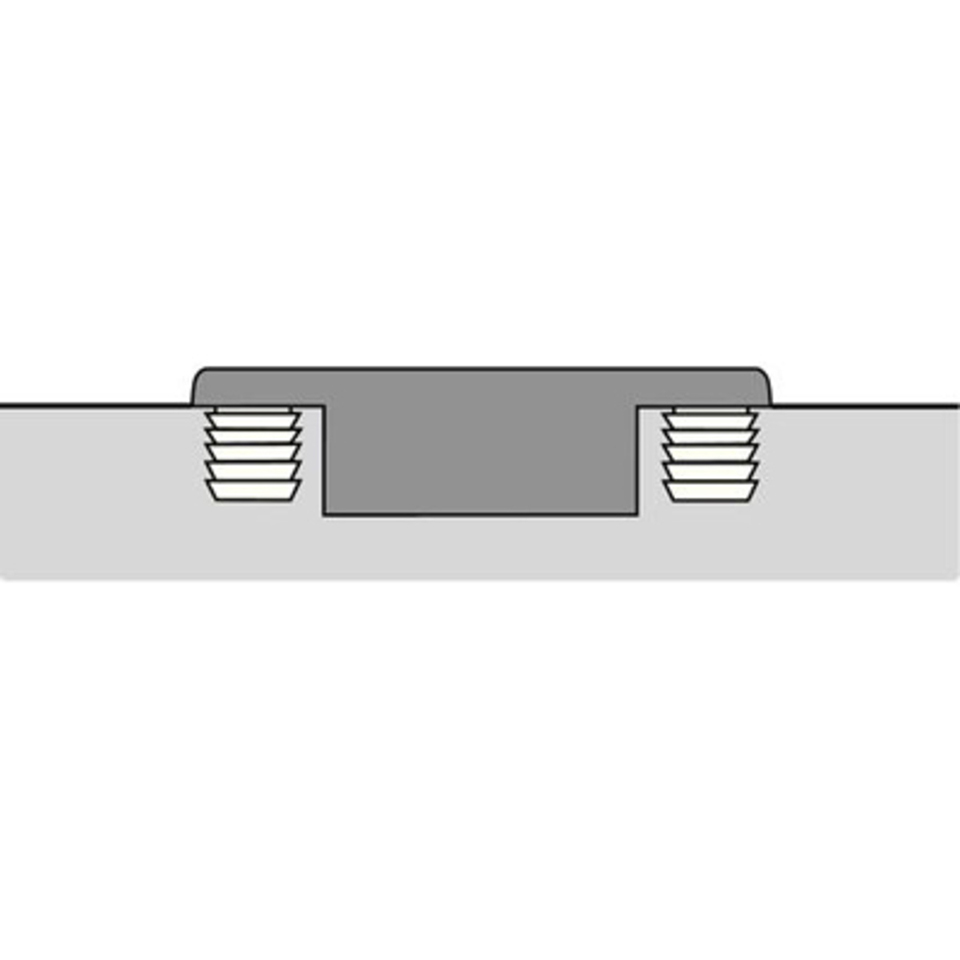

| Mounting into material | Dowel |
| Mounting on washer | To jam |
