HETTICH 9099542 Sensys 8657i TH54 165° loaded SiSy
Product range code
264248
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

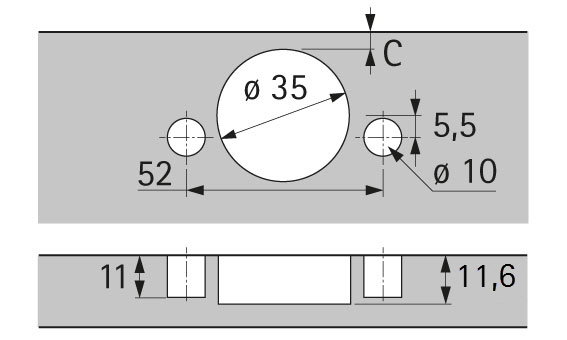

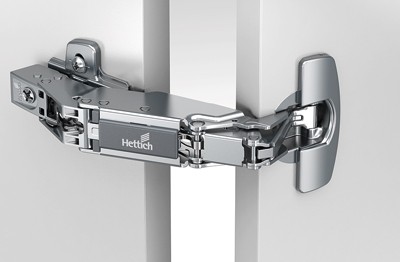

Clip-on cup hinge loaded with integrated damping, quick-fit Flash. Opening angle 165°. Door thickness 15 - 32 mm. The doors do not interfere with the lightness of the body, so the interior space is free for pull-out elements. Recommended washers: D 1.5 for screw 106403, D 1.5 for euro 119240.
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 165 |
| Mounting into material | Quick installation |
| Mounting on washer | To jam |
