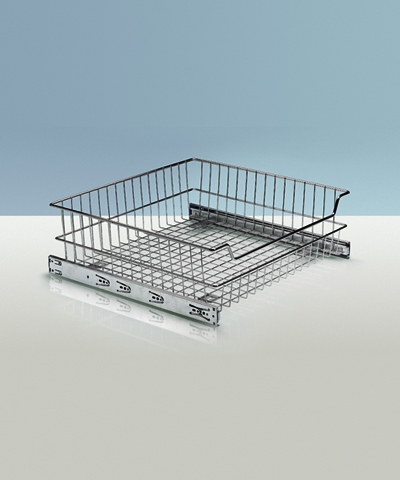

HETTICH 9132456 Pull-out basket KA 500 mm 160 SiSy
Product range code
209257
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

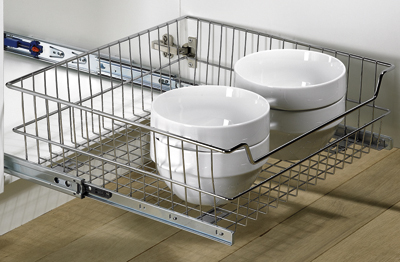

Internal pull-out basket with adjustable width, load capacity 35 kg, with full ball extension and Silent System damping. For clear body width 435 - 470 mm. Minimum clear body depth 504 mm. The set includes: 1 pull-out basket, 1 ball pull-out with Silent System.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Length (mm) | 500 |
| Load capacity (kg) | 35 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
