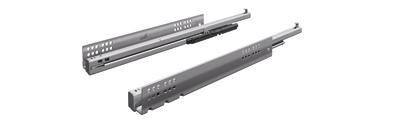

HETTICH 9136003 Quadro V6+ 480 mm EB20 SiSy L+P
Product range code
210091
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

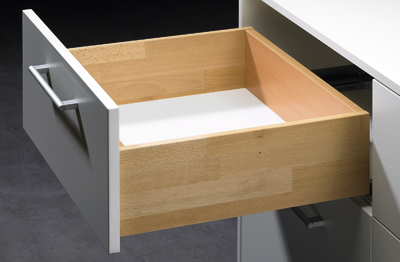

Full extension for wooden drawers with grooved sides. Load capacity 50 kg. Silent System - a damper integrated into the drawer ensures soft and silent closing of the drawer. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Connectors for wooden drawers with grooved sides are ordered separately No. 136297 1x and No. 136298 1x.
Termín dodání od 8-ti do 21 dní.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Length (mm) | 480 |
| Load capacity (kg) | 50 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
