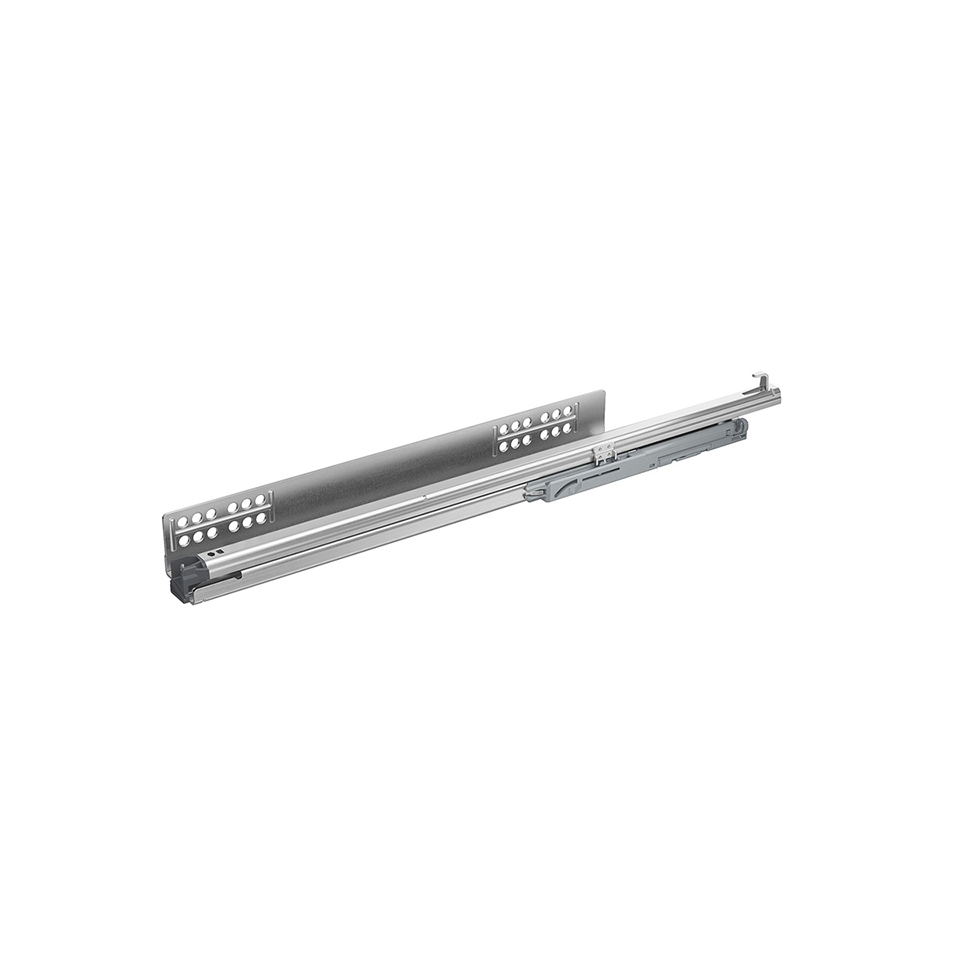

HETTICH 9256919 Quadro You full extension runner, 520mm/30kg, PTO, L
Product range code
538123
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Full extension runner Quadro V6 YOU for combining with AvanTech YOU system drawer or wooden drawer with catches (front catches must be purchased separately), suitable for a side profile thickness of up to 16mm (EB21). Eventual length of wooden drawer: SKL = NL - 10mm. Integrated handle-free opening – Push-to-open (PTO). To be mounted by sliding on with height adjustment catches (catches to be ordered separately) - Tool-less height adjustment up to + 3 mm. Galvanised steel. Optional: Synchronisation / multi synchronisation for Push to open Silent, Pull-out shelf support (shelf length = NL - 20mm) and stay closed feature component of the pull-out shelf (to be ordered separately).
