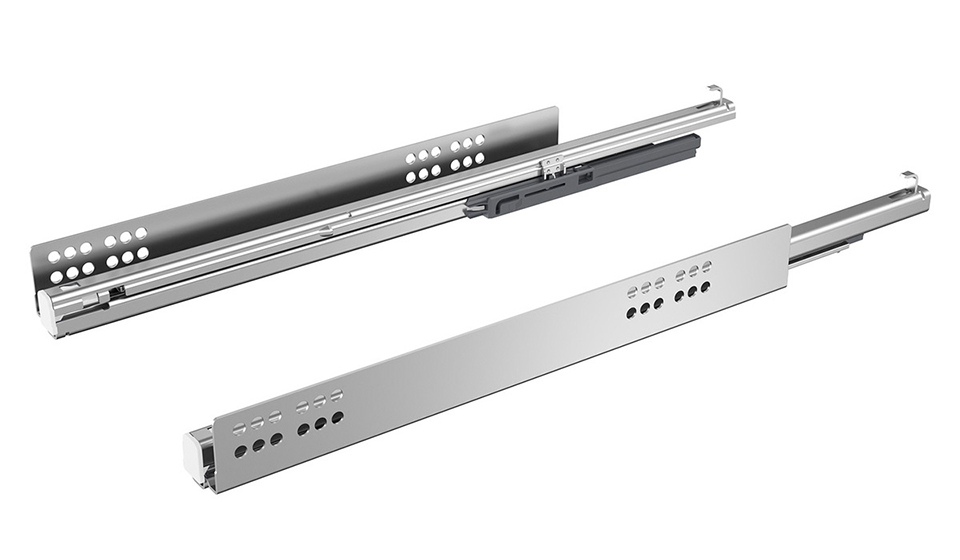

HETTICH 9307660 Quadro V6 420mm/30kg EB10.5 SiSy L+P
Product range code
474942
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Full extension for the InnoTech Atira system, body side thickness 18mm. Load capacity 30 kg. Silent System - a damper integrated into the drawer ensures soft and silent closing of the drawer. Push-in installation - the drawer is placed on the pull-outs and inserted into the body. Interchangeability - replacing a partial extension with a full extension can be done without changing the dimensions of the cabinet, body or front of the drawer, as well as the drilling.
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Colour | Undefined |
| Length (mm) | 420 |
| Load capacity (kg) | 30 |
| Movement of extended drawer | With damping |
