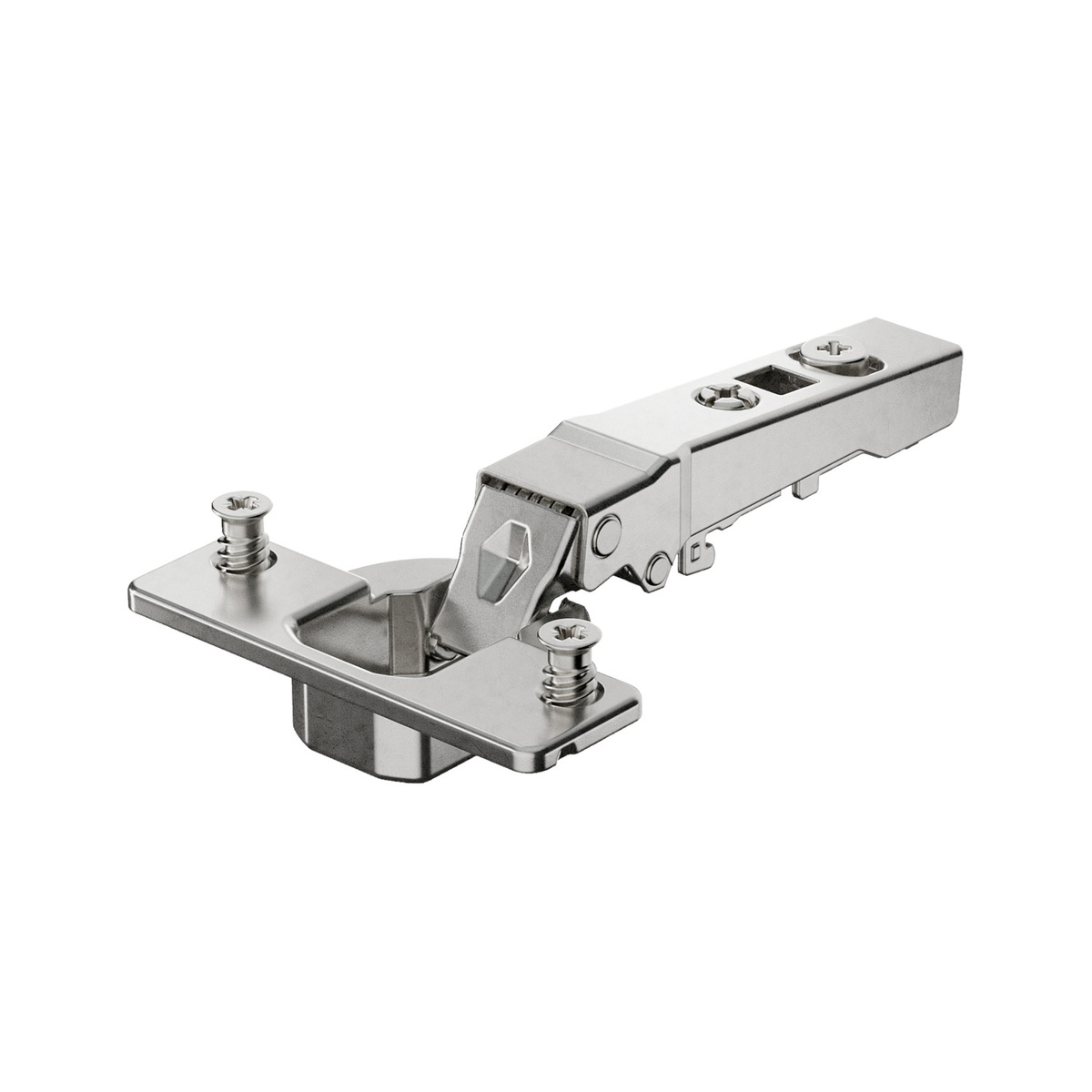

                                        HETTICH 9313224 Novisys Loaded 105° TB45 Euroscrew

            HETTICH 9313224 Novisys Loaded 105° TB45 Euroscrew

                            Product range code


                            510780




    Description and parameters































































            Standard Novisys 105° loaded hinge with closing spring. Opening angle 105°, for door thickness 14-24mm. TB version - drilling 45x9.5mm. Bowl depth 11.8mm. Installation with euro screws. Integrated loading adjustment +/- 2mm, integrated depth adjustment +2.8 / -1.2 mm. Height adjustment with mounting pad. Nickel-plated steel.
