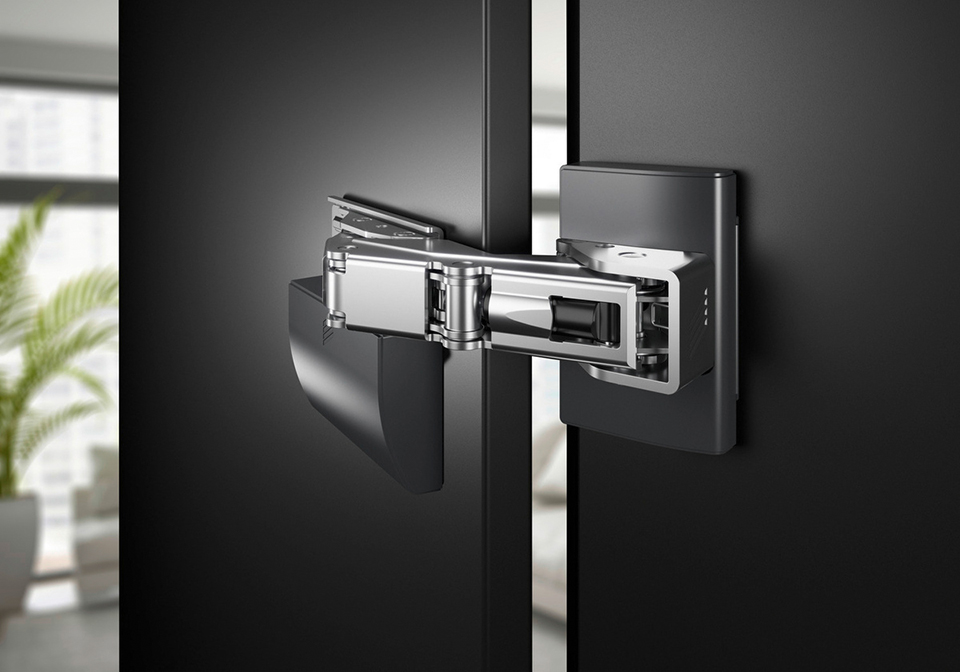

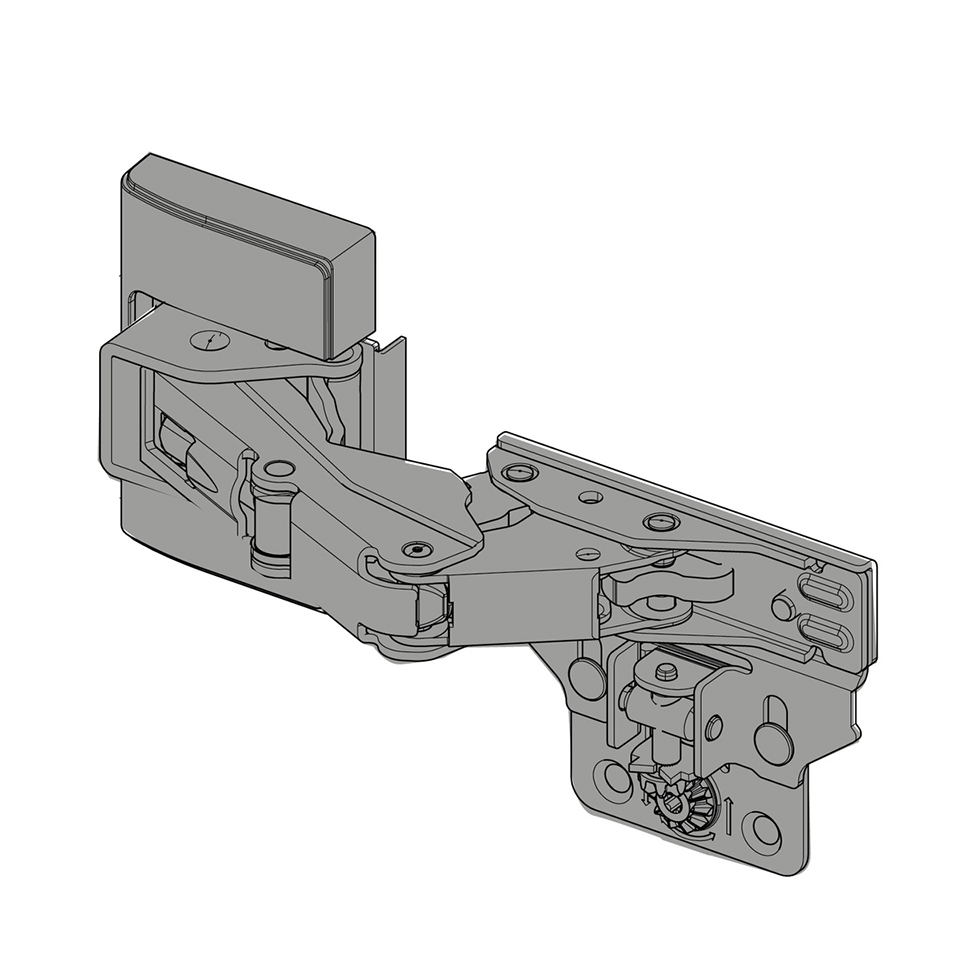

HETTICH 9343483 EviSys Guiding hinge 115°,soft closing,with anthracite cover cap

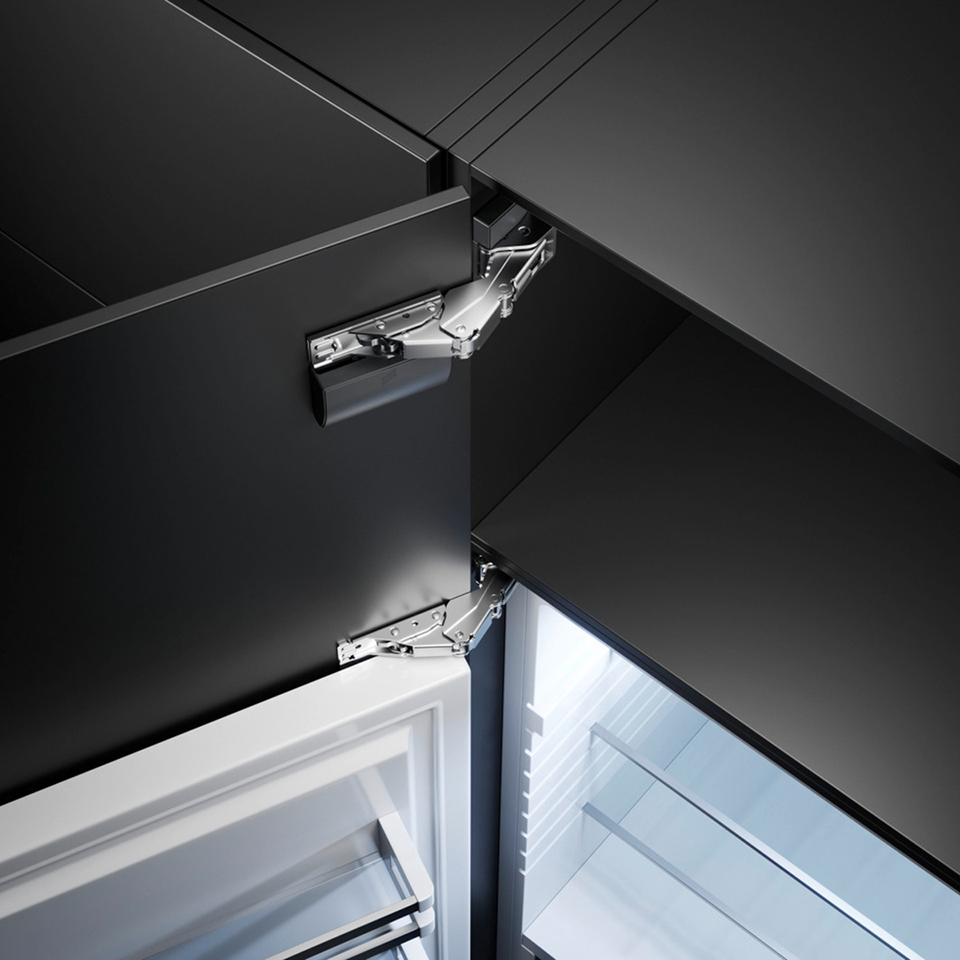

Additional Evisys support hinge with soft closing, designed for the overlapping section of built-in refrigerator doors with special Hettich refrigerator hinges. Allows the use of doors up to 750 mm wide and of weight up to 80 kg (for use in combination with Hettich hinges for built-in refrigerators). The hinge positioned at the top of the door ensures the necessary stability during opening and a consistently perfect gap appearance.
Opening angle 115°. For use on left and right of door.

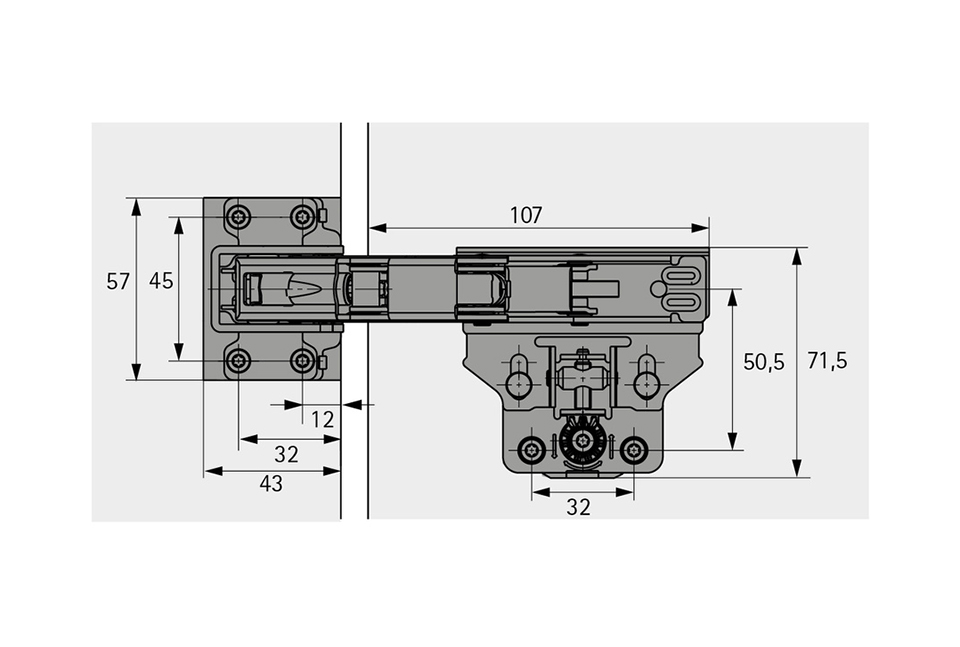

For cabinets with 16, 18, 19 mm side panels. Installed depth 41,5 mm. For screwing on. Material galvanised steel
Set comprises:
- Hinge
- Adjustment unit

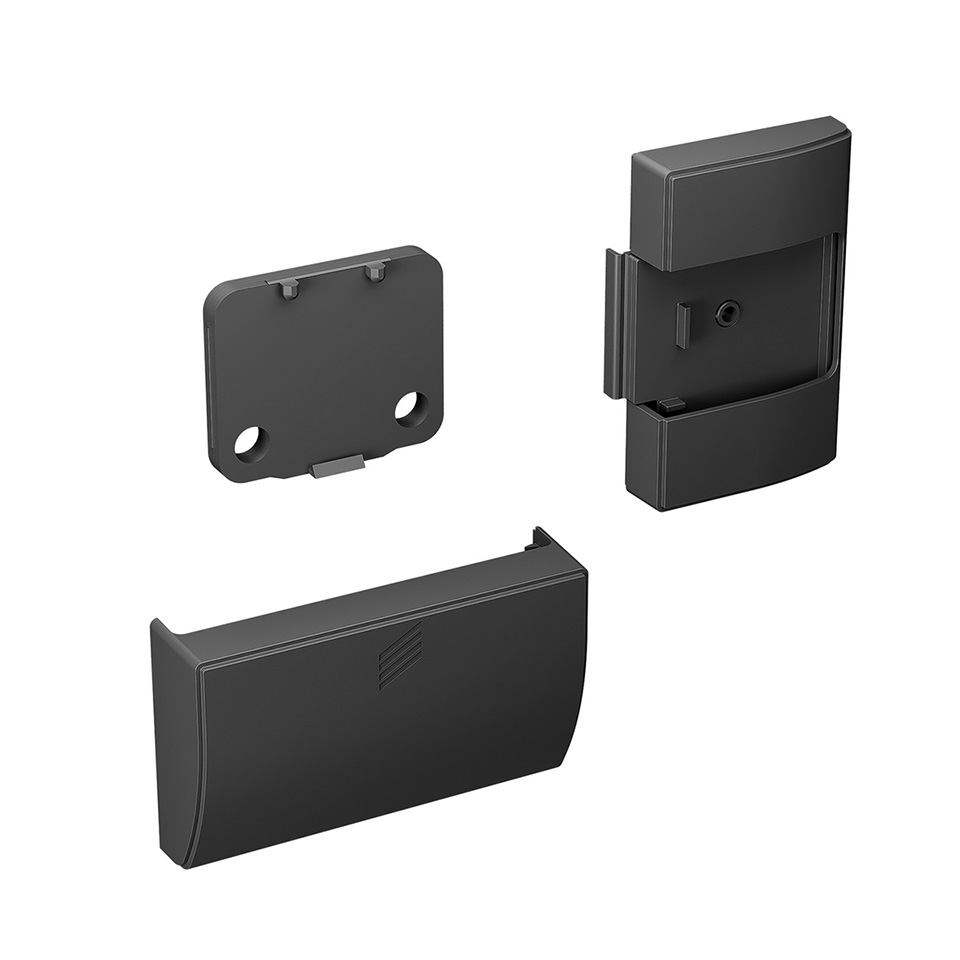

- Cover cap with distance plates for 16, 18, 19 mm cabinet bodies
- Distance plate
- Cover cap, adjustment unit
- Fixing screws
- Drilling template
- Assembly instructions
