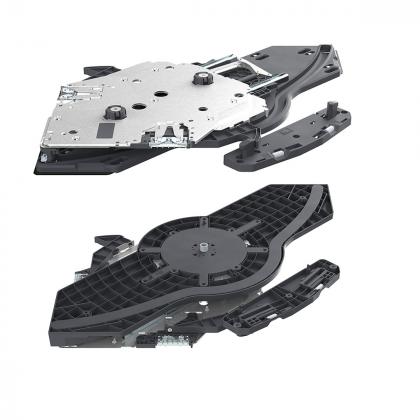

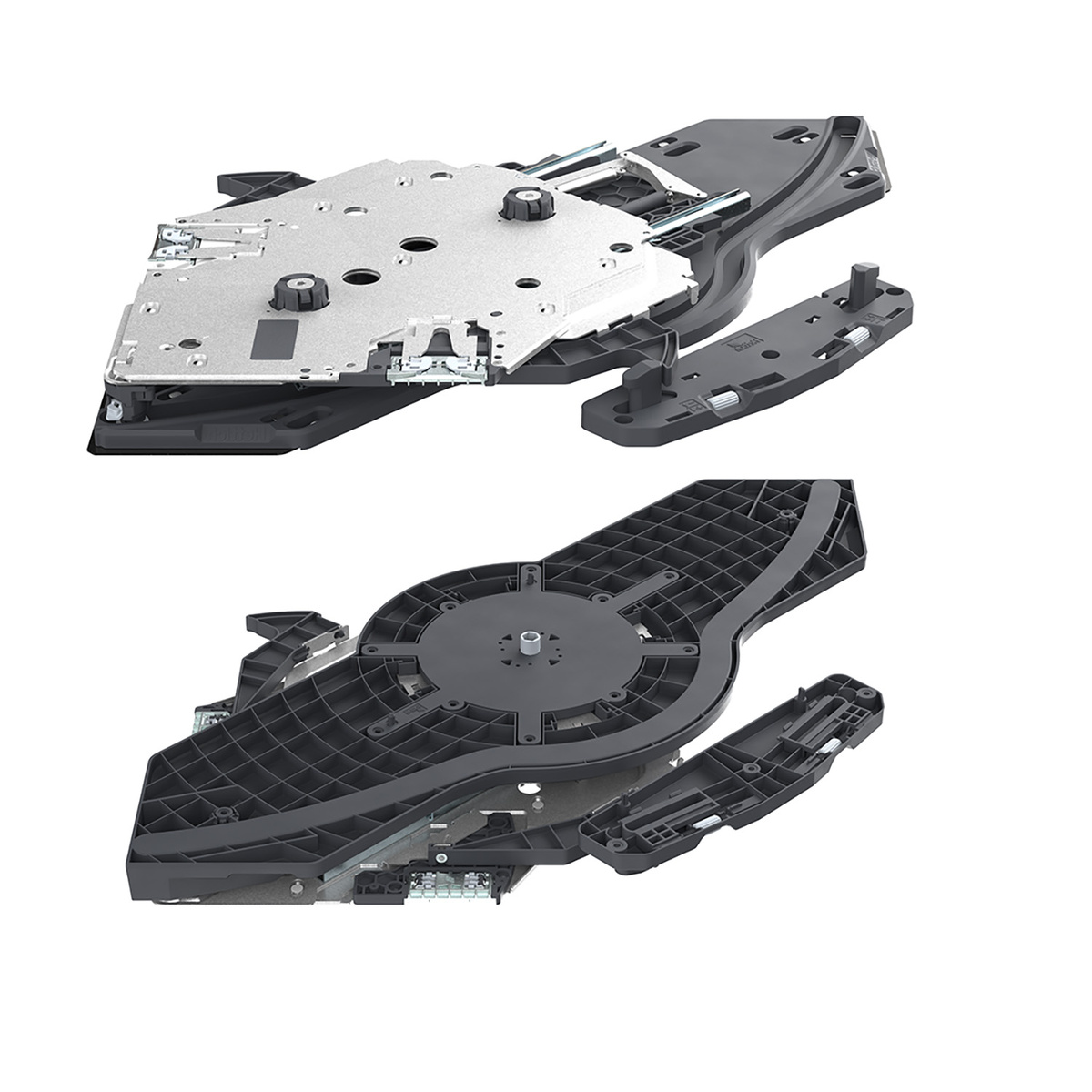

HETTICH 9349303 FurnSpin XL SiSy left
Set of fittings (modules) for making the rotating inner part of the FurnSpin cabinet. The size variant, orientation, and opening method are specified in the name.
Left version = opens clockwise
Right version = opens counterclockwise
Size and load capacity of the FurnSpin module
height: min. 700mm a max. 2400mm
- S
min. 377x377 mm (Movement space outside the cabinet = 192mm)
max. 450x450 mm (Movement space outside the cabinet = 207mm)
load capacity = 80kg (including contents)
- M
min. 440x440mm (Movement space outside the cabinet = 218mm)
max. 515x515mm (Movement space outside the cabinet = 234mm)
load capacity = 100kg (including contents)
- XL
min. 564x564mm (Movement space outside the cabinet = 275mm)
max. 664x664mm (Movement space outside the cabinet = 296mm)
load capacity = 120kg (including contents)
