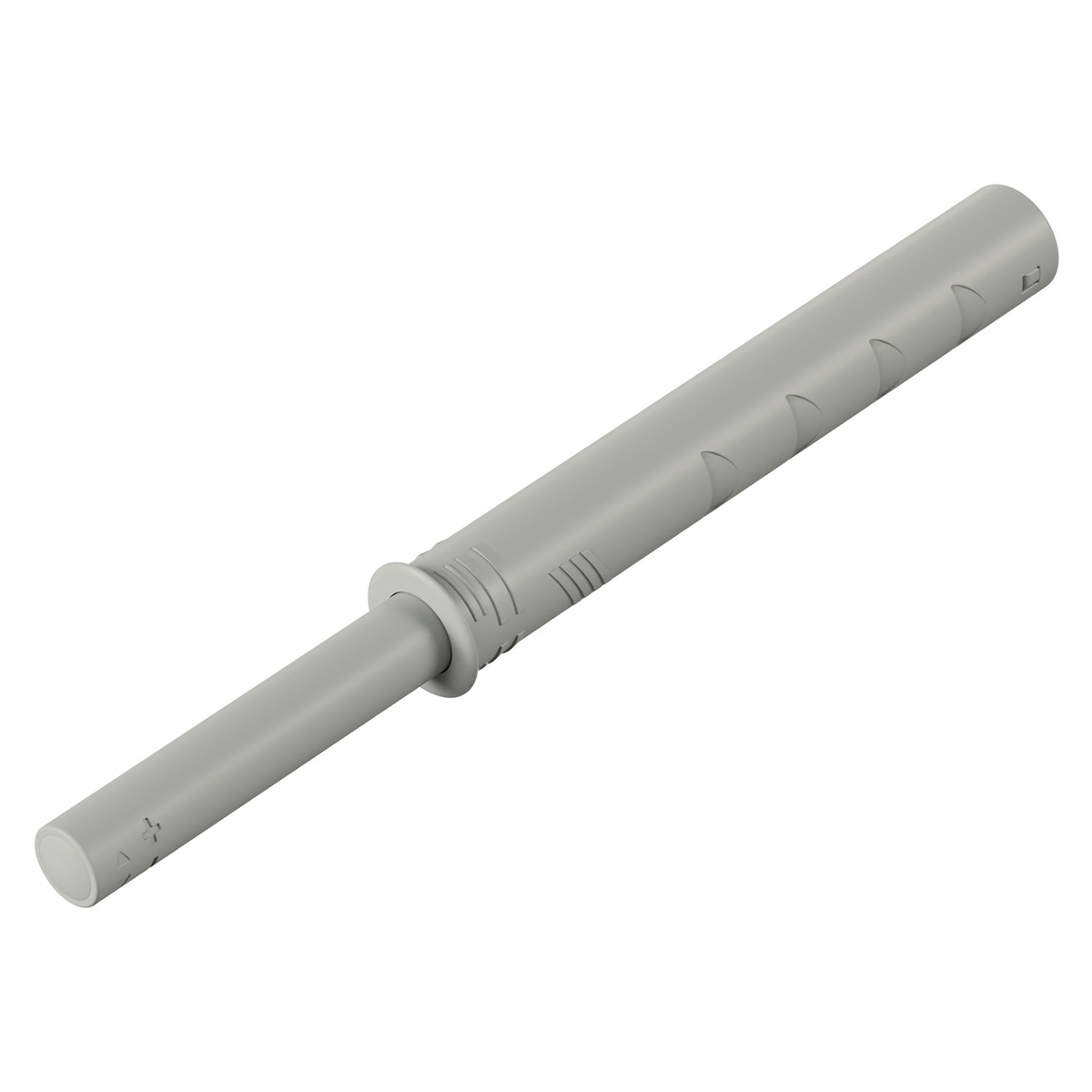

HETTICH 9375925 Pin, PTO, for drilling in, Long travel, light grey

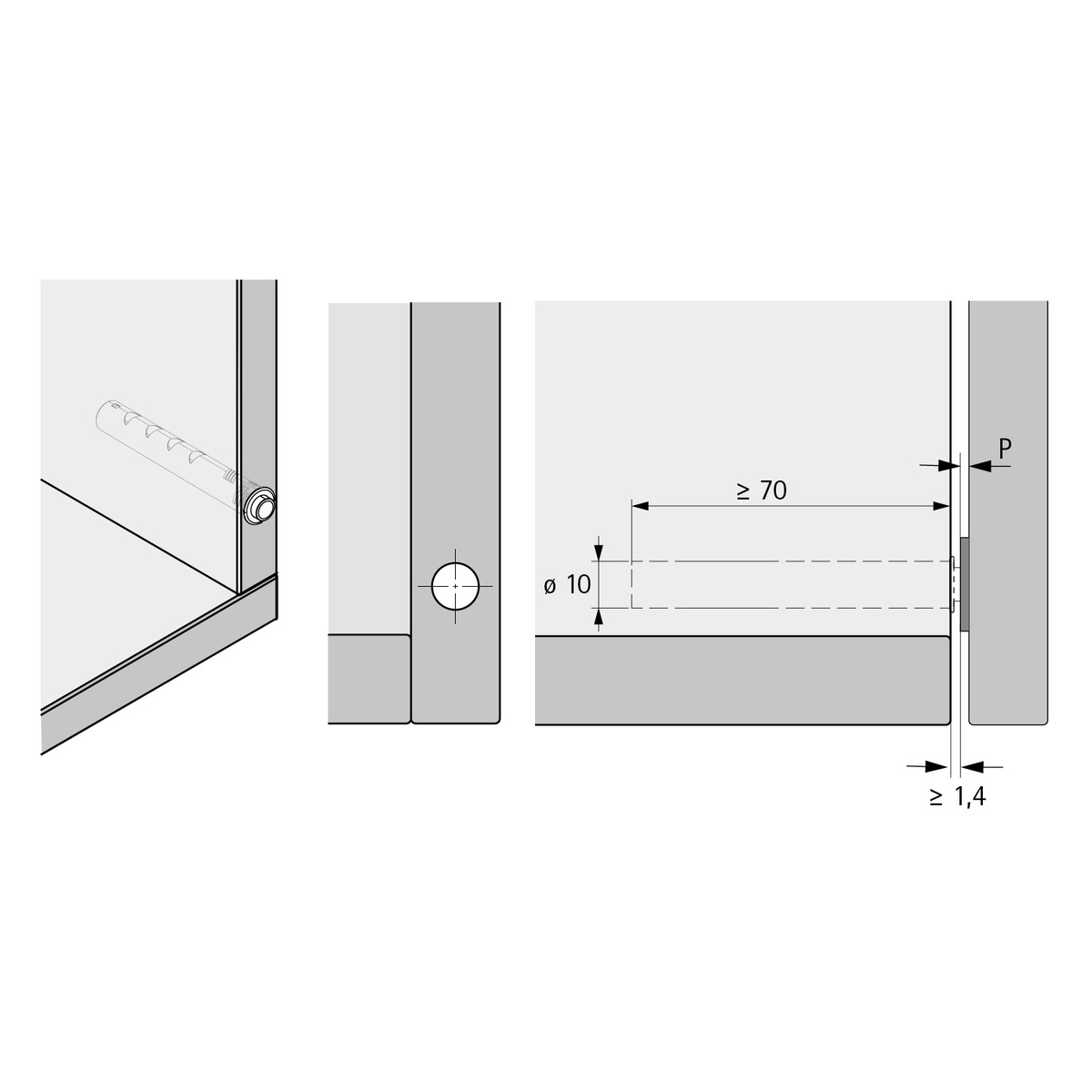

PTO pin with contact pad for handle-less opening of furniture doors. It can be installed into the cabinet edge (for drilling in) or on the cabinet base/side/top panel (with an adapter). The activation stroke is 1,4 mm and the total adjustment range is 6 mm. Pins are supplied in various versions - specific version – see product name.
Pins with contact pad are designed for hinges with a closing spring and without soft closing. When pressed, the door only opens slightly to the length of the extended pin (14 mm / 37 mm) and must then be opened manually. For freestanding cabinets and overlay doors, the short plunger (14 mm extension) is sufficient, for inset doors and/or adjacent cabinets (doors), a long plunger (37 mm extension) must be used. The advantages are silent closing, suitability for glass doors, and a wider range of stock hinges with a closing spring.
The set includes:
1x PTO pin with the contact pad
1x upper part of the adapter (adapter version only)
1x lower part of the adapter (adapter version only)
Related documents
Assembly instructions| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for getting a better price
Order the whole package and your price per pc (pcs) will be %price% |
288339 |
In stock
|
1 pcs / 25 pcs |
5,63 EUR
/ pcs
6,82 EUR incl. VAT
|
|
