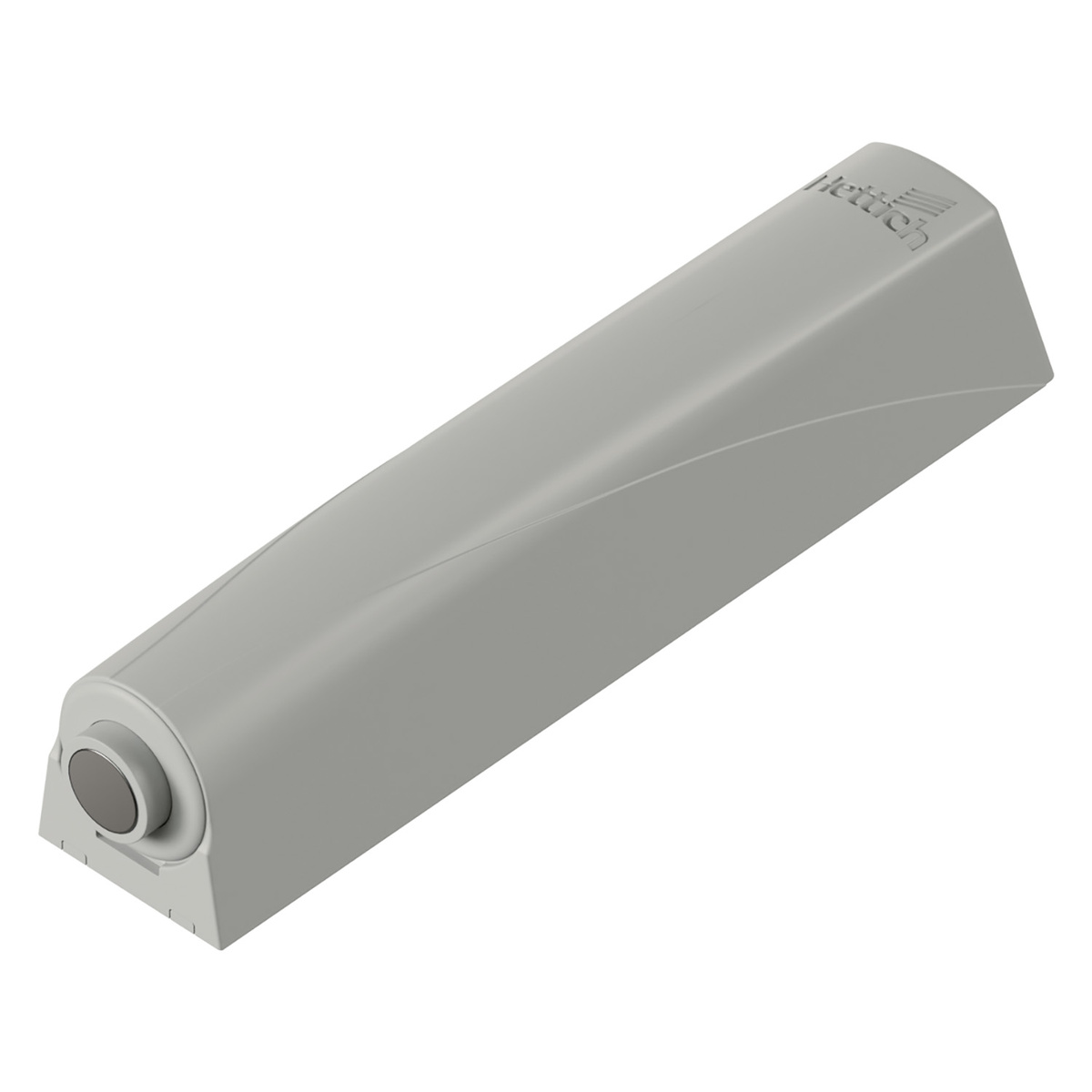

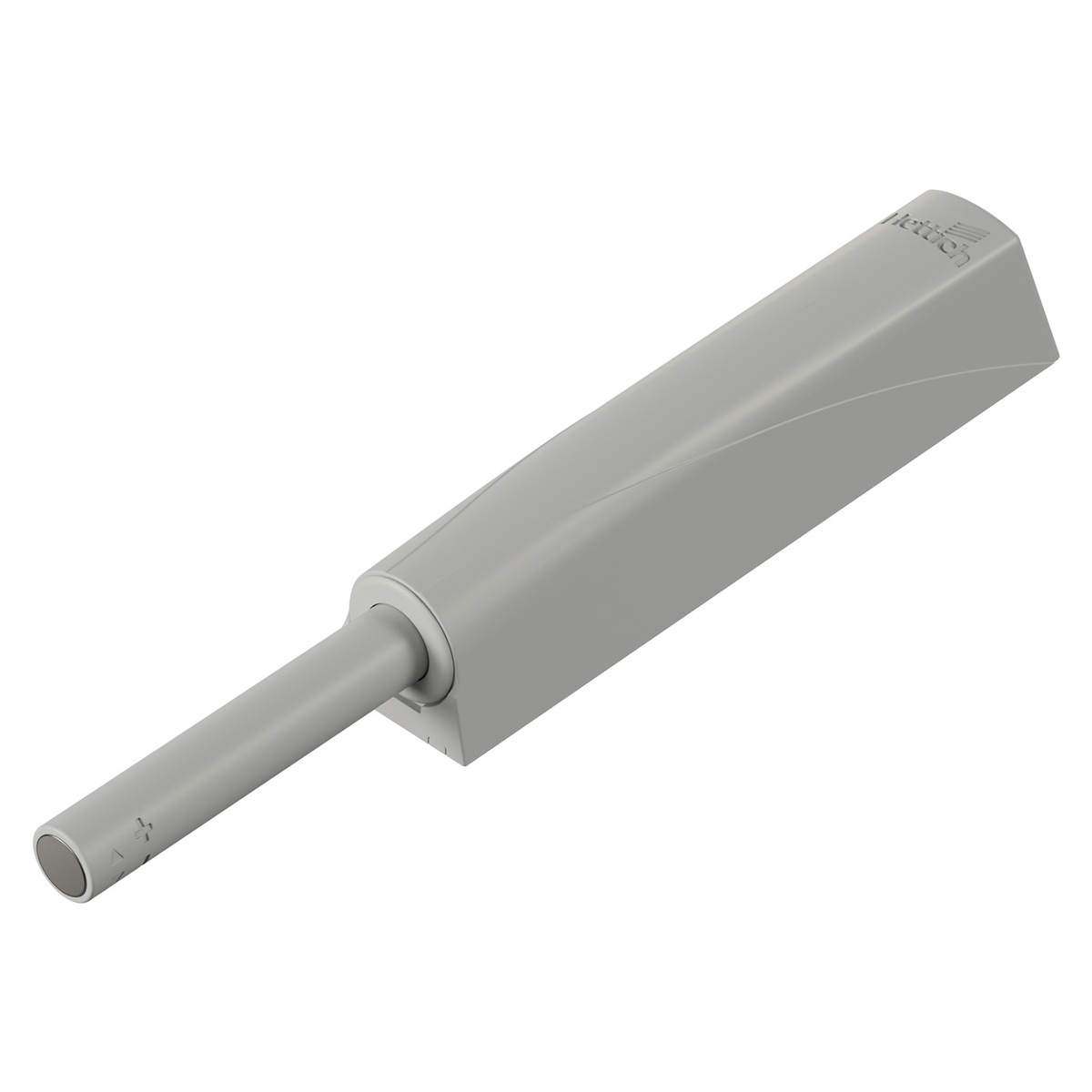

HETTICH 9375934 PTO piston with bumper, long, extra strong, with adapter, grey
Product range code
548419
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

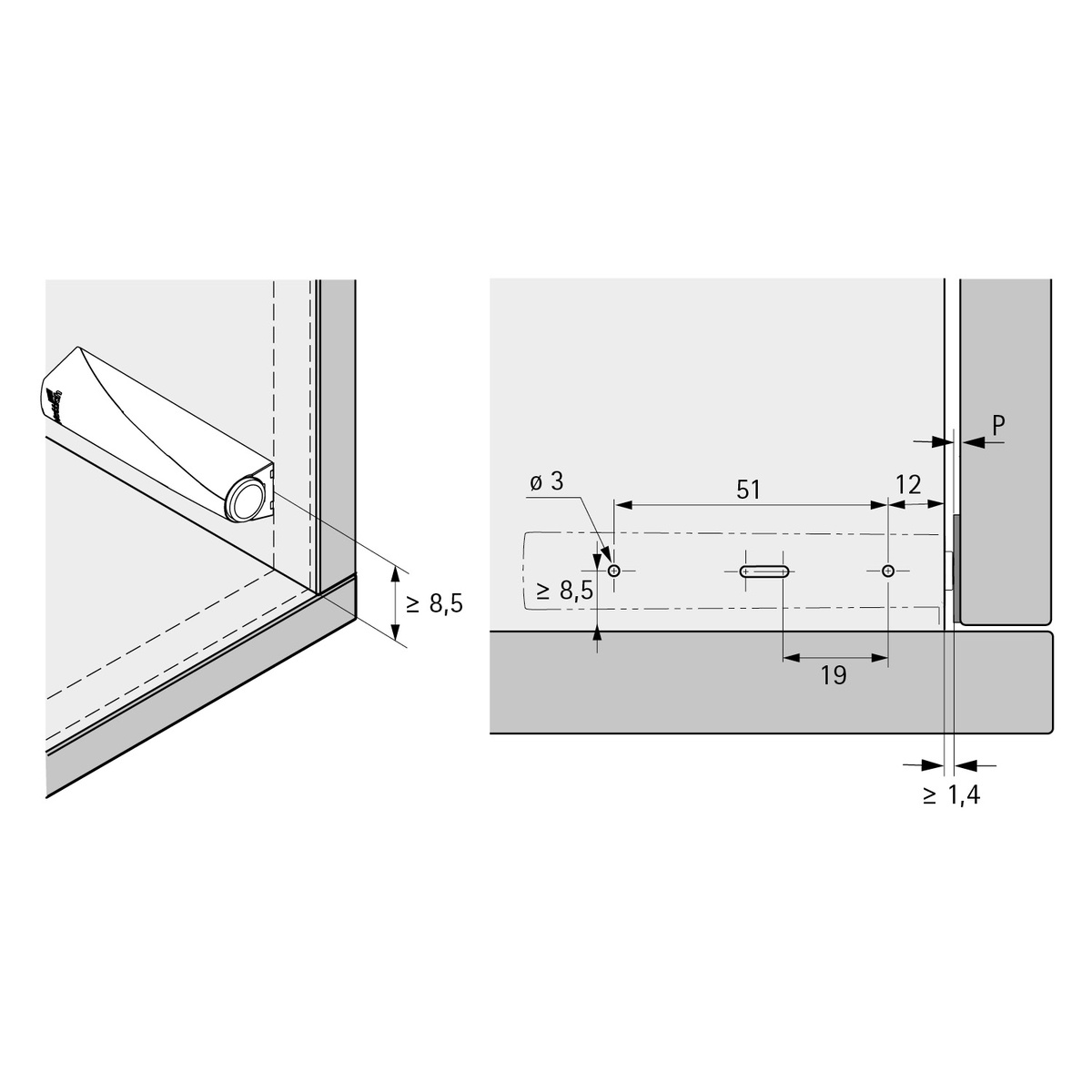

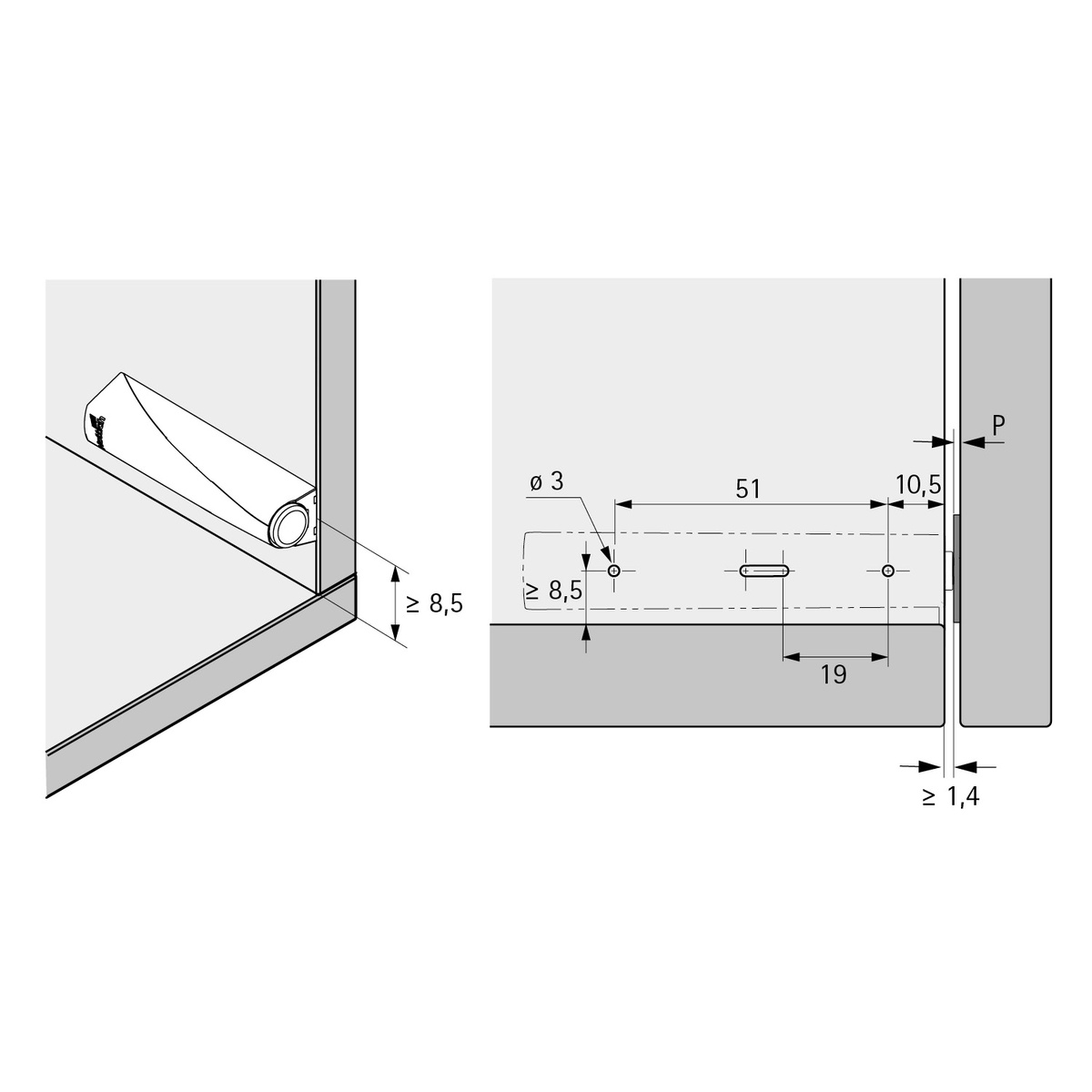

PTO plunger with rubber stopper for handle-free door opening. Includes adapter for screw-on surface mounting. Long stroke, extra strong spring, designed for furniture hinges with spring and without damping. For use with closing-spring hinges on very tall or heavy doors – overlay, half overlay, or inset. Adjustment range +/- 3 mm. Activation stroke 1.4 mm. Light grey plastic.
Set includes:
1x Push to open Pin plunger
1x upper adapter part
1x lower adapter part
