K-BLUM 20K2E00T Aventos HK-S Tip-on strong vers.dark grey without piston new cov
Product range code
393981
Description and parameters

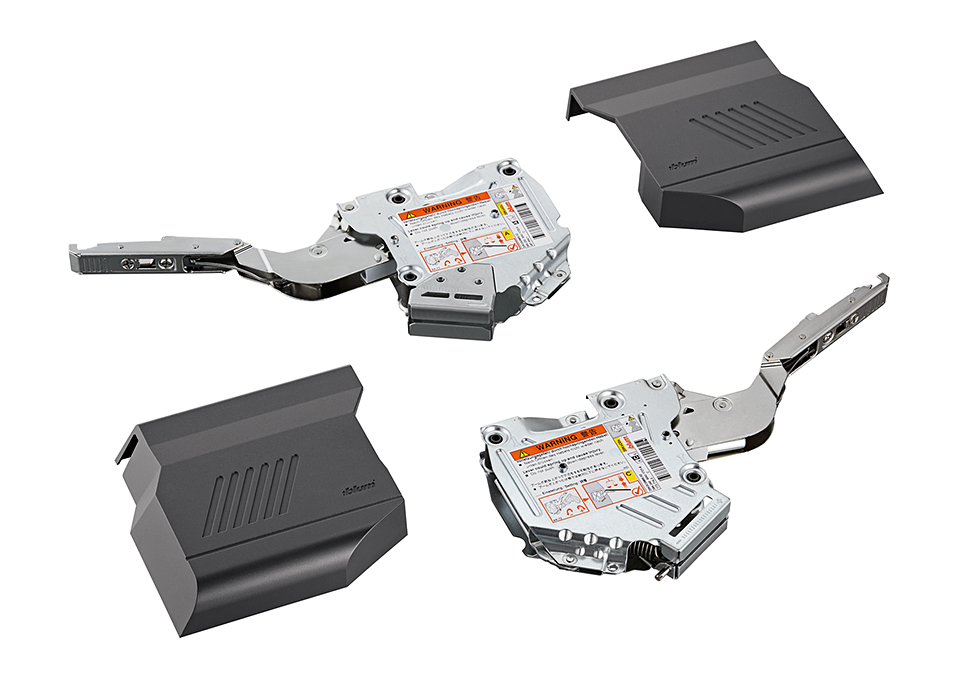

set includes: 2x lifter, L + P cover and assembly instructions. It is also necessary to order 2x 203387 for wooden or wide aluminum front or P13907 + P13908 for thin aluminum front. It is also necessary to add a TipOn piston, or including adapter.

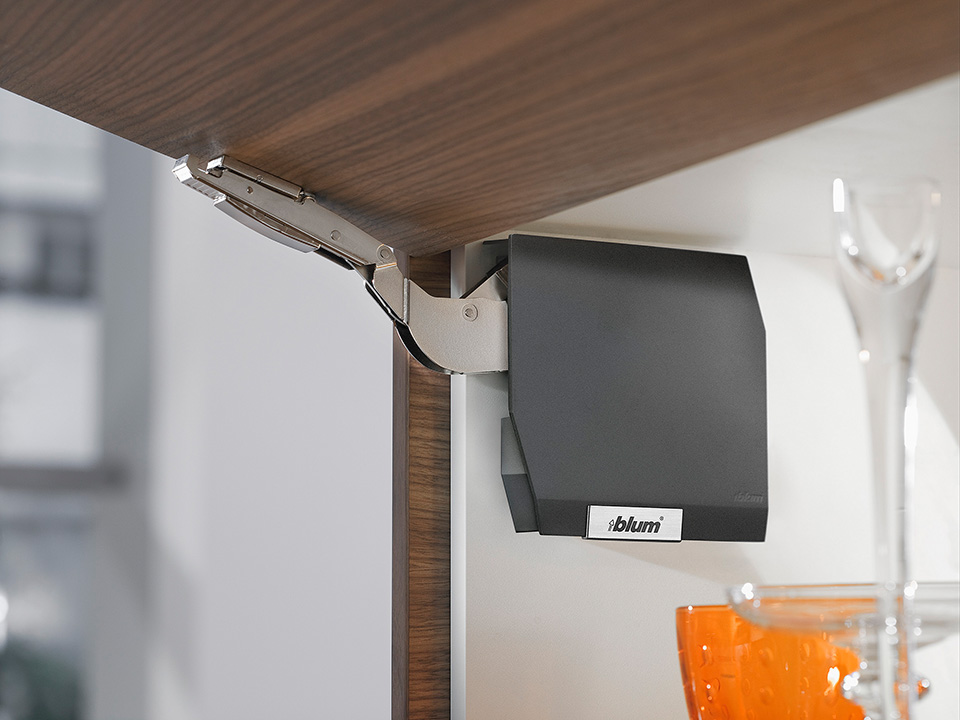

Designed for a small space, such as above a refrigerator or above a food cabinet. Front height up to 600mm, width up to 600mm (recommended) - according to the performance factor. For mounting it is necessary to use 10x screw 4x63mm.
Parameters
| Parameter | Value |
|---|---|
| Colour | Dark grey |
| Design | Handleless |
| Height of body (mm) | 400 - 400 |
| Type of front side | Undefined |
Composition of the set
| Title | Code | Quantity in set | |
|---|---|---|---|
|
BLUM 20K2E01T Aventos HK-S Tip-on strong | 211371 | 2 pcs |
|
StrongFix Screw PZ 4x35 with countersunk head white zinc PZ2 | 228929 | 10 pcs |
|
BLUM 0K8A21.21 new cover cap HK-S dark grey R | 392603 | 1 pcs |
|
BLUM 0K8A21.21 new cover cap HK-S dark grey L | 392602 | 1 pcs |
