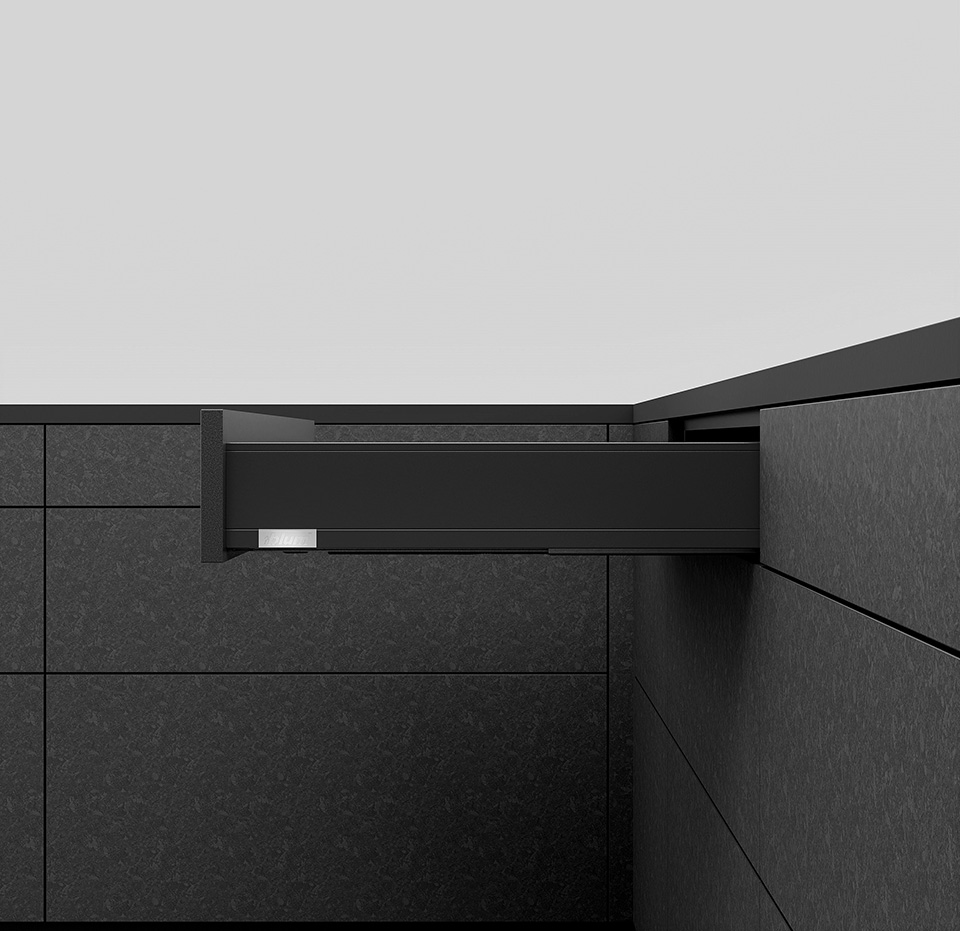

K-BLUM Legrabox M 270mm/40 kg, Tip-on, karbon black CS-M, expando
Product range code
499078
Novelty
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Kit includes fittings for assembling one drawer with handleless Tip-on opening, including the corresponding front fittings (screw / Expando / inner drawer).
It is recommended, for KB > 600mm necessary, to add synchronization: pinion set (227606) + shaft (227607). The length of the shaft is 1160mm, shortening LW-229mm. Without shortening, it is suitable for an external cabinet width of up to 1400mm.
Internal drawers must be supplemented with a front plate (shortening LW-126mm) without a groove (for drawers with reling) or with a groove (for drawers with glass) and, if necessary, a gripping element: cross reling (shortening LW-90mm), low glass (10 x 70 x LW-80) or high glass (10 x 138 x LW-80).
CS-M karbon black color.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Black |
| Headroom of drawer (mm) | 106 |
| Length (mm) | 270 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | Handleless |
| Sidewall height (mm) | 90.5 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
BLUM 750.2701T slide Legrabox 270mm/40kg Tip-on | 227420 | 1 pair | 39,16 EUR |
|
BLUM 770M2702S sidewall Legrabox M 270mm karbon black CS-M | 491312 | 1 pair | 23,9 EUR |
|
BLUM ZF7M70E2 front bracket Legrabox M Expando | 227544 | 2 pcs | 0,44 EUR |
|
BLUM ZB7M000S back fixings bracket Legrabox M karbon black CS-M | 491351 | 1 pair | 1,47 EUR |
