K-BLUM Servodrive set 3/9/650 mm

Product range code 388312

Set

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.

> S In stock

Only in central warehouse
Buy

Brand: Blum
Group code: 1020040204
Unit (piece): set

Divisibility: 1 set
Packaging: 1 set

Description and parameters

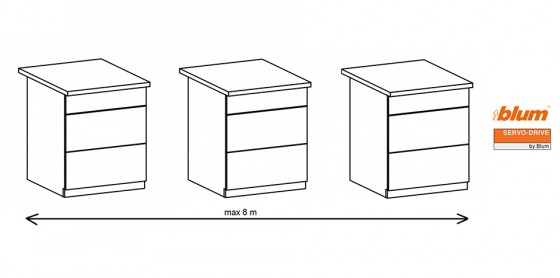

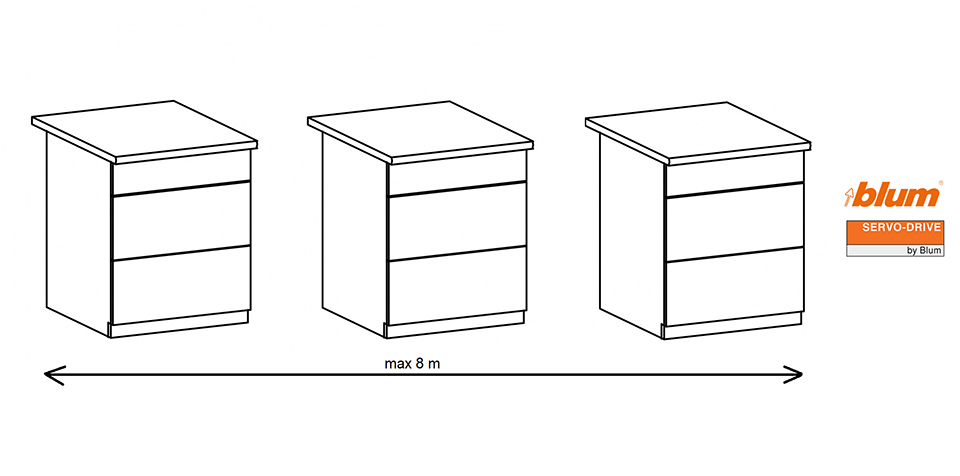

ServoDrive set for 3 bodies / 9 drawers / max. body height 650mm. Maximum distance of extreme carcasses 8m. The set contains all the necessary SERVO-DRIVE components for assembling functional electrically handle-free furniture (usable for Antaro, Legrabox, Tandem and Movento). Use dampers for combination with SERVO-DRIVE.

Composition of the set

Title	Code	Quantity in set
BLUM Z10NE030E transformer Servodrive 24W	129576	1 pcs
BLUM Z10A3000.03 fuel unit Servodrive	99100	9 pcs
BLUM Z10M200E SERVO-DRIVE flex, Europe, without UK, 2 m	99108	1 pcs
BLUM Z10K800AE SERVO-DRIVE electrical cable (8m)	99107	1 pcs
BLUM Z10V100E.01 clamp + 2x cover cap for Servodrive	132954	4 pcs
BLUM 993.0530 distance bumper, O 5 mm	99131	18 pcs
BLUM Z10T650AA SERVO-DRIVE bracket profile vertical, length=650 mm	99113	3 pcs
BLUM Z10NG000 SERVO-DRIVE power supply unit housing, Base mounting	991110	1 pcs
BLUM Z10D01EA.01 SERVO-DRIVE bracket prof. adapter vert., lower/back + cover cap	99102	3 set
