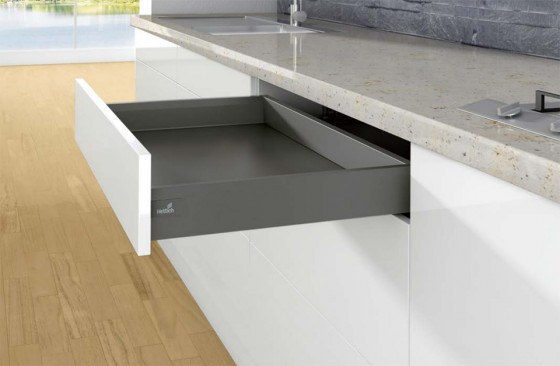

K-HETTICH ArciTech, front, anthracite, 300/94, 40kg, SiSy
Product range code
354624
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in anthracite color, drawer depth 300mm, side height 94mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fittings (dowel), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Anthracite |
| Headroom of drawer (mm) | 94 |
| Length (mm) | 300 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
HETTICH 9150485 ArciTech flexi set 94/300 mm anthracite | 235044 | 1 set | 23,81 EUR |
|
HETTICH 9239273 Actro 40kg full extension 300 mm tl18 mm, SiSy, L | 352605 | 1 pcs | 11,48 EUR |
|
HETTICH 9239274 Actro 40kg full extension 300 mm tl18 mm, SiSy, P | 352606 | 1 pcs | 11,48 EUR |
|
HETTICH 9121831 Arcitech back clip 94 L anthracite | 225913 | 1 pcs | 1,64 EUR |
|
HETTICH 9121832 Arcitech back clip 94 P anthracite | 225914 | 1 pcs | 1,64 EUR |
