K-HETTICH ArciTech, front, anthracite, 350/94/186, 40kg, SiSy
Product range code
354637
Set

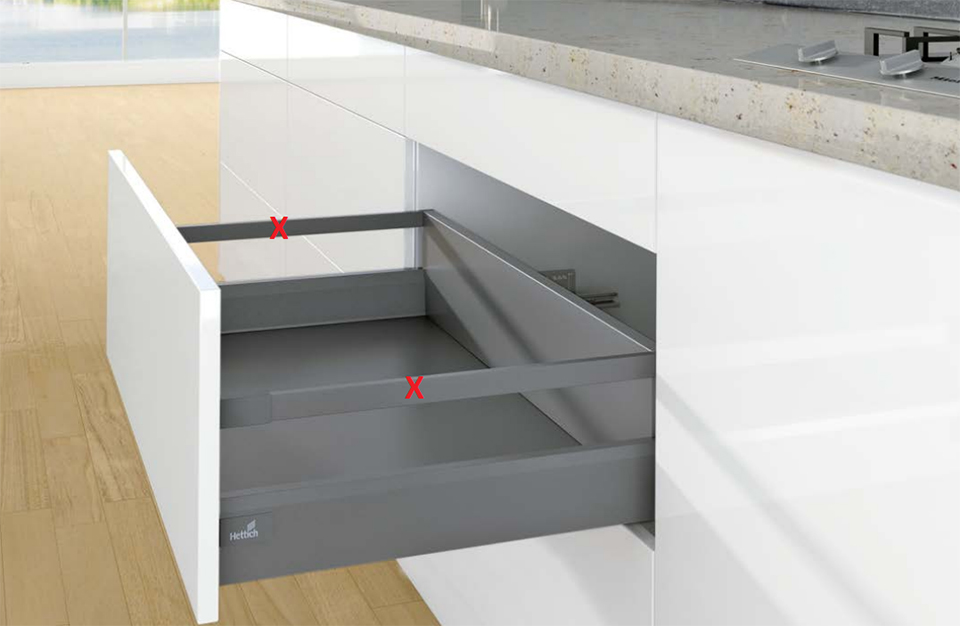

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in anthracite color, drawer depth 350mm, side height 94mm, total height 186mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front hardware (dowel), 2 pcs of Hettich covers, 2 pcs of back holders 186 mm. The drawer must be supplemented with rails, or TopSide, or DesignSide. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Anthracite |
| Headroom of drawer (mm) | 186 |
| Length (mm) | 350 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
HETTICH 9239277 Actro 40kg full extension 350 mm tl18 mm, SiSy, L | 352611 | 1 pcs | 11,48 EUR |
|
HETTICH 9239278 Actro 40kg full extension 350 mm tl18 mm, SiSy, P | 352612 | 1 pcs | 11,48 EUR |
|
HETTICH 9150486 ArciTech flexi set 94/350 mm anthracite | 235047 | 1 set | 23,81 EUR |
|
HETTICH 9121847 Arcitech back clamp 186 L anthracite | 225925 | 1 pcs | 3,68 EUR |
|
HETTICH 9121848 Arcitech back clamp 186 P anthracite | 225926 | 1 pcs | 3,68 EUR |
