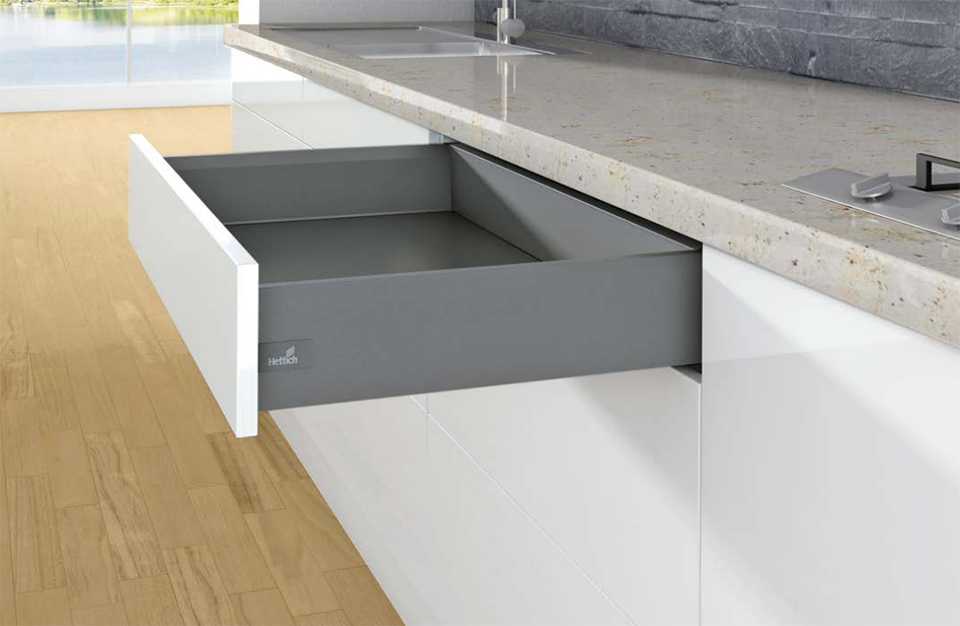

K-HETTICH ArciTech, front, anthracite, 650/126, 40kg, SiSy
Product range code
354753
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

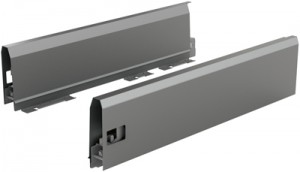

Fittings for ArciTech front drawer in anthracite color, drawer depth 650mm, side height 126mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fittings (dowel), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Anthracite |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 650 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
HETTICH 9150499 ArciTech flexi set 650/126 mm anthracite | 235084 | 1 set | 34,14 EUR |
|
HETTICH 9240895 Actro 40kg full extension 650mm thick 18mm SiSy set | 352646 | 1 pair | 28,41 EUR |
|
HETTICH 9121839 ArciTech back clamp 126 mm anthracite L | 225919 | 1 pcs | 2,35 EUR |
|
HETTICH 9121840 ArciTech back clamp 126 mm anthracite P | 225920 | 1 pcs | 2,35 EUR |
