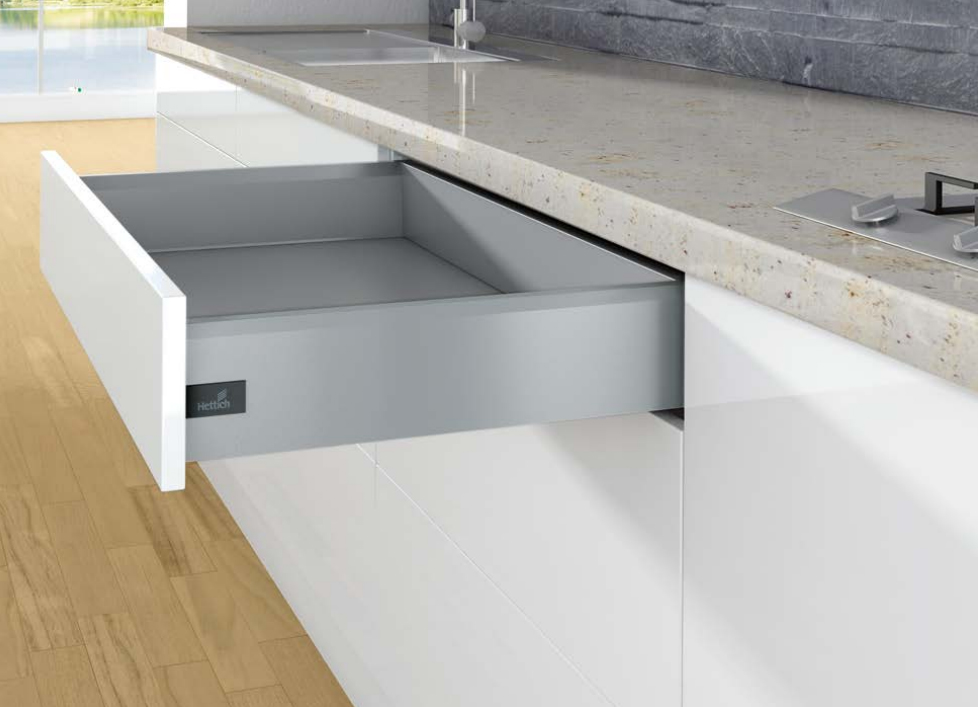

K-HETTICH ArciTech, front, silver, 650/126, 40kg, SiSy
Product range code
355035
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for front drawer ArciTech in silver color, drawer depth 650mm, side height 126mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fittings (dowel), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Silver |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 650 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
HETTICH 9150629 ArciTech flexi set 126/650 silver | 235086 | 1 set | 34,14 EUR |
|
HETTICH 9240895 Actro 40kg full extension 650mm thick 18mm SiSy set | 352646 | 1 pair | 28,41 EUR |
|
HETTICH 9121835 Arcitech back clip 126 L silver | 225915 | 1 pcs | 2,35 EUR |
|
HETTICH 9121836 Arcitech back clip 126 P silver | 225916 | 1 pcs | 2,35 EUR |
