K-HETTICH ArciTech, inner, anthracite, 350/94/186, 40kg, SiSy

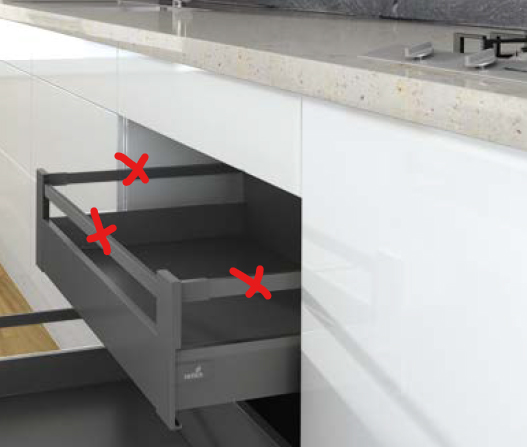

Fittings for ArciTech inner drawer in anthracite color, drawer depth 350mm, side height 94mm, total height 186mm, drawer load capacity 40kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets 186 mm (needs to be supplemented with a front plate order no. 301000, height 70 mm, length 2000 mm, shortening = body width-2xEB-62, also a front railing order no. 269684, length 2000 mm, shortening = internal width of the body-2xEB-66.5), 2 pcs of Hettich caps, 2 pcs of back holders 186 mm. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, it is necessary to add a synchronization rod (318279) shortening = body thickness-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Anthracite |
| Headroom of drawer (mm) | 186 |
| Length (mm) | 350 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
Hettich 9150486 Arcitech Side Rails 94, 350Mm, Flexi Set, Anthracite | 235047 | 1 set | 24,55 EUR |
|
Hettich 9239277 Actro Full Extension, 350Mm/40Kg, Side 18Mm, Left, Sisy | 352611 | 1 pcs | 11,58 EUR |
|
Hettich 9239278 Actro Full Extension, 350Mm/40Kg, Side 18Mm, Right, Sisy | 352612 | 1 pcs | 11,58 EUR |
|
Hettich 9121847 Arcitech Back Support 186, Left, Anthracite | 225925 | 1 pcs | 1,57 EUR |
|
Hettich 9121848 Arcitech Back Support 186, Right, Anthracite | 225926 | 1 pcs | 1,57 EUR |
|
Hettich 9140123 Arcitech Inner Drawer Front Brackets 186, Anthracite | 237458 | 1 set | 17,19 EUR |
