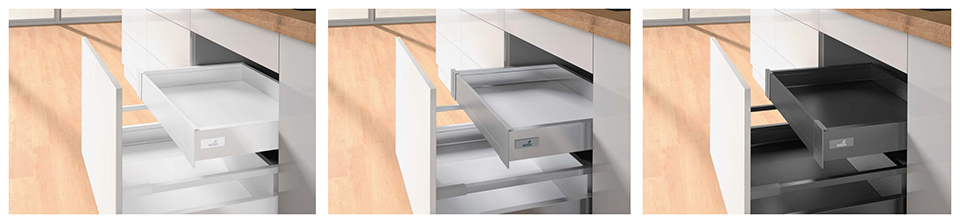

K-HETTICH InnoTech Atira, internal, silver, 520/70, 50kg, PTO
Complete set of fittings for the InnoTech Atira drawer as described in the product name - including drawers and front fitting (dowel). For 144mm and 176mm height drawers, longitudinal relingues are also included. For internal drawers, the transverse front elements (front plate, front reling) must be added. Push To Open (PTO) slides with catchless opening integrated in the slides. For enclosures wider than 600mm it is necessary to add synchronisation bar 318279 (length 2000mm, shortening = internal width of enclosure - 66mm) and 2 pcs of adapter 318282. For narrower housings the use is recommended.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Silver |
| Headroom of drawer (mm) | 70 |
| Length (mm) | 520 |
| Load capacity (kg) | 50 |
| Movement of extended drawer | With damping |
Composition of the set
| Title | Code | Quantity in set | |
|---|---|---|---|
|
HETTICH 9104107 Innotech front corner connection for inner drawers 70 | 105554 | 1 set |
|
HETTICH 9307115 Atira flexi set complete 520/70 silver | 486168 | 1 set |
|
HT 9143435 QUADRO V6+/520 EB10,5 Push to | 210394 | 1 set |
