K-HETTICH Quadro YOU set 500mm/30kg,conc.full ext.slides+catch,panel 16mm,SiSy
Product range code
551123
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

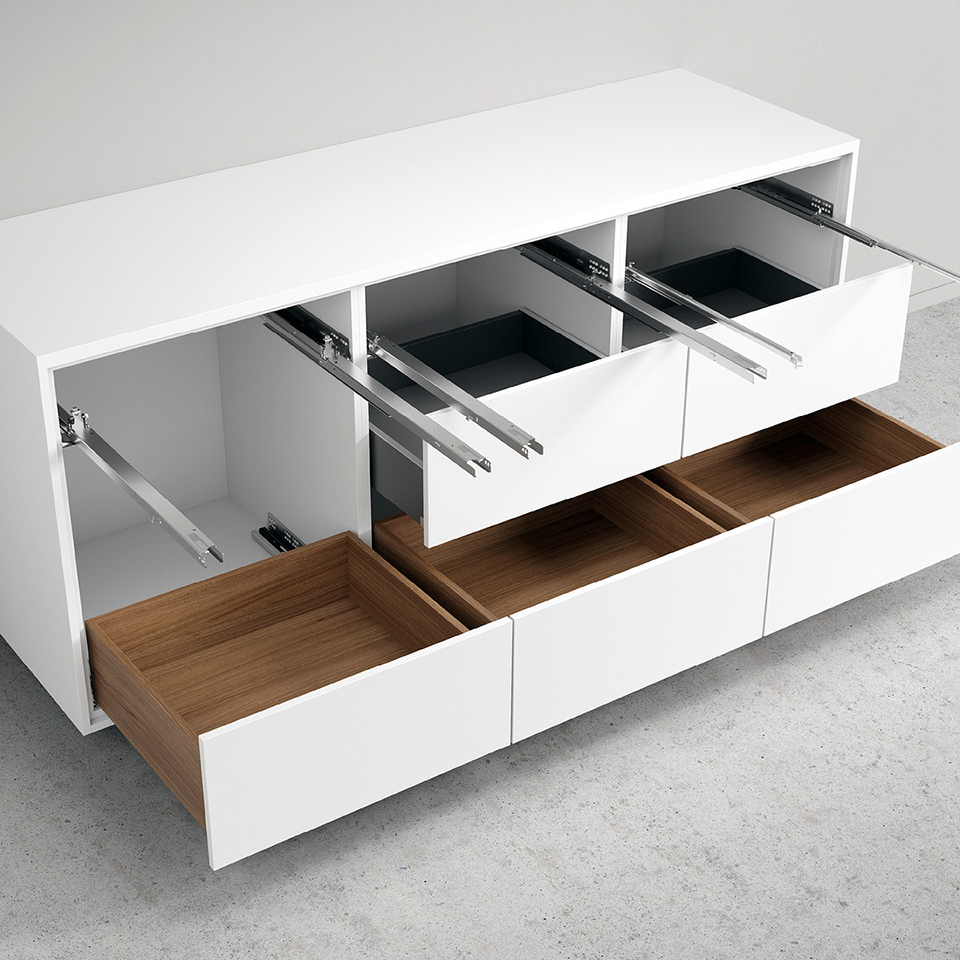

Complete set of fittings for manufacturing a wooden drawer with Quadro YOU full-extension slides. The set includes one pair of slides and one pair of front catches. The front catches allow tool-free height adjustment of the drawer.
Nominal length, load capacity, and function of the slide are specified in the product name:
SiSy = Soft-close mechanism, with the option to add PTO modules for handle-free opening
PTO = handle-free opening

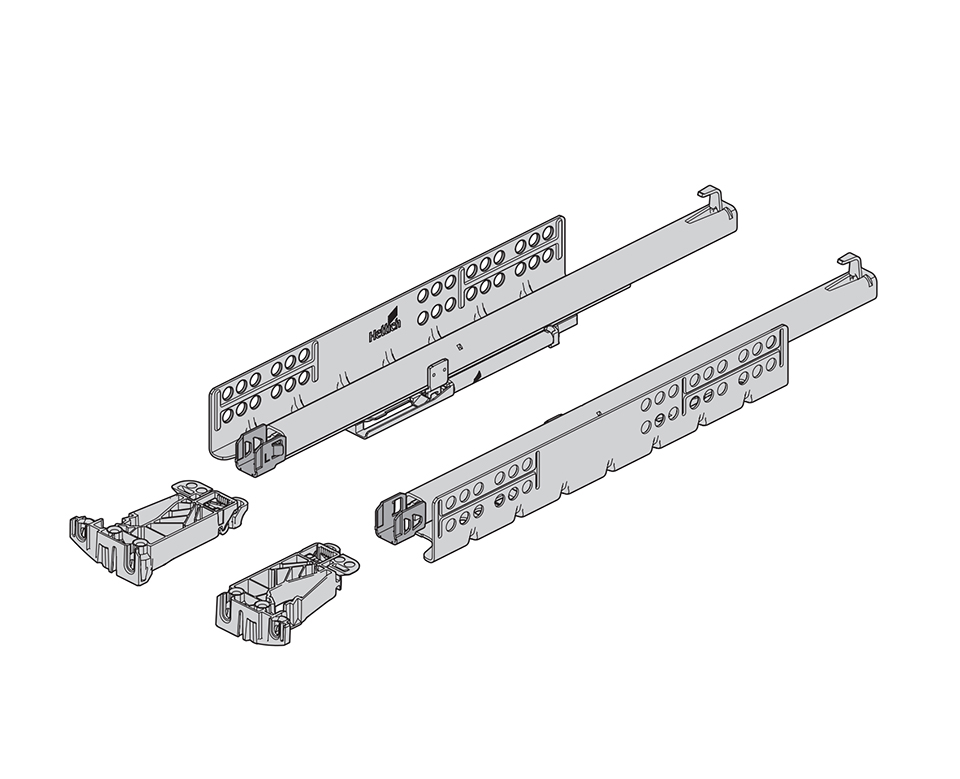

Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
Hettich 9256872 Quadro You Full Extension, 500Mm/30Kg, Left, Sisy | 397822 | 1 pcs | 12,19 EUR |
|
Hettich 9256873 Quadro You Full Extension, 500Mm/30Kg, Right, Sisy | 397823 | 1 pcs | 12,19 EUR |
|
Hettich 9257260 Quadro You Connector, Wooden Drawer, Left | 397829 | 1 pcs | 0,82 EUR |
|
Hettich 9257261 Quadro You Connector, Wooden Drawer, Right | 397830 | 1 pcs | 0,82 EUR |
