KES FREEflap forte E white
-
> S In stock
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 20 set

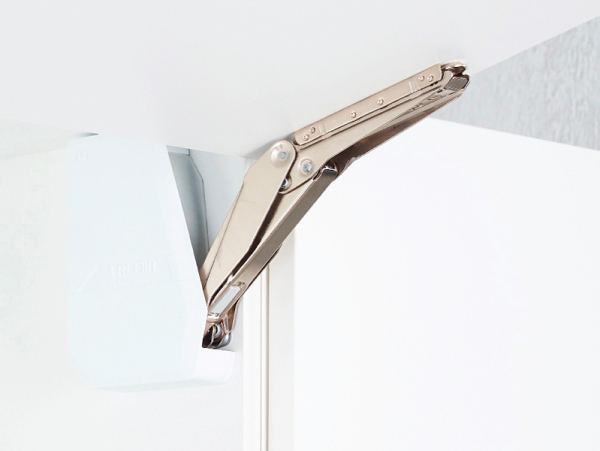

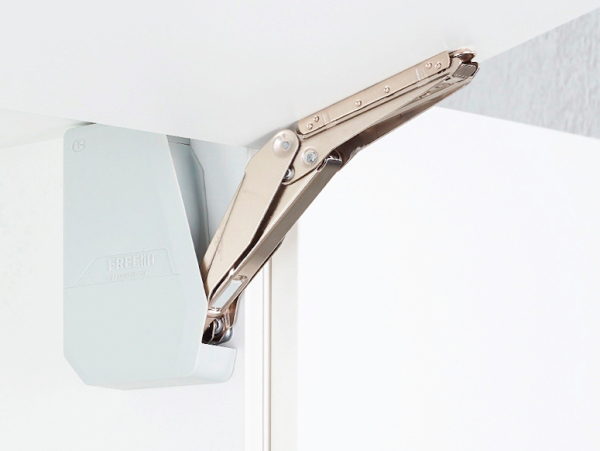

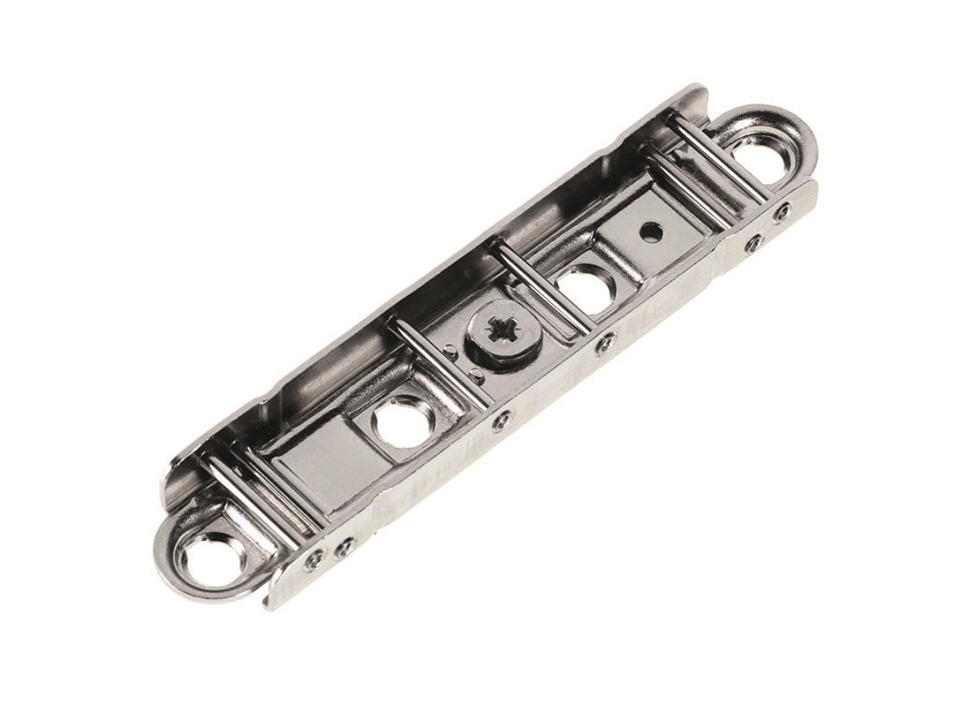

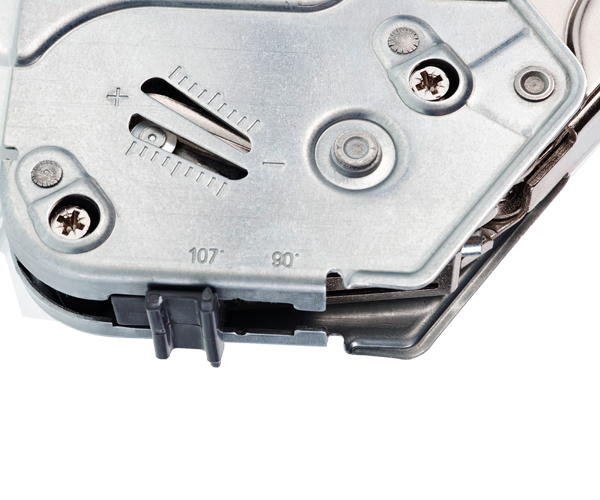

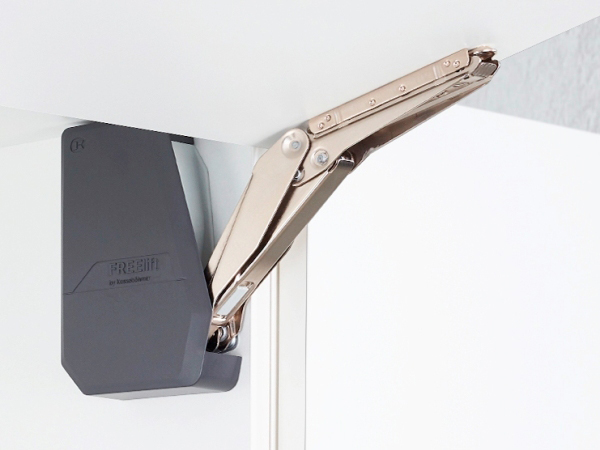

Lift fitting with velvet movement and easy installation. Opening angle 107 °. The set includes a pair of hinges, white caps, front fittings. Depending on the weight and height of the front, you can determine the appropriate tilting force.

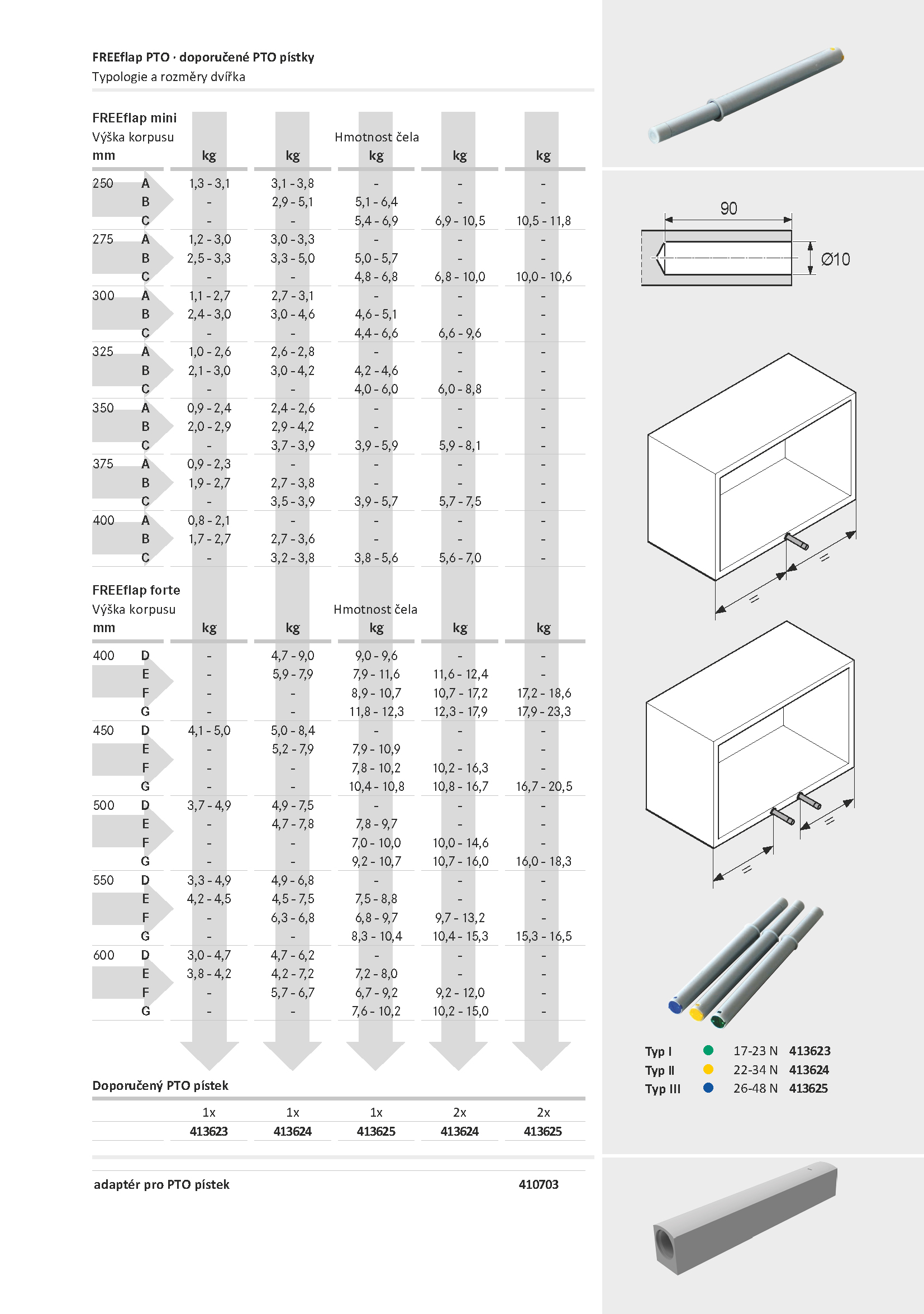

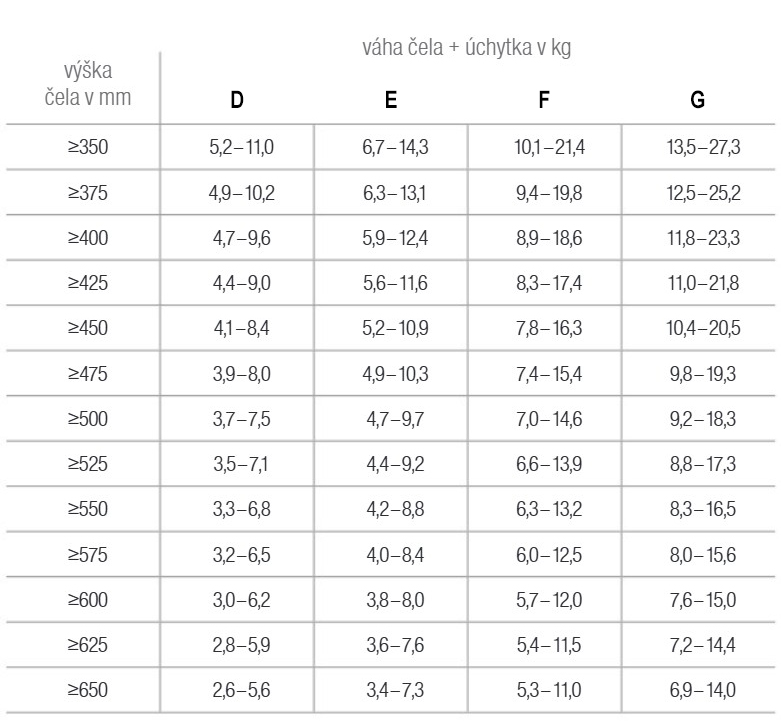

For forehead height 350mm and weight 6.7 - 14.3kg. For forehead height 375mm and weight 6.3 - 13.1kg. For forehead height 400mm and weight 5.9 - 12.4kg. For forehead height 425mm and weight 5.6 - 11.6kg. For forehead height 450mm and weight 5.2 - 10.9kg. For forehead height 475mm and weight 4.9 - 10.3kg. For forehead height 500mm and weight 4.7 - 9.7kg. For forehead height 525mm and weight 4.4 - 9.2kg. For forehead height 550mm and weight 4.2 - 8.8kg. For forehead height 575mm and weight 4.0 - 8.4kg. For forehead height 600mm and weight 3.8 - 8.0kg. For forehead height 625mm and weight 3.6 - 7.6kg. For forehead height 650mm and weight 3.4 - 7.3kg.
FREEflap videomanual
Parameters
Parameter | Value |
---|---|
Colour | White |
Design | Damped |
Height of body (mm) | 350 - 650 |
Type of front side | Wood, wide alu frame |
