KNAPP K070 DUO 30 ML suspension joint with side clearance
DUO 30 ML compensates for the difference in inaccurate measurement and facilitates assembly with inaccurate drilling.

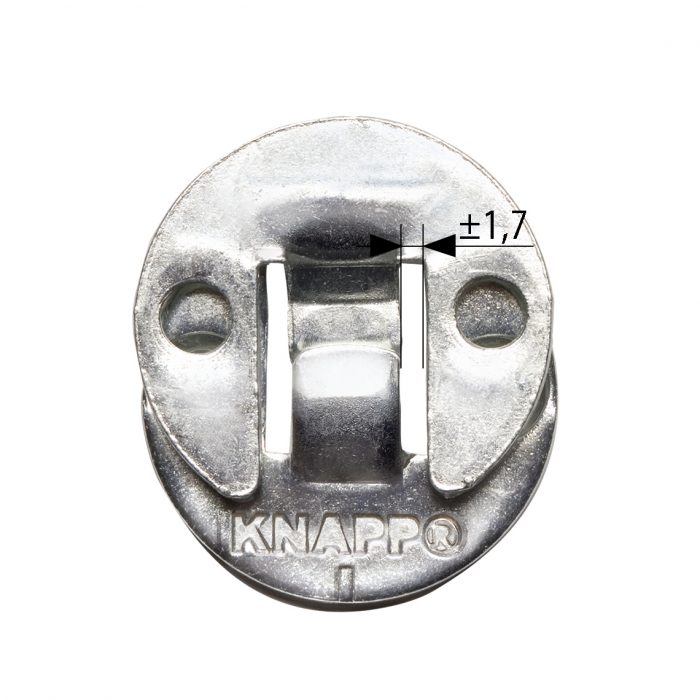

Side clearance allows movement in all directions.

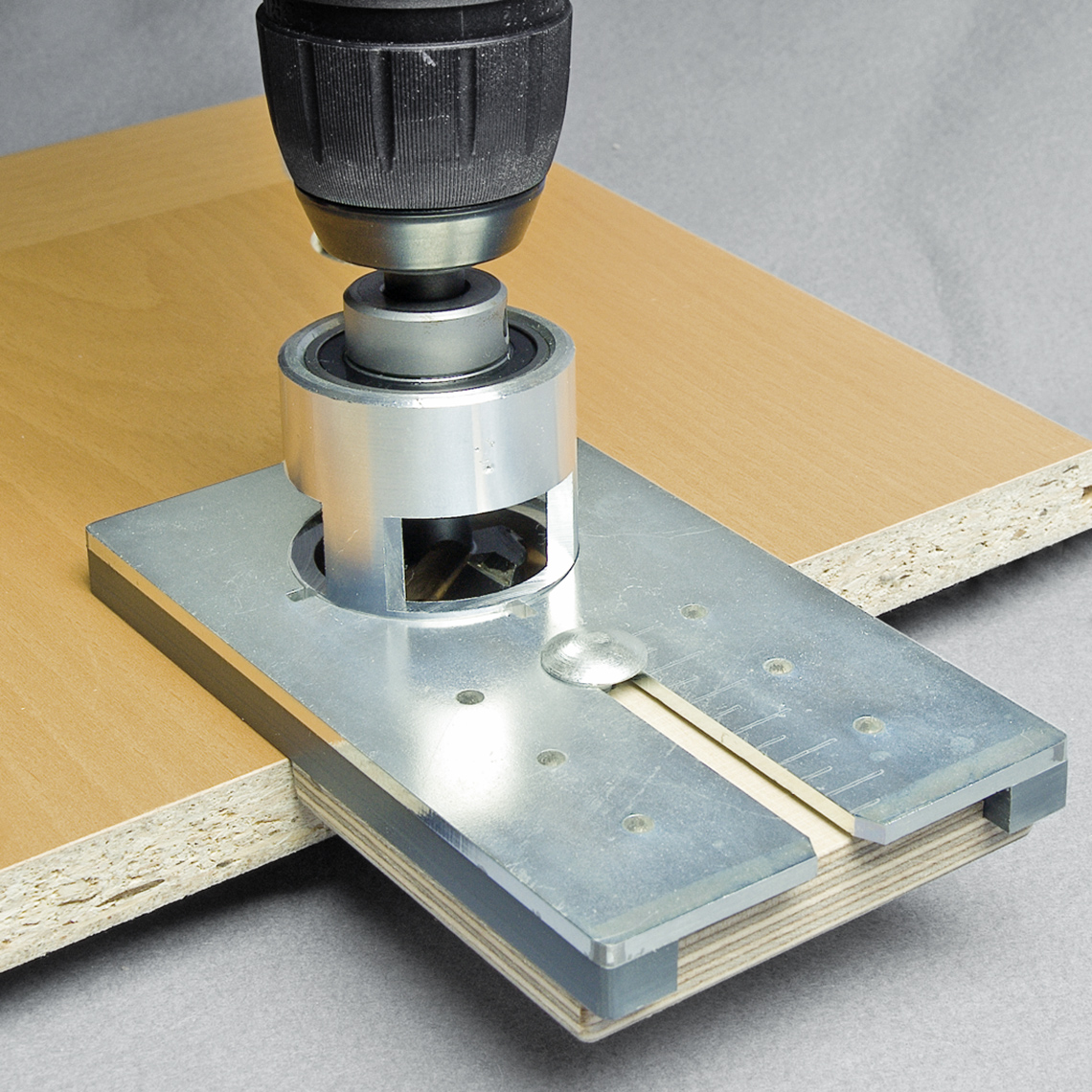

Both parts to be joined are drilled with a special drill with a diameter of 30 mm and a depth of 3 mm.

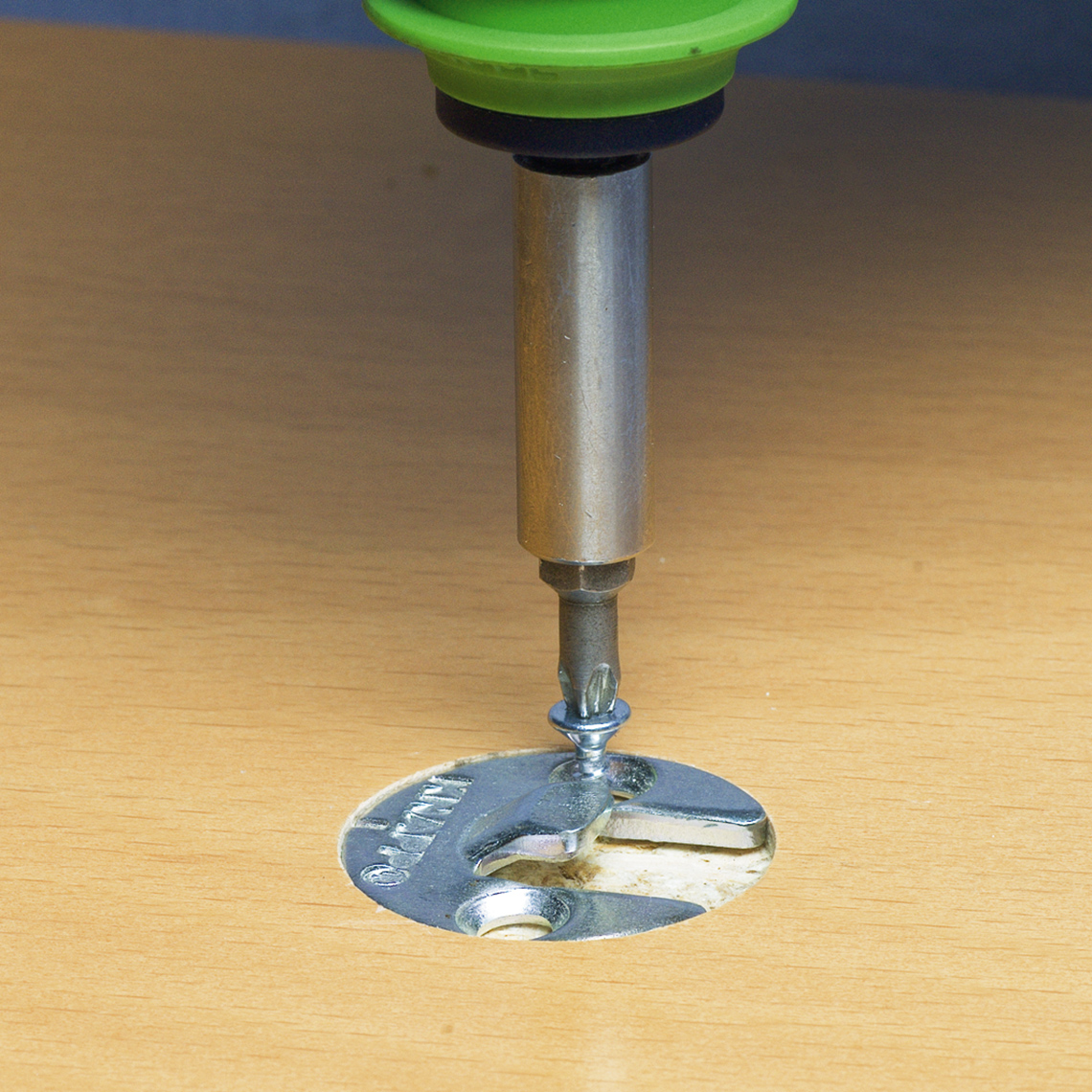

After drilling, both parts of the joint are screwed against each other with countersunk head screws.

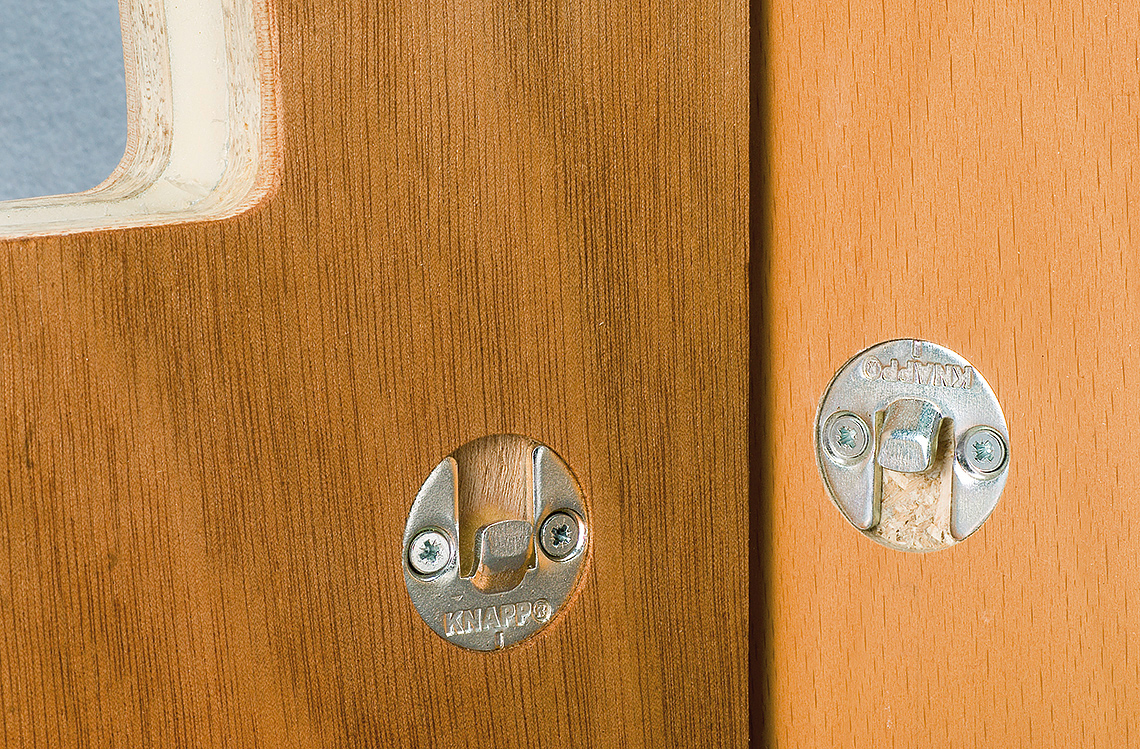

When hanging and pushing, both parts are connected.
The joint can be disassembled!
Related documents
3D model (dxf) Assembly instructions 3D model (step) 3D model (step) 3D model (stp)Parameters
| Parameter | Value |
|---|---|
| Material | Metal |
| Size of slat | Other |
