Omm Atc311.12.53 Adjustable Cabinet Hanger For Milling In Into Side
Product range code
347152
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Related product range (accessories) (1)

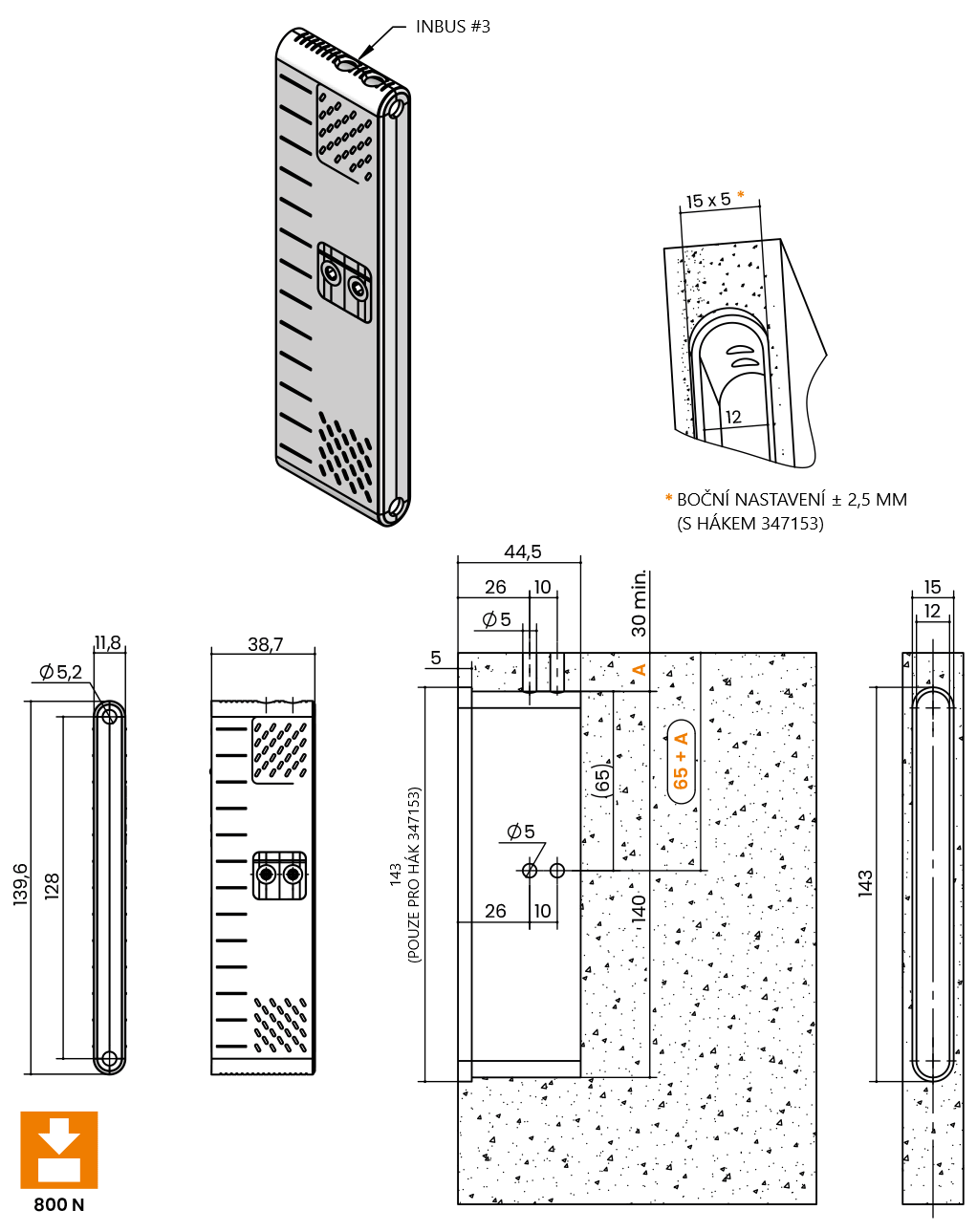

Hanging rectification fitting for milling into the edge of the body. The minimum thickness of the body wall is 18 mm. Can be used on upper cabinets and on shelves with vertical sides. Load capacity 160 kg/pair. Access to the rectification screws possible from 3 sides - left, right and top.
Height adjustment +/-7.5mm, lateral adjustment +/-2.5mm, depth adjustment -0/+15mm.
Hanging hook 347153 (B =26mm) must be purchased separately.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Mounting into material | To be milled |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for getting a better price
Order the whole package and your price per pc (pcs) will be %price% |
347153 |
In stock
|
2 pcs / 1 pcs |
0,93 EUR
/ pcs
1,12 EUR incl. VAT
|
|
