Píst pro výsuv monitoru/TV 685mm/200N
Product range code
389665
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

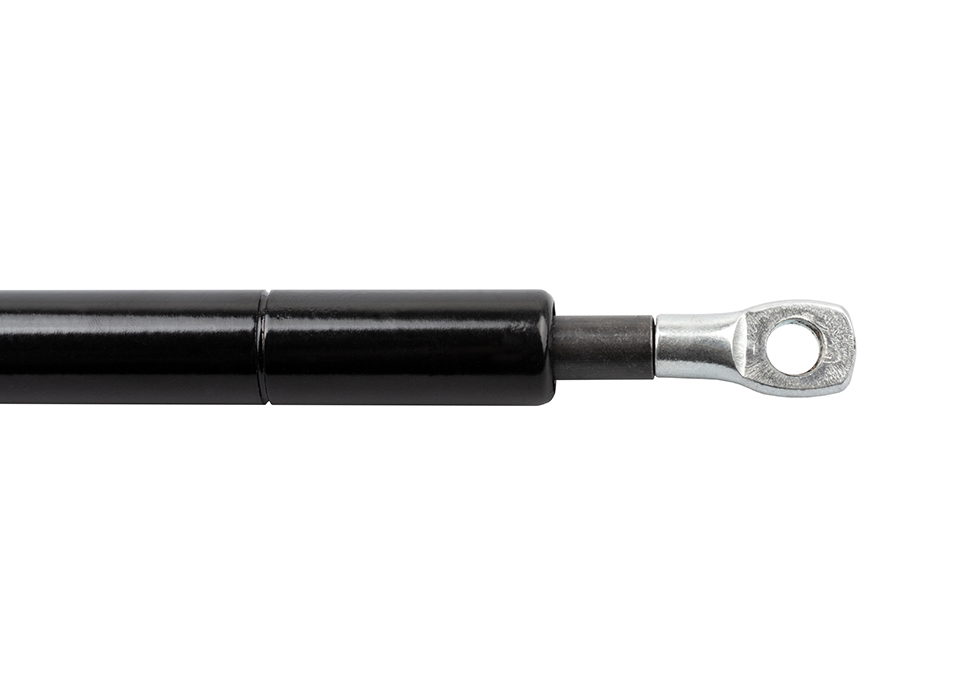

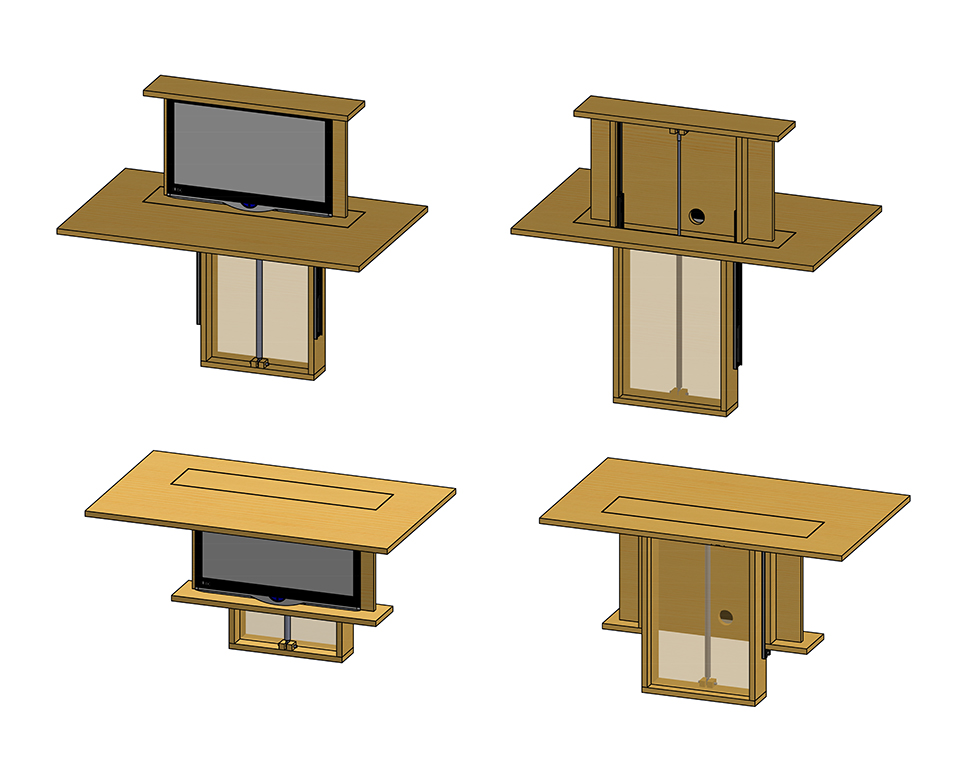

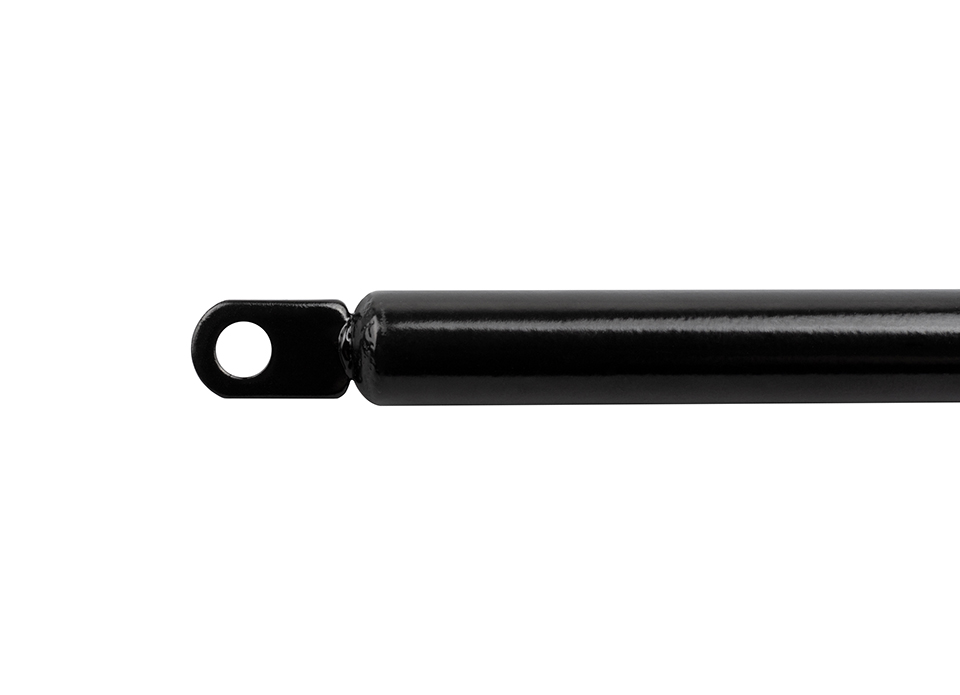

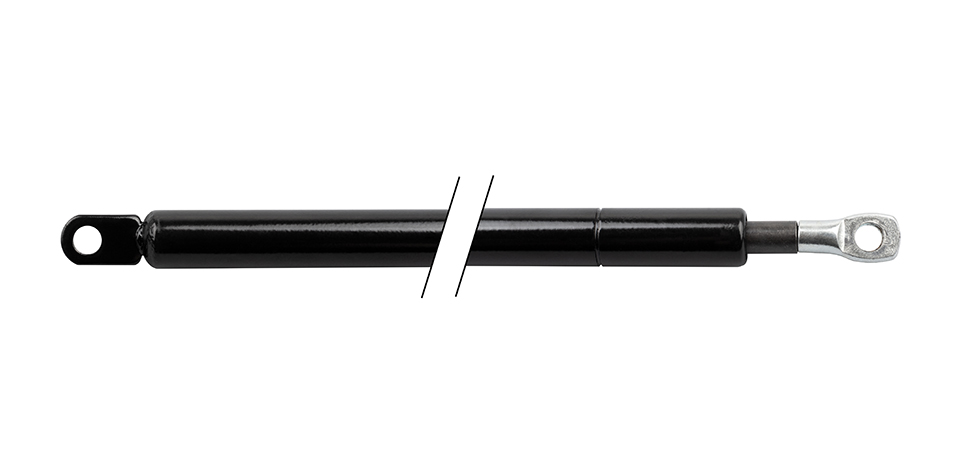

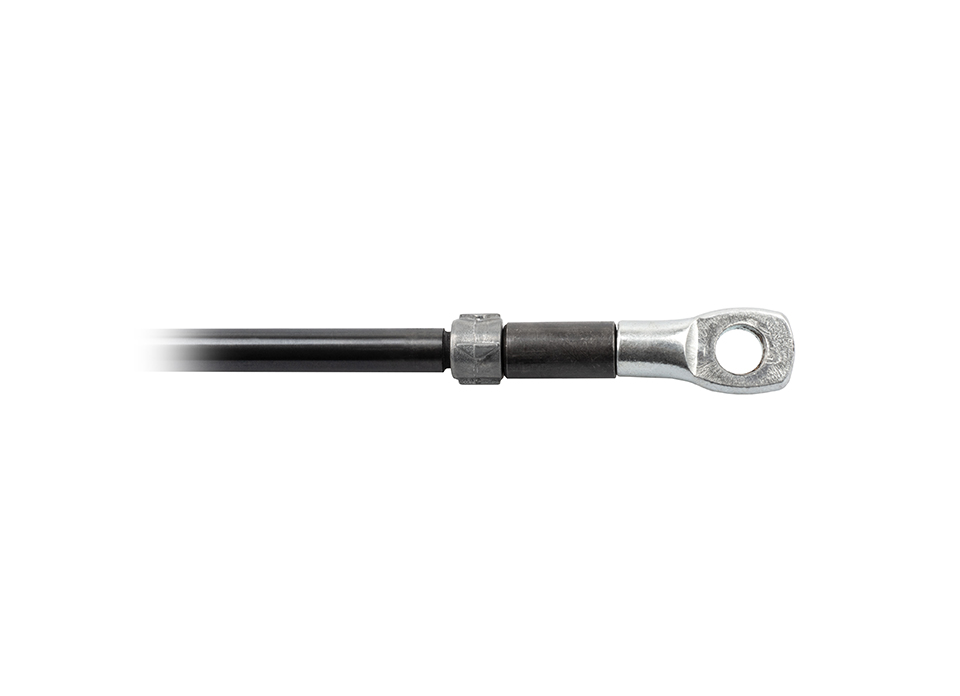

Gas spring for pulling out a monitor or TV with a handleless opening. Axial spacing of installation eyelets in extended position 685mm, in retracted position 410mm, extension length 275mm, activation press length approx. 10mm. Piston body diameter 18mm, piston rod diameter 10mm. Force 200N (approx. 20kg). Ideal in combination with 350mm ball-bearing slides (92002). Smart product: extend TV, monitor, anything you want to keep hidden, without the need to connect to electricity. The combination of these gas springs and full-extension ball-bearing slides lets you do just that, and at a great price. Everything works on a mechanical basis.
Related documents
Technical descriptionParameters
| Parameter | Value |
|---|---|
| Colour | Black |
| Design | Handleless |
| Type of front side | Wood |
