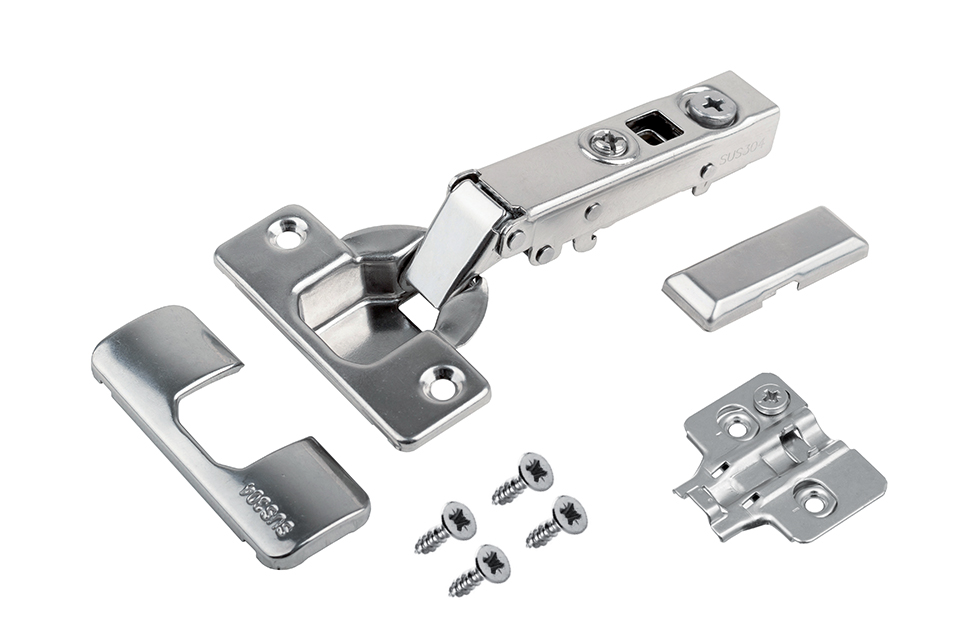

STRONG stainless steel overlay hinge 110° with damping /3D pad and caps, clip

Product range code 405459

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.

> S In stock

Only in central warehouse
Buy

Brand: Strong
Group code: 101001010101
Unit (piece): set

Divisibility: 1 set
Packaging: 100 set

Description and parameters

Stainless steel complete - clip-on overlay hinge on screw with integrated damping, with 3D H0 washer, with arm and cup caps and stainless steel screws (4 pcs). Opening angle 110°. Cup drilling O35mm, drilling pattern 45/9.5mm. Gap adjustment between door and body with eccentric. Suitable for wet environments with higher probability of corrosion. Steel designation according to Japanese standard is SUS304. Other markings. - 18/10 stainless steel (Cr/Ni). - 1.4301 (EU). - X5CrNi18-10 (DIN). - Typical chemical composition [%]:. C

Parameters

Parameter	Value
Angle of opening	110
Mounting into material	Screw
Mounting on washer	To jam
