Strongride Synchro 2D Concealed Full Extension 300Mm/35Kg Handleless Open. Push
Product range code
399221
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Hidden full extension slide for wooden drawers for handleless opening with synchronised centre section, including 2D front clips. Drawer material thickness up to 19mm. Maximum recommended drawer width is 400mm

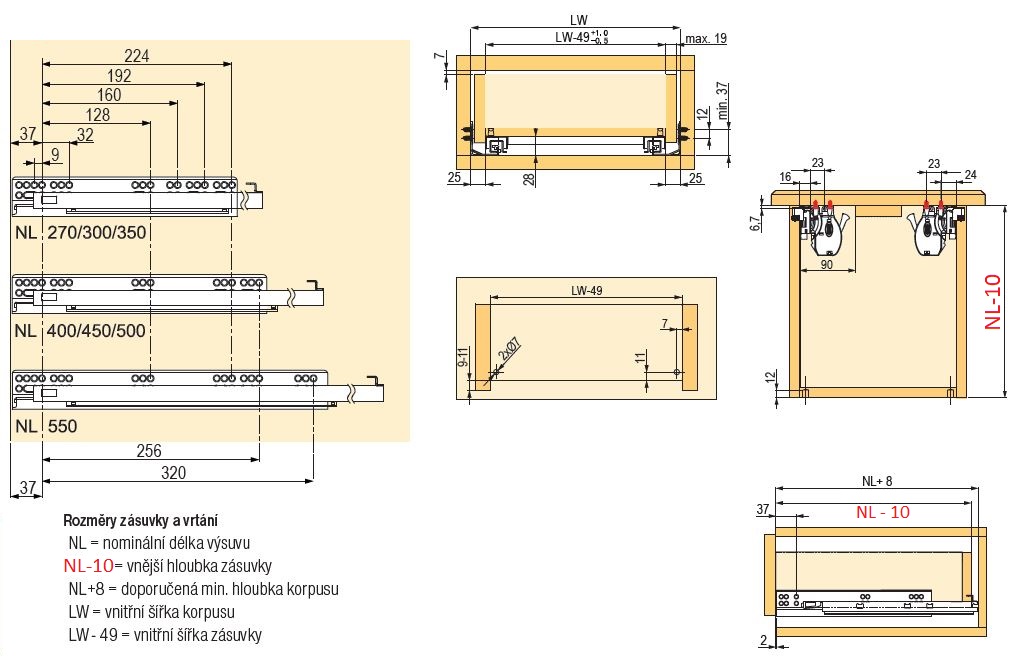

Drawer length = NL-10 (nominal length)
nominal length 300mm, load capacity 35kg.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 300 |
| Load capacity (kg) | 35 |
| Movement of extended drawer | Handleless |
| Type of extension guide | Full extension slide |
