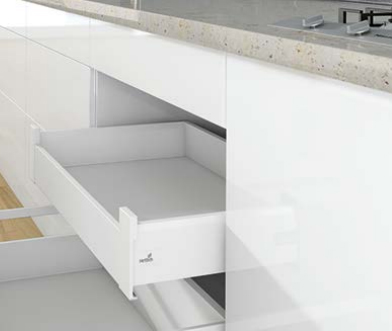

K-HETTICH ArciTech, indoor, white, 650/126, 60kg, SiSy
Product range code
354591
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Product sold out
- Brand
- Hettich
- Group code
- 1020050401
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 1 set
Description and parameters
Fittings for the internal ArciTech drawer in white, drawer depth 650mm, side height 126mm, drawer load capacity 60kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets (needs to add a front plate order no. 301001, height 70 mm, length 2000 mm, shortening = inner width of the body-2xEB-62), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279), shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 650 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
Hettich 9149278 Arcitech Side Panel 126, 650Mm, Flexi Set, White | 235148 | 1 set | 37,74 EUR |
|
HETTICH 9240900 Actro 60kg 650 mm tl18 mm SiSy L+P | 352649 | 1 pair | 39,16 EUR |
|
Hettich 9121837 Arcitech Back Support 126, Left, White | 225917 | 1 pcs | 1,26 EUR |
|
Hettich 9121838 Arcitech Back Support 126, Right, White | 225918 | 1 pcs | 1,26 EUR |
|
HETTICH 9123087 ArciTech connector set for inner drawer front 126mm white | 226262 | 1 pcs |
