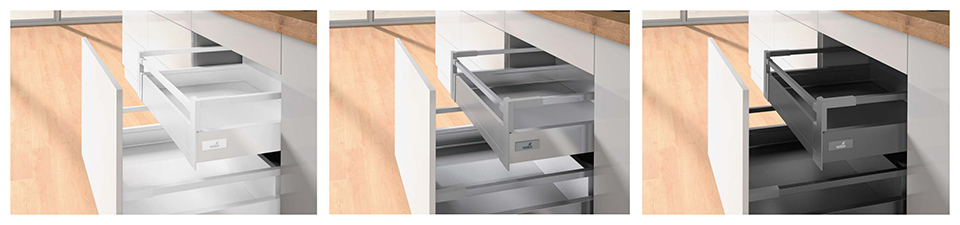

K-HETTICH InnoTech Atira, internal, white, 420/70/144 with railing, 30kg, PTO
Complete set of fittings for the InnoTech Atira drawer as described in the product name - including drawers and front fitting (dowel). For 144mm and 176mm height drawers, longitudinal relingues are also included. For internal drawers, the transverse front elements (front plate, front reling) must be added. Push To Open (PTO) slides with catchless opening integrated in the slides. For enclosures wider than 600mm it is necessary to add synchronisation bar 318279 (length 2000mm, shortening = internal width of enclosure - 66mm) and 2 pcs of adapter 318282. For narrower housings the use is recommended.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 144 |
| Length (mm) | 420 |
| Load capacity (kg) | 30 |
| Movement of extended drawer | With damping |
Composition of the set
| Title | Code | Quantity in set | |
|---|---|---|---|
|
HT 9143492 QUADRO V6/420 EB10,5 Push to | 210434 | 1 set |
|
HETTICH 9293517 Atira spojky čela vnitřní zásuvky 144mm bílá | 467389 | 1 set |
|
HETTICH 9307219 Atira flexi set complete 420/144 white reling front bracket | 489847 | 1 set |
| Title | Code | Availability |
Divisibility/ packaging |
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
11109 |
>
S
In stock
|
1,000 pcs / 1,000 pcs |
|
|
| Title | Code | Availability |
Divisibility/ packaging |
|
|
Set
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
358055 |
>
O
On demand
|
1 set / 1 set |
|
|
