K-Hettich Wingline S Pull2Ms, 3 Kg, 600Mm, 3 Hinges P, Left Grey
Product range code
504660
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

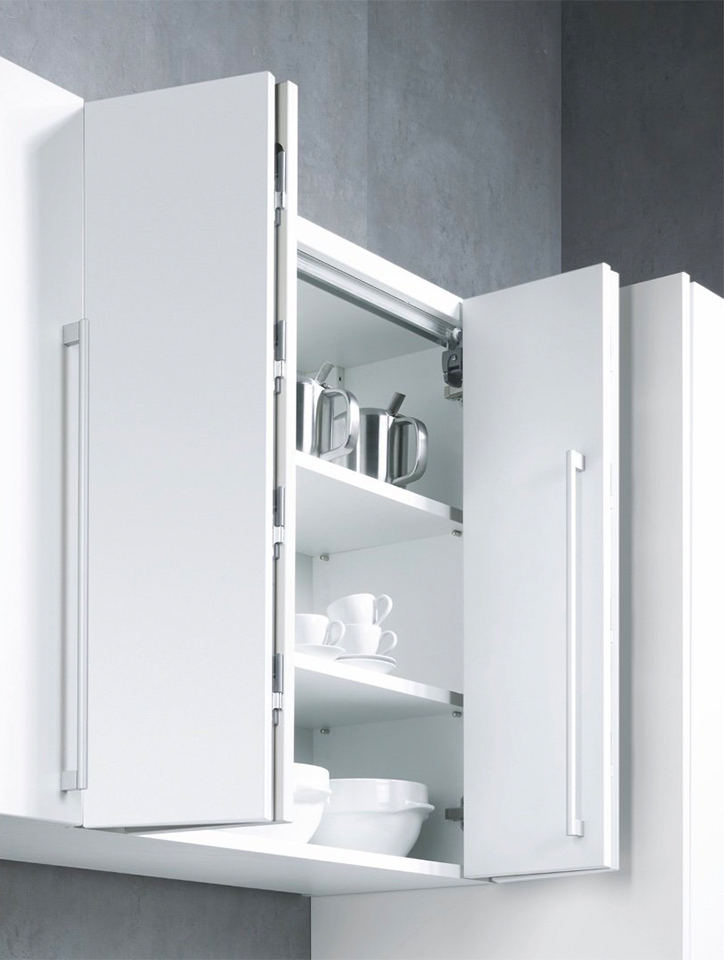

Complete set of WingLine S Pull to move fittings for light doors up to 3 kg with opening on the left including the opening mechanism. The door opens fully after pulling the handle to an angle of approx. 35°, the door closes softly. The set does not include a lower guide. For wing of width 250 - 300 mm and of height up to 1000 mm. Amount of hinges between the doors - 2 pcs to press on. Colour grey. It is necessary to purchase the recommended side hinges - see related assortment. Assembly instructions can be found on our website for each item of this set.
Available while stocks last at the supplier. Alternative/s provided.
Parameters
| Parameter | Value |
|---|---|
| Colour | Gray |
| Fill (mm) | 16 - 22 |
| Load capacity (kg) | 3 |
| Maximum leaf width (mm) | 300 |
| Orientation | Left |
| Type | WingLine S Pull |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
HETTICH 9283230 WingLine S Pull to move silent gray left | 409297 | 1 set | |
|
HETTICH 9238120 WingLine L/S Pull2MS mechanism for ligHETTICH doors gray left | 409279 | 1 set | |
|
HETTICH 9283265 WingLine S shock absorber gray | 409309 | 1 pcs | 0,69 EUR |
|
HETTICH 9279130 WingLine S upper guide profile 1200 mm anodized aluminum | 409312 | 1 pcs | 15,11 EUR |
|
HETTICH 9278787 WingLine L folding curtains 3 pcs to press | 409248 | 1 set | 32,64 EUR |
