K-Hettich Wingline S Pull2Ms, 5 Kg, 1800Mm, 6 Hinges P, Right+Left Black
Product range code
504700
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

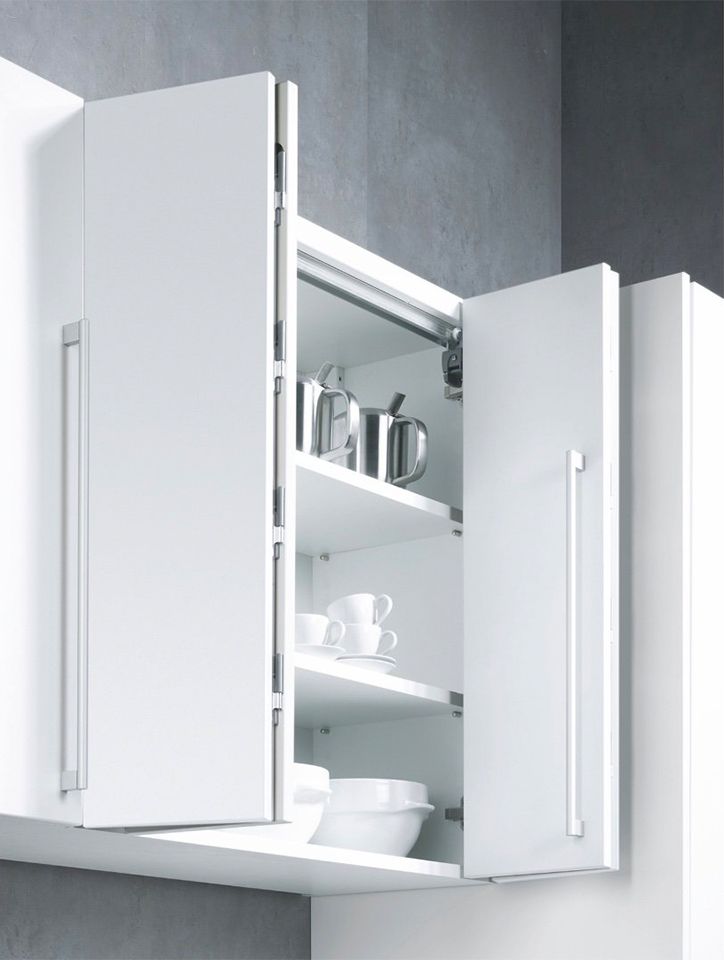

Complete set of WingLine L Pull to move hardware for medium-weight doors 3 - 5 kg with right and left opening including opening mechanism. The door opens fully after pulling the handle to an angle of approx. 35°, when closed it closes softly. It does not contain the bottom line. For wing width 300 - 450 mm and up to a height of 1000 mm. Number of hinges between the doors - 6 pcs to press. Color black. It is necessary to purchase the recommended side curtains, see related assortment. Assembly instructions can be found on our website for the individual products of this set.
Available while stocks last at the supplier. Alternative/s provided.
Parameters
| Parameter | Value |
|---|---|
| Colour | Black |
| Fill (mm) | 16 - 22 |
| Load capacity (kg) | 5 |
| Maximum leaf width (mm) | 450 |
| Orientation | Right+Left |
| Type | WingLine S Pull |
Composition of the set
| Foto | Title | Code | Quantity in set | Price excluding VAT |
|---|---|---|---|---|
|
HETTICH 9283240 WingLine S Pull to move silent black left | 409299 | 1 set | |
|
HETTICH 9283239 WingLine S Pull to move silent black right | 409302 | 1 set | |
|
HETTICH 9277696 WingLine L/S Pull2MS mechanism for medium-duty doors black L | 409287 | 1 set | |
|
HETTICH 9277697 WingLine L/S Pull2MS mechanism for medium-duty doors black P | 409290 | 1 set | |
|
HETTICH 9279163 WingLine S upper guide profile 2400 mm black | 409317 | 1 pcs | |
|
HETTICH 9283268 WingLine S shock absorber black | 409311 | 2 pcs | |
|
HETTICH 9278787 WingLine L folding curtains 3 pcs to press | 409248 | 2 set | 32,64 EUR |
