Fittings for interior sliding door 1391/230, 40kg
Product range code
87354
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

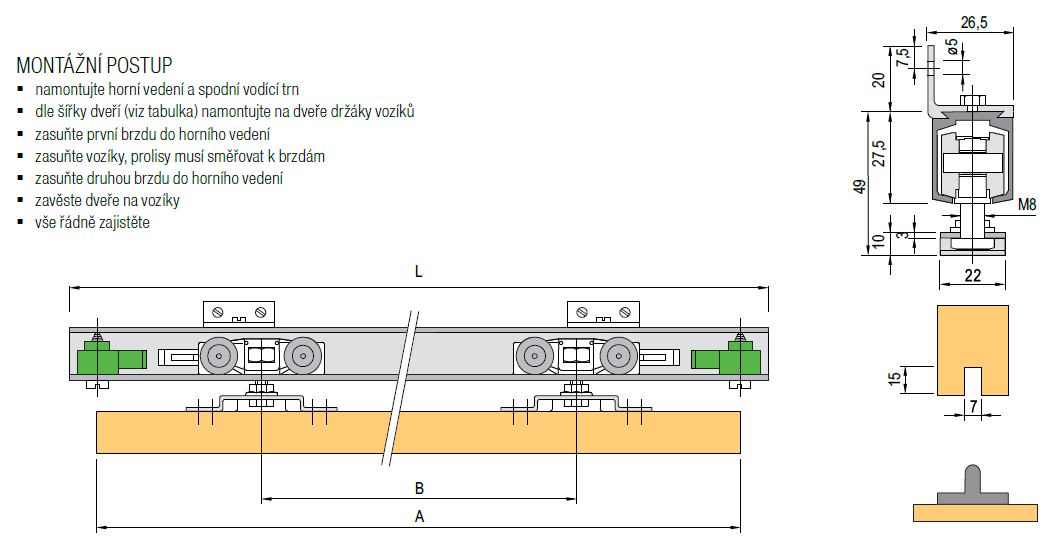

Fittings for interior sliding door (1 wing) (1110 - 1300 mm) with a brake. Including top guide of length 2300 mm. Load capacity max.: 40 kg. Alternative on stock - set of fittings with soft-closing - 393306.
Parameters
| Parameter | Value |
|---|---|
| Damping | No |
| Leaf loading (kg) | 40 |
| Leaf thickness (mm) | 22 - 40 |
| Length of guide (mm) | 2,300 |
