HETTICH 16176 Klassik D 450-507 LP
Product range code
104124
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

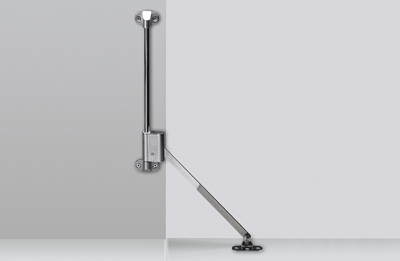

Klassik D hinged door brake with L 258 D bearing. Body clearance 450 - 507 mm. Load capacity 4 kg for one brake, 8 kg for 2 brakes. Guide rod, pull rod and foot: nickel-plated steel, body and bearing: zinc die-cast. The order number refers to the left version, by relocating the foot we can achieve the right version.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Colour | Silver |
| Design | Mechanic |
| Height of body (mm) | 450 - 507 |
| Type of front side | Wood, wide alu frame |
