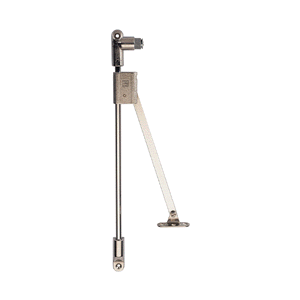

HETTICH 21698 Klassik D 290-340 P with magnet
Product range code
104132
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

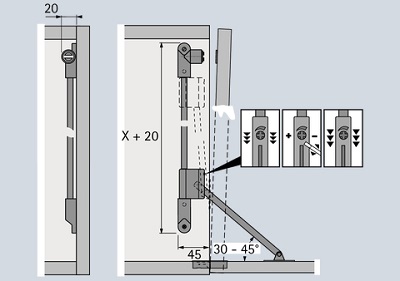

P-right brake. Load capacity 4 kg per brake. Cabinet clearance 290 - 340 mm. Important: the angle between the draw bar and the open door must be 30 - 45 °. With the door open, the brake body must rest on the lower bearing.
Parameters
| Parameter | Value |
|---|---|
| Colour | Silver |
| Design | Mechanic |
| Height of body (mm) | 290 - 340 |
| Type of front side | Wood, wide alu frame |
