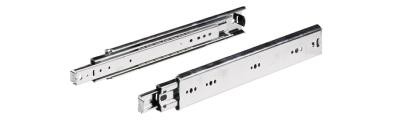

HETTICH 41392 KA 4620 400 mm ball extension EB19 90 kg
HETTICH 41392 KA 4620 400 mm ball extension EB19 90 kg
Product range code
104101
Description and parameters
Full ball extension with overhang for wooden drawers, mounting width 19 mm, load capacity 90 kg. With a stop and a safety device against unwanted ejection. Using the lever, the drawer can be divided and the drawer can be easily removed from the body.
Related documents

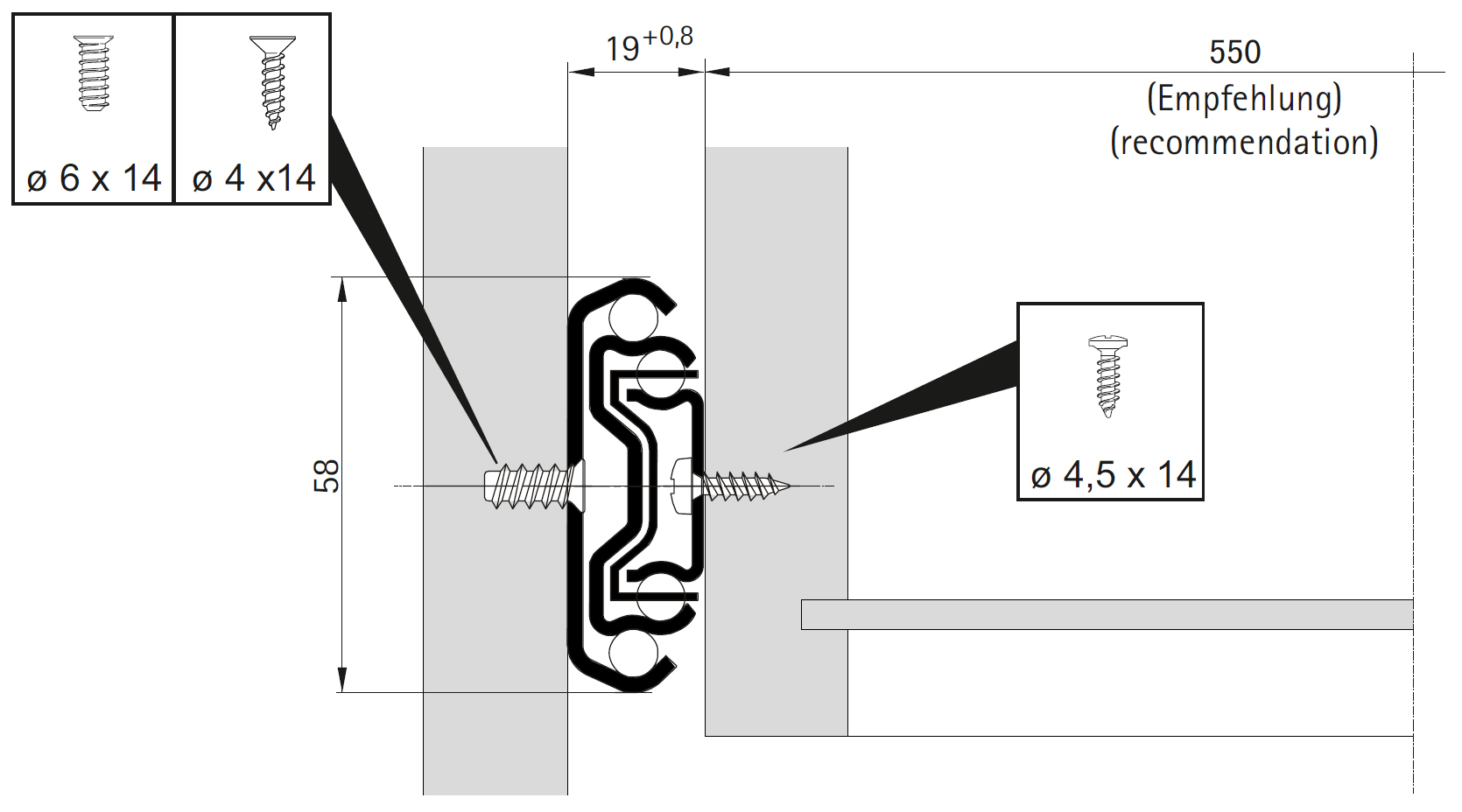

Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Length (mm) | 400 |
| Load capacity (kg) | 90 |
| Movement of extended drawer | Without damping |
| Type of extension guide | Full extension slide |
