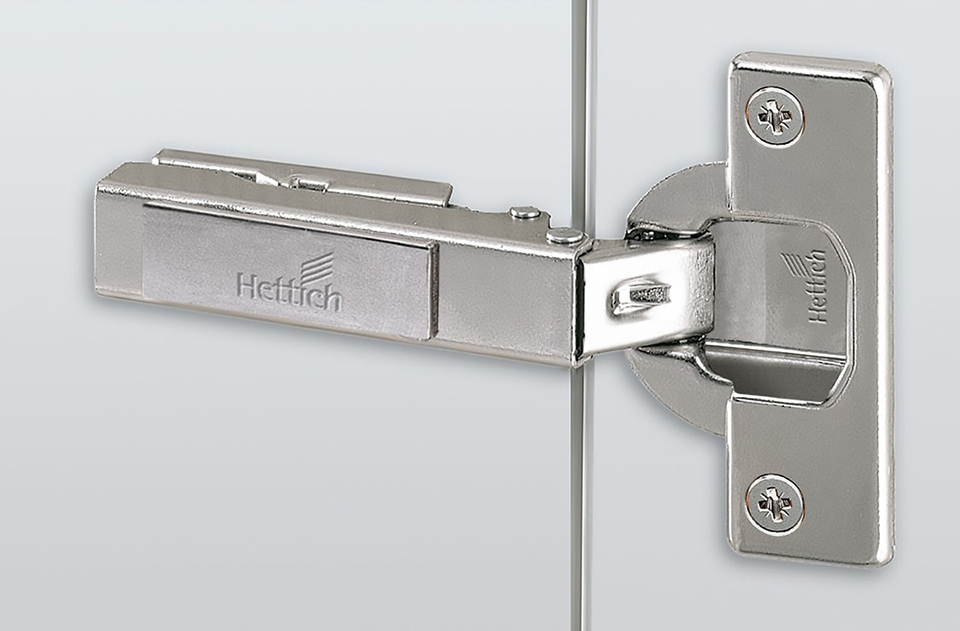

HETTICH 48053 Intermat 9943 T43 K0, loaded, for pressing
Product range code
104192
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

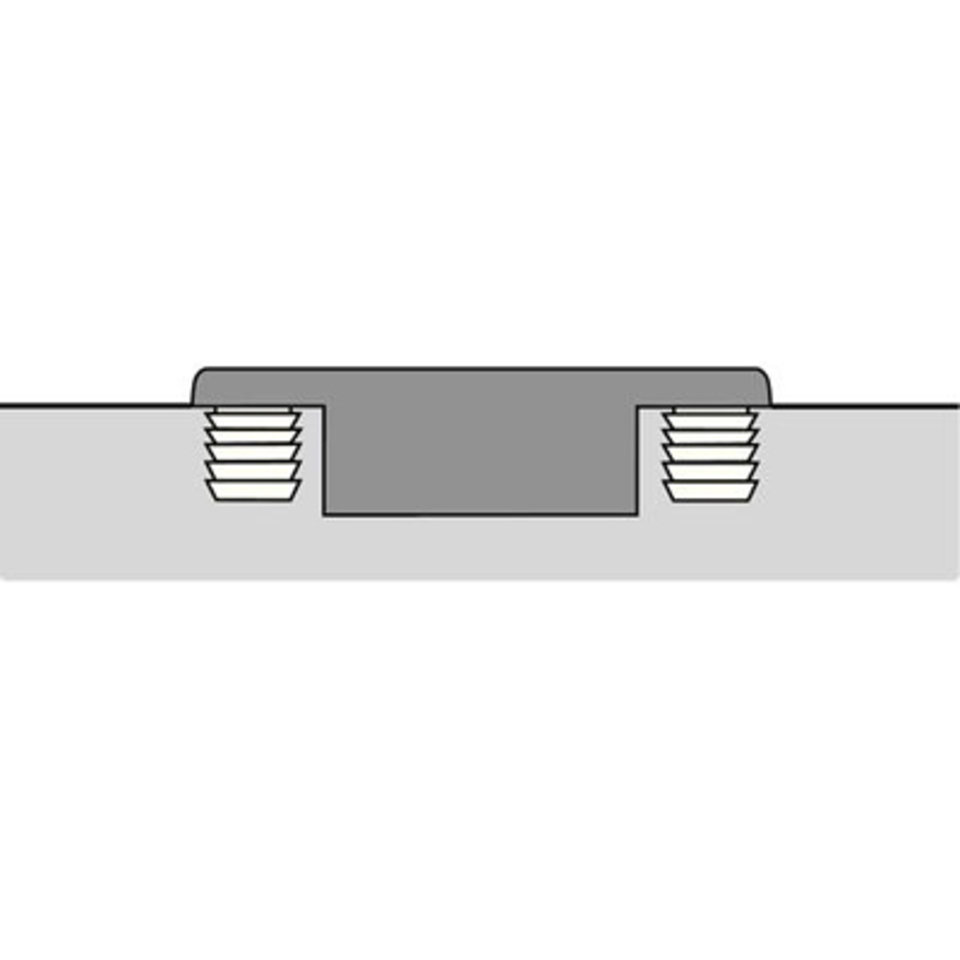

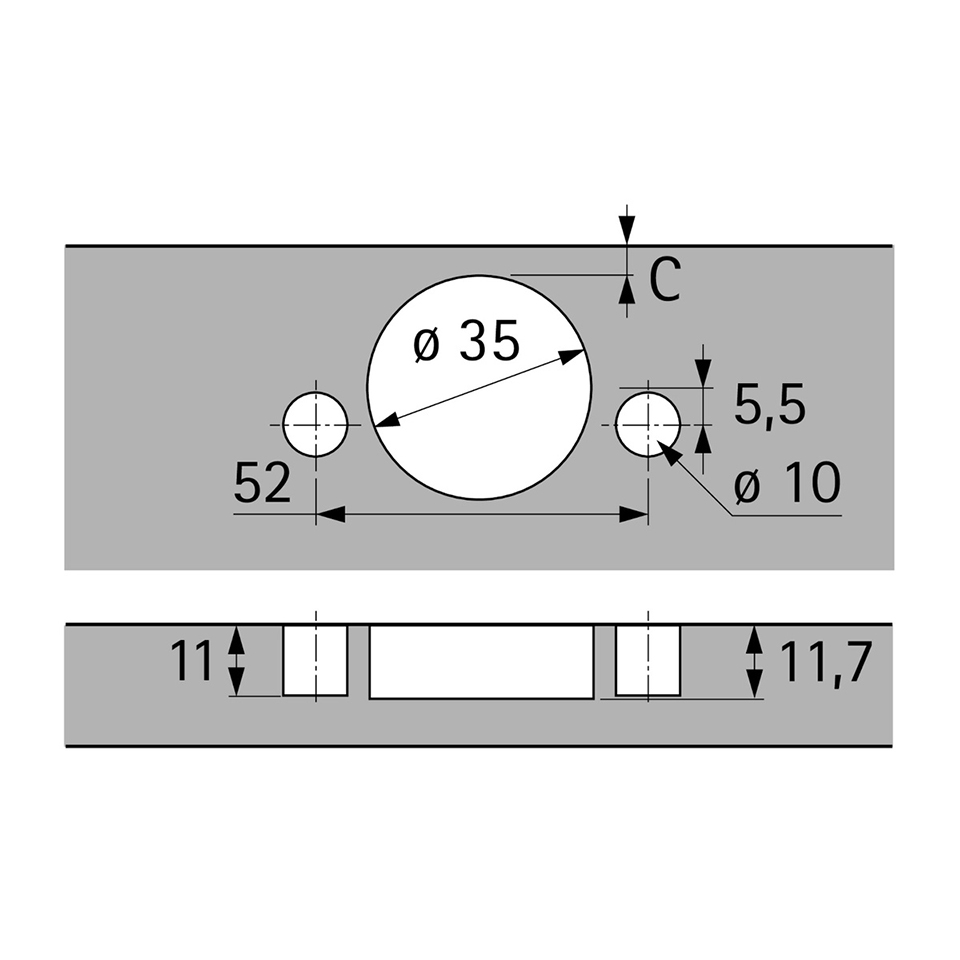

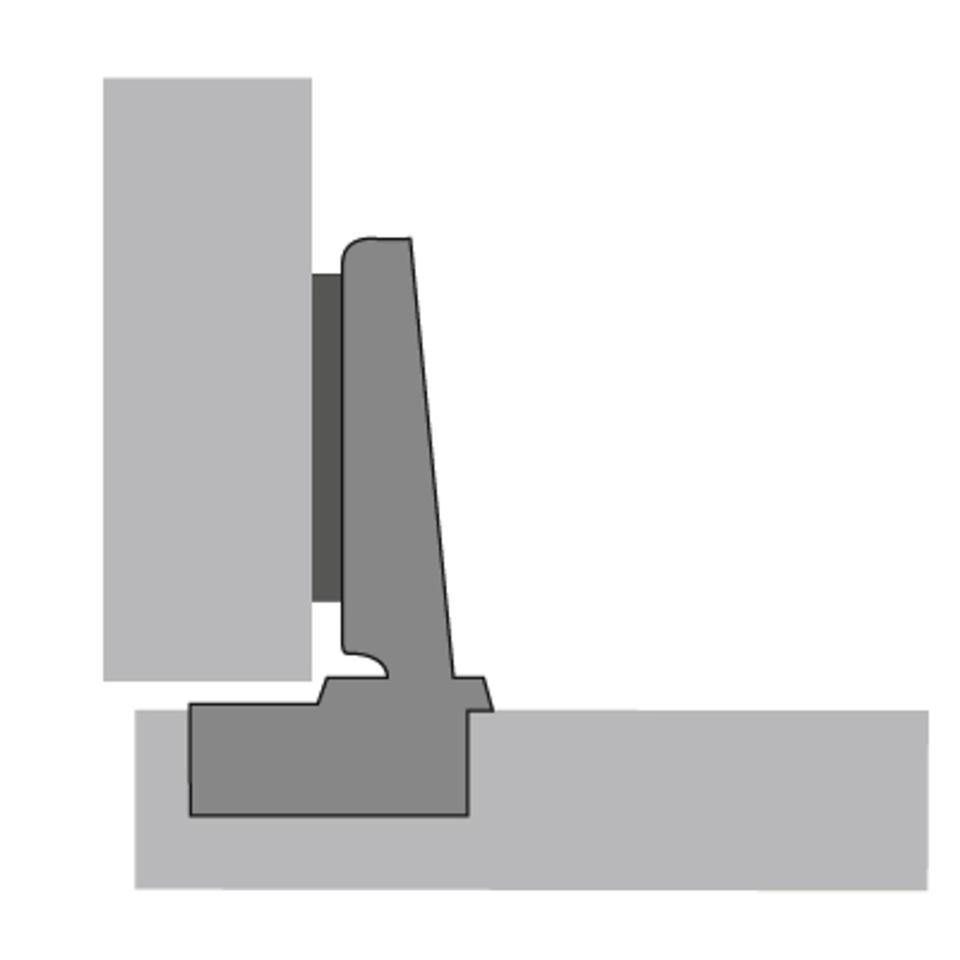

Hinge loaded with clip technique for pressing. Door thickness from 15 mm. Bowl diameter 35 mm. With a spring. Integrated loading adjustment + 1.0 mm / - 2.5 mm. Integrated depth adjustment using an eccentric +- 2 mm. Height adjustment will be helped by mounting pads +- 2 mm. Recommended washers: D1.5 screw 103757; D1.5 euro106369.
Parameters
| Parameter | Value |
|---|---|
| Mounting into material | Dowel |
| Mounting on washer | To jam |
