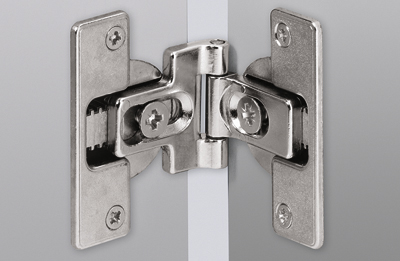

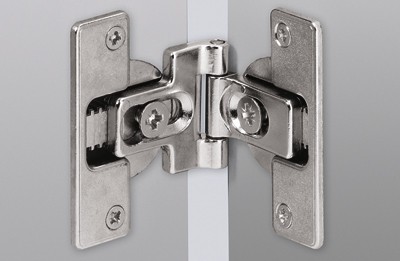

HETTICH 52095 Hinge for folding doors, adjustable
Product range code
184721
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
For crimping with pre-assembled bushings diameter 10 x 11 mm. With offset pin, to be screwed on, opening angle 180°, door thickness from 15 mm, the gap is continuously adjustable from hair to + 4 mm, the door wings are always in the same plane, the drilling is the same for both parts of the hinge that are installed separately.
Parameters
| Parameter | Value |
|---|---|
| Angle of opening | 180 |
| Mounting into material | Screw |
| Mounting on washer | For pressing in |
