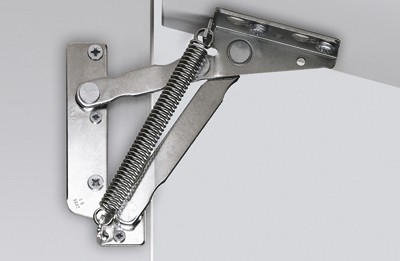

HETTICH 79397 Lift Junior 90 folding fittings
Product range code
108273
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

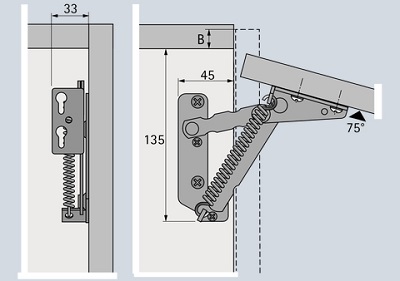

Set. Spring force 90 N. Opening angle 75°. Rational installation in pre-drilled holes. Maximum door weight 2 kg. Nickel-plated steel. The set includes: right and left hinged fittings.
Parameters
| Parameter | Value |
|---|---|
| Colour | Silver |
| Design | Mechanic |
| Height of body (mm) | 200 - 500 |
| Type of front side | Wood, wide alu frame |
