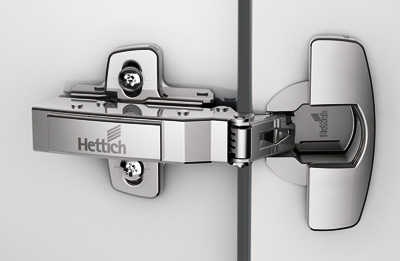

HETTICH 9071262 Sensys 8645 110° TH53
Product range code
232349
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

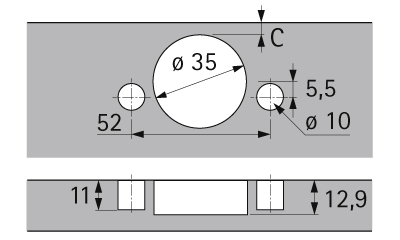

Clip-on cup hinge loaded WITHOUT damping, press fit, press fit. For door thicknesses of 15-22 mm. Bowl diameter 35 mm. With a spring. Load adjustment +- 2 mm, depth adjustment +3 mm / -2 mm, height adjustment using a mounting pad. Bowl and arm: nickel-plated steel. Recommended washers: D 1.5 for screw 106403 D 1.5 for euro 119240. Bowl cover no. 105408 and hanger cover no. 105425 are ordered separately.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|

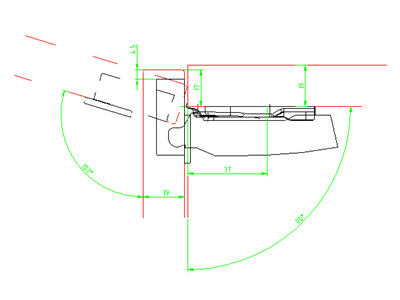

| Angle of opening | 110 |

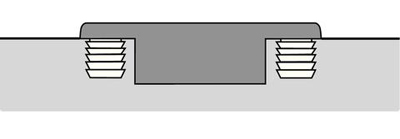

| Mounting into material | Dowel |
| Mounting on washer | To jam |
